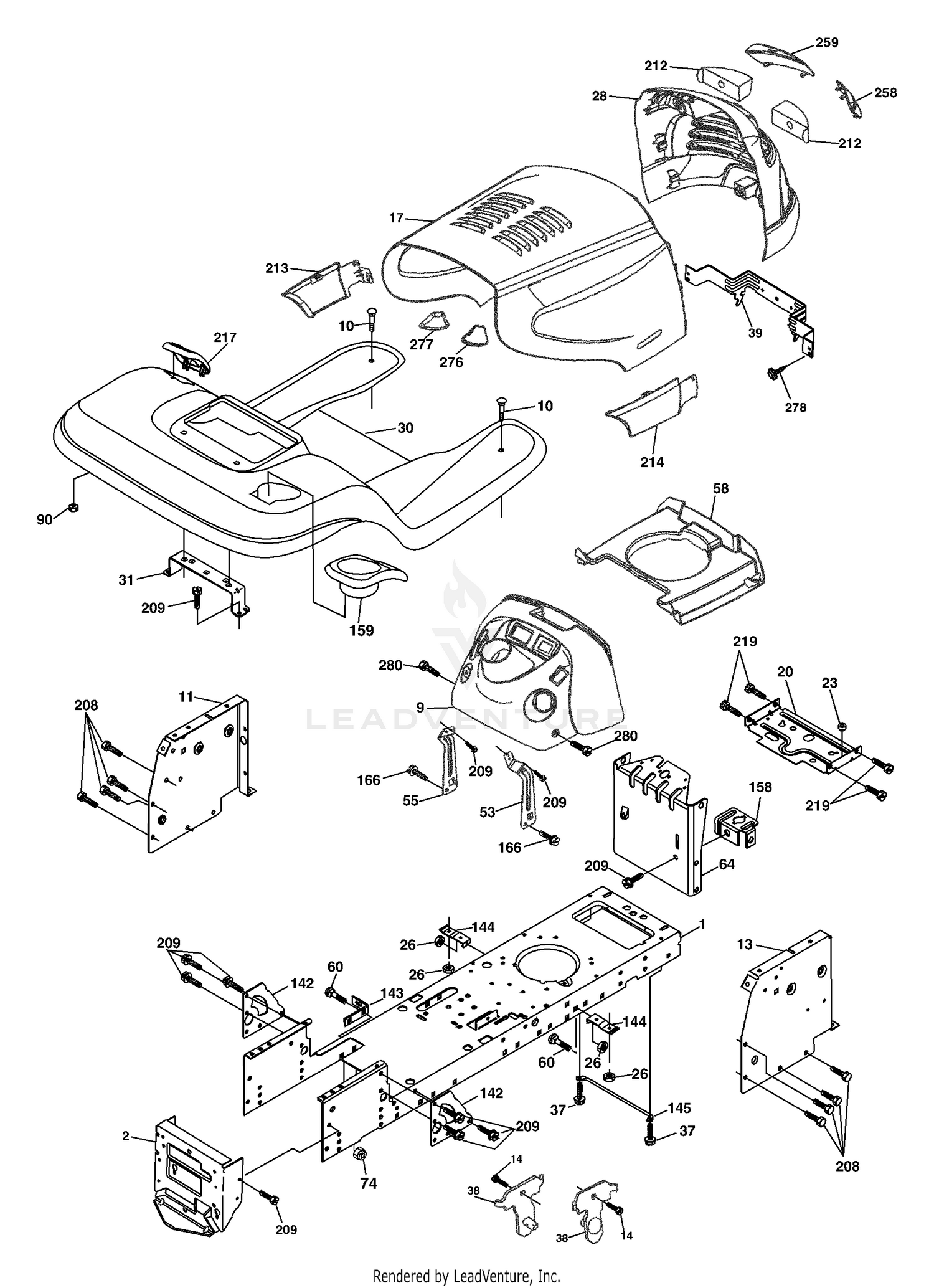

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 9 |
532193641 |
DASH This part replaces 532190251. Price: $47.99 |
| 9 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
24-9510 |
PIN Price: $77.49 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
61-3610 |
WARNING DECAL Price: $16.67 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 14 |
46-8840-01 |
SPRING-LIFT ARM This part replaces 46-8840. Price: $35.71 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 16 |
256-126 |
BUSHING Price: $9.36 |
| 17 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 17 |
532188374 |
HOOD.ELITE.HUSQ-STEEL This part replaces 532189977. Price: $89.99 |
| 18 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 19 |
324-4 |
SCREW-HH Price: $0.95 |
| 20 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK Price: $9.99 |
| 21 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 22 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 23 |
21-3750 |
SUPPORT PLT Price: $14.42 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 24 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 25 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 26 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
32128-42 |
NUT-HF Price: $0.98 |
| 28 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 29 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 30 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532185432. Price: $219.99 |
| 31 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 32 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 33 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 36 |
3-1365 |
CHAIN Price: $72.97 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 37 |
68-3270 |
BUMPER-RUBBER This part replaces 67-9800. Price: $37.99 |
| 38 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
5-2942 |
SHACKLE Price: $16.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 53 |
532188372 |
BRACKET DASH RH Price: $9.99 |
| 55 |
532188373 |
BRACKET DASH LH Price: $7.99 |
| 58 |
532151171 |
AIR DUCT This part replaces 532184463. Price: $46.99 |
| 60 |
872140606 |
Bolt RDHD SQNK 3/8-16 x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532185434. Price: $8.99 |
| 166 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532188267 |
INSERT LENS Price: $8.99 |
| 213 |
532188266 |
SKIRT.SIDE.ELITE.LH This part replaces 532189979. Price: $7.99 |
| 214 |
532188265 |
SKIRT.SIDE.ELITE.RH.GREY This part replaces 532189978. Price: $7.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 219 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 258 |
532188263 |
LENS ELITE CLEAR RH This part replaces 532189981. Price: $14.99 |
| 259 |
532188264 |
LENS.ELITE.HUSQ.CLEAR.LH This part replaces 532189982. Price: $14.99 |
| 276 |
532189274 |
BUMPER HOOD RH Price: $7.99 |
| 277 |
532189275 |
BUMPER HOOD LH Price: $5.99 |
| 278 |
596321701 |
Screws This part replaces 532189585. Price: $2.99 |
