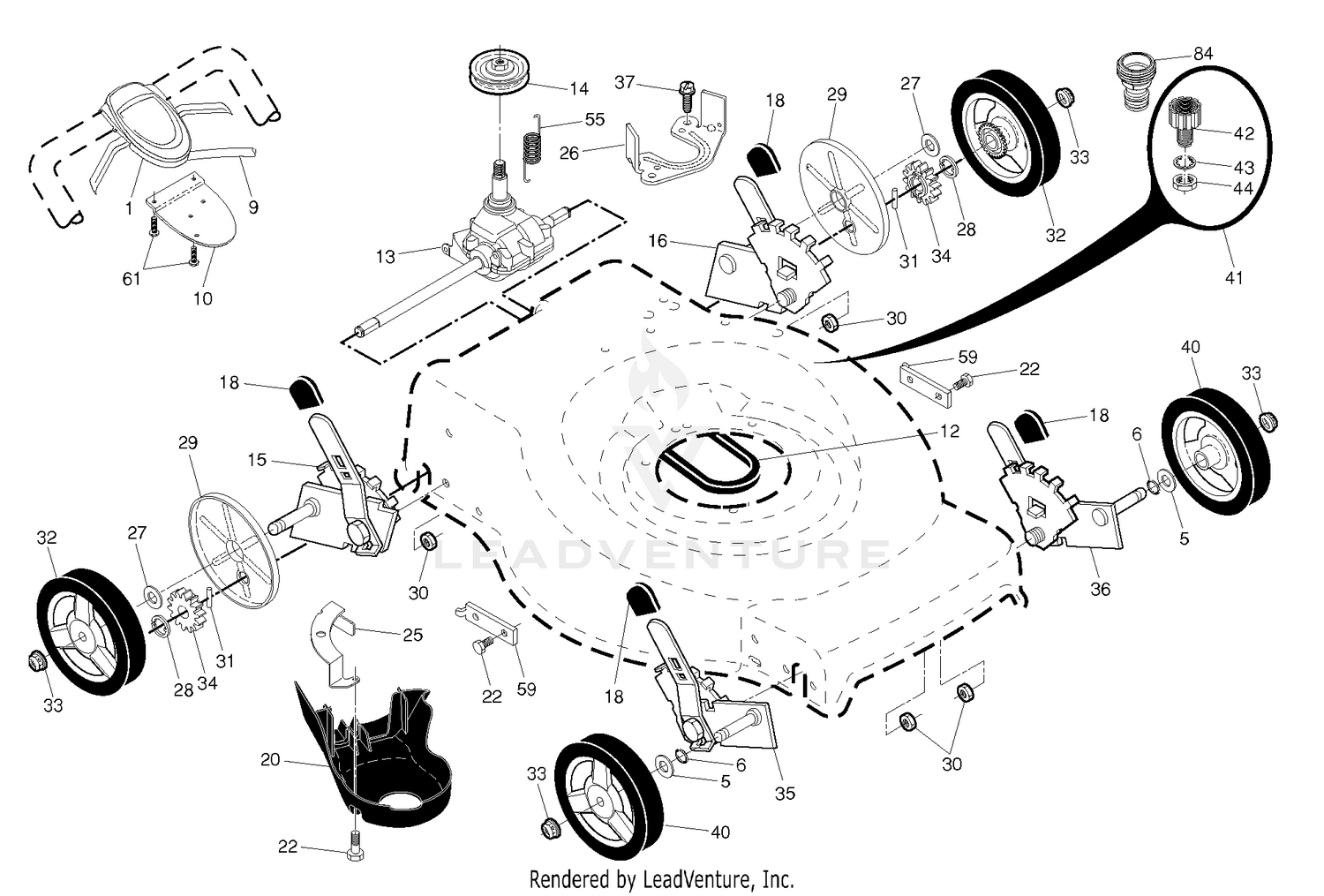

| Ref | Part Number | Description |
|---|
| 1 |
106-1094 |
KIT - RING & PINION This part replaces 100-2555. Price: $1,064.67 |
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 532430995. Price: $39.99 |
| 2 |
99-7570 |
BEARING-ROLLER, TAPER Price: $61.91 |
| 3 |
95-7534 |
CASE-BEARING Price: $176.21 |
| 4 |
106-1065 |
O-RING This part replaces 99-7571. Price: $9.02 |
| 5 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 5 |
99-7572 |
COLLAR-SEAL, OIL Price: $21.01 |
| 6 |
106-1066 |
O-RING This part replaces 99-7573. Price: $5.71 |
| 6 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 7 |
99-7574 |
SEAL-OIL Price: $4.42 |
| 8 |
99-7559 |
WASHER-LOCK Price: $9.82 |
| 9 |
532431650 |
CABLE.CONTROL.22RGD.GEN2 Price: $37.99 |
| 9 |
99-7560 |
NUT-LOCK Price: $27.76 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 10 |
99-7550 |
SHIM 0.1 Price: $4.34 |
| 11 |
95-7533 |
CASE-GEAR Price: $289.33 |
| 12 |
532421527 |
BELT.DRIVE.RGD.PLUS Price: $22.99 |
| 12 |
99-7575 |
BOLT Price: $4.00 |
| 13 |
581680801 |
TRANSMISSION.22+AWD.WALK.MOWER This part replaces 532434564. Price: $129.99 |
| 13 |
98-7735 |
STUD This part replaces 100-2556. Price: $1.36 |
| 14 |
532194128 |
PULLEY Price: $17.99 |
| 14 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 This part replaces 532427023. Price: $19.99 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
589318302 |
BRACKET.TRANS.BELTKEEP.21 RWD This part replaces 532426066. Price: $2.99 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 30 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
532442856 |
KIT.WHEEL.442789X460.8" This part replaces 532442823. Price: $49.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 40 |
532442822 |
WHEEL.8IN.H3SPK.ALPHA. Price: $9.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 55 |
532406558 |
SPRING Price: $6.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 84 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
