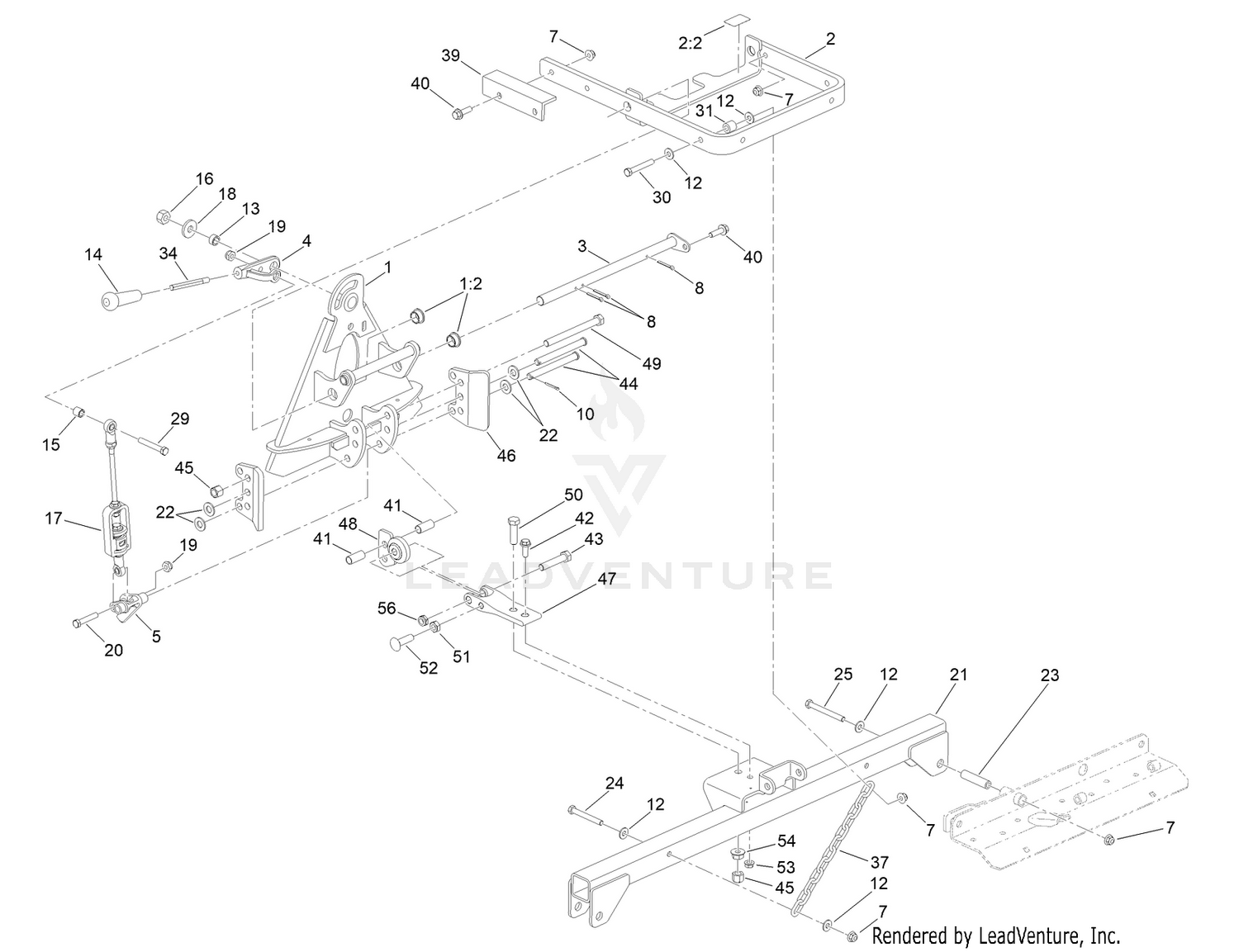

Lift Arm and Hanger Assembly
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-1403 | ADAPTER ASM Price: $437.59 |
| 2 | 130-7823 | ARM-LIFT Price: $286.60 |
| 3 | 110-3362 | BAR-PIVOT Price: $71.83 |
| 4 | 112-7695-03 | HANDLE Price: $53.91 |
| 5 | 112-7686 | LATCH Price: $40.54 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 8 | 3272-17 | PIN-COTTER Price: $1.79 |
| 10 | 3272-11 | PIN-COTTER Price: $0.99 |
| 12 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 13 | 112-0038 | SPACER Price: $7.34 |
| 14 | 99-7984 | KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 15 | 75-5270 | SPACER-KNOB, SEAT Price: $4.61 |
| 16 | 3296-25 | NUT-LOCK, NI Price: $1.34 |
| 17 | 144-7093 | LINK ASM Price: $105.96 |
| 18 | 92-2651 | WASHER Price: $1.83 |
| 19 | 3296-44 | NUT-LOCK, NI Price: $2.46 |
| 20 | 323-10 | SCREW-HH Price: $0.89 |
| 21 | 132-4389 | HANGER Price: $129.61 |
| 22 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 23 | 84-2350 | SPACER-LONG Price: $10.04 |
| 24 | 323-14 | SCREW-HH Price: $1.34 |
| 25 | 323-15 | SCREW-HH Price: $1.53 |
| 29 | 323-12 | SCREW-HH Price: $1.14 |
| 30 | 323-47 | SCREW-HH Price: $1.22 |
| 31 | 121-1760 | SPACER Price: $1.45 |
| 34 | 114-4320 | ROD-HANDLE Price: $9.07 |
| 37 | 110-1364 | CHAIN-PROOF, 12 LINK Price: $8.22 |
| 39 | 115-2090 | PAD-WEAR Price: $43.56 |
| 40 | 3234-24 | SCREW-HHF Price: $3.19 |
| 41 | 138-2227 | SPACER Price: $5.66 |
| 42 | 66-9300 | SCREW-HHF Price: $4.69 |
| 43 | 325-10 | SCREW-HH Price: $1.82 |
| 44 | 100-5024 | PIN-CLEVIS Price: $7.44 |
| 45 | 119-8969 | NUT-HEX Price: $1.29 |
| 46 | 120-3499-03 | BRACKET-STOP This part replaces 120-3499. Price: $23.48 |
| 47 | 147-3560 | DRAWBAR-RAKE Price: $24.69 |
| 48 | 138-2228 | HITCH-BALL Price: $56.22 |
| 49 | 325-22 | SCREW-HH Price: $4.26 |
| 50 | 325-7 | SCREW-HH Price: $1.53 |
| 51 | 3218-5 | NUT-JAM Price: $0.27 |
| 52 | 3233-14 | SCREW-CARR Price: $1.95 |
| 53 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 54 | 32128-49 | NUT-HHF Price: $1.04 |
