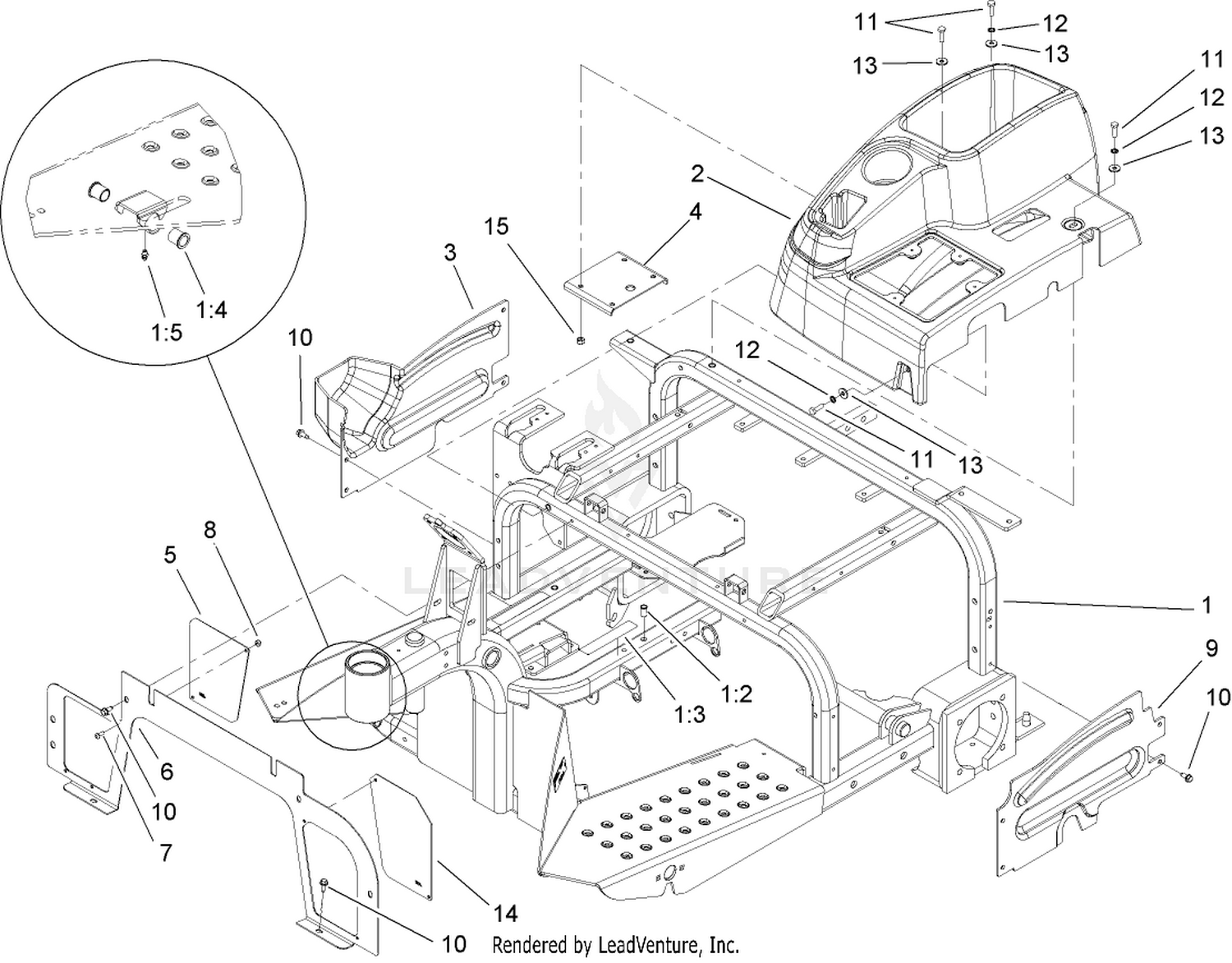

| Ref | Part Number | Description |
|---|
| 1 |
110-3367 |
FRAME ASM Price: $4,732.29 |
| 2 |
108-2936 |
CONSOLE Price: $301.59 |
| 3 |
108-6855 |
SHROUD-WHEEL, RH Price: $136.32 |
| 4 |
108-7995-03 |
PLATE-SUPPORT, CONSOLE Price: $21.76 |
| 5 |
120-3492-01 |
SCREEN-PANEL, RH This part replaces 108-6854-01. Price: $51.19 |
| 6 |
112-1443-01 |
PANEL-FRONT Price: $123.71 |
| 7 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 8 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 9 |
108-6856 |
SHROUD-WHEEL, LH Price: $136.32 |
| 10 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 11 |
321-5 |
SCREW-HH Price: $0.22 |
| 12 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 13 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 14 |
120-3491-01 |
SCREEN-PANEL, LH This part replaces 108-7907-01. Price: $51.19 |
