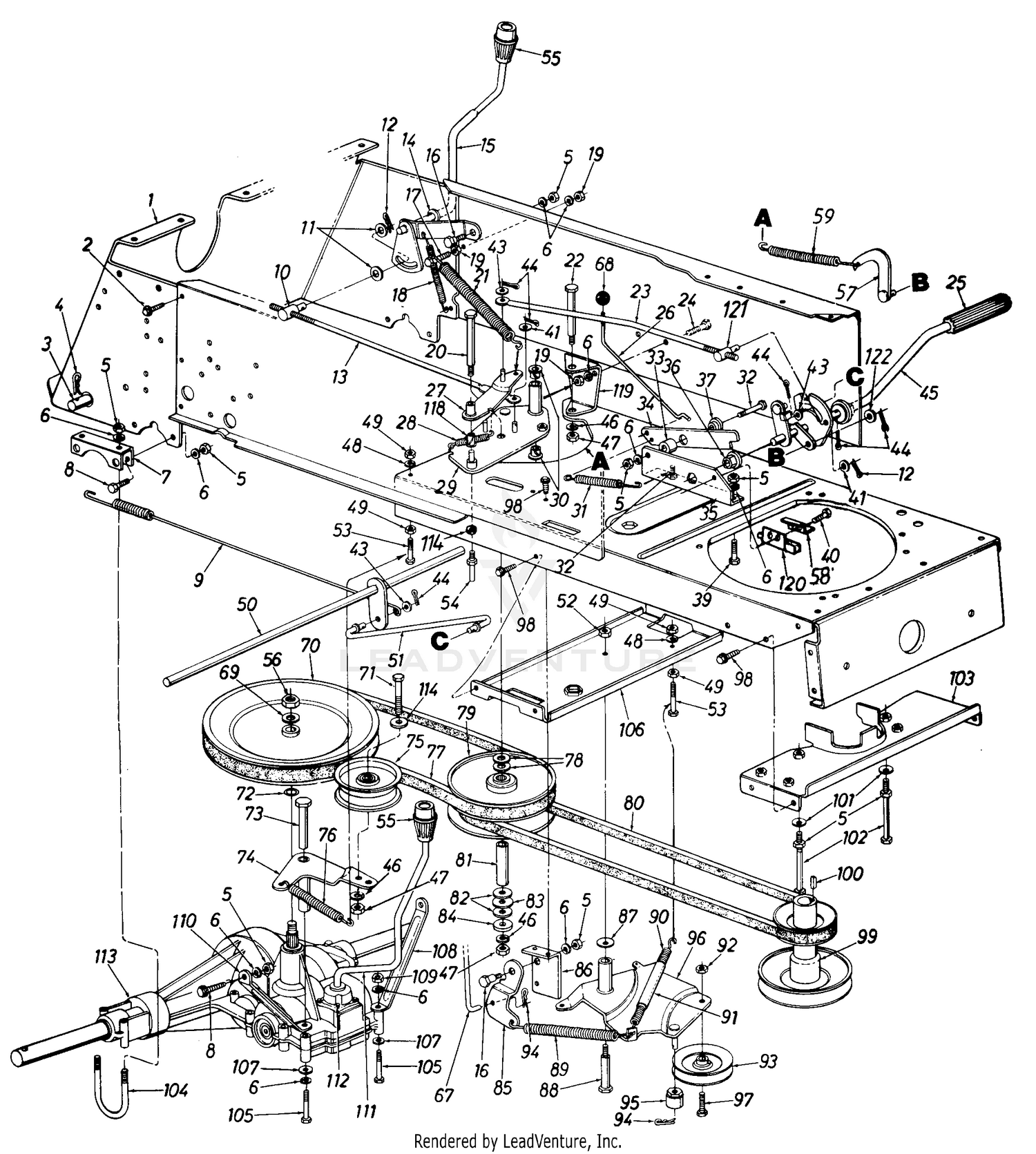

| Ref | Part Number | Description |
|---|
| 1 |
17343 |
HITCH PLATE Not Available Price: |
| 2 |
710-0726 |
Hex AB-Tap Scr. 5/16" x .75" Price: $3.82 |
| 3 |
738-0482 |
HITCH ROD Not Available Price: |
| 4 |
714-0147 |
Hitch Pin Clip Price: $4.20 |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 6 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 7 |
17340 |
TRANSAXLE BRACKET Not Available Price: |
| 8 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 9 |
732-0601 |
EXTENSION SPRING Not Available Price: |
| 10 |
911-0723A |
FERRULE 3/8-24 x .375 x 1.31 LG Not Available This part replaces 711-0723A. Price: |
| 11 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 12 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 14 |
736-0192 |
Fl-Wash. .531" I.D. x .94" Price: $3.75 |
| 15 |
753-0840 |
KIT-SPEED SELECTOR Not Available This part replaces 16906. Price: |
| 16 |
938-0155 |
Shoulder Bolt This part replaces 738-0155. Price: $6.01 |
| 17 |
710-0672 |
Hex Bolt 5/16-24 x 1.25" Lg. Price: $3.85 |
| 18 |
932-0429A |
Extension Spring 3.97" Lg. This part replaces 732-0429A. Price: $8.29 |
| 19 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-3057. Price: $5.94 |
| 20 |
710-0620 |
Hex Bolt 3/8-24 x 4.5" Lg. Price: $10.47 |
| 21 |
732-0603 |
EXTENSION SPRING Not Available Price: |
| 22 |
738-0779 |
SHOULDER SCREW .625 x 3.50:3/8-2 Not Available Price: |
| 24 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 25 |
735-0239A |
FOOT PAD This part replaces 735-0196. Price: $10.76 |
| 26 |
747-0722 |
PARKING BRAKE LINK Not Available Price: |
| 27 |
17914 |
BRACKET Not Available Price: |
| 28 |
732-0568 |
EXTENSION SPRING Not Available Price: |
| 29 |
17908 |
Pulley Plate Ass'y. Price: Call Us |
| 30 |
741-0591 |
Flanged Brg. .630" I.D. Price: $4.02 |
| 31 |
932-0395 |
EXTENSION SPRING Not Available This part replaces 7320395. Price: |
| 32 |
710-0528 |
Hex Bolt 5/16-18 x 1.25" Lg.* Price: $3.90 |
| 33 |
750-0214 |
SPACER Not Available Price: |
| 34 |
16980 |
BRACKET-LOCKOUT Not Available Price: |
| 35 |
16924A |
MOUNTING BRACKET Not Available Price: |
| 36 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 37 |
748-0234 |
Shld. Spacer .5" Dia. Price: $3.86 |
| 39 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76 |
| 40 |
710-0651 |
Hex Tap Scr. #10-32 x 5/8 Lg. Price: $3.15 |
| 41 |
736-0185 |
Fl-Wash. .406" I.D. x .75" O.D. Price: $3.43 |
| 43 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 44 |
714-0111 |
Cotter Pin 3/32" Dia. Price: $4.20 |
| 45 |
17910 |
FOOT PEDAL ASS'Y. Not Available Price: |
| 46 |
736-0169 |
L-Wash. 3/8" I.D.* Price: $3.33 |
| 47 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 48 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 49 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 50 |
17349 |
BRACKET-BR Not Available Price: |
| 51 |
747-0724A |
BRAKE ROD LINK Not Available This part replaces 747-0724. Price: |
| 52 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 53 |
710-0501 |
Hex Bolt 1/4-20 x 2.0" Lg. Price: $6.24 |
| 54 |
711-0828 |
Belt Guard Pin Price: Call Us |
| 55 |
720-0218 |
Shift Knob Price: $17.27 |
| 56 |
712-3035 |
HEX JAM NUT 9/16-18 GR5 Price: $6.01 |
| 57 |
17912 |
BRACKET AS Not Available Price: |
| 58 |
17962 |
Switch Plate Price: $4.36 |
| 59 |
732-0698 |
EXTENSION SPRING Not Available Price: |
| 68 |
720-0166 |
THROTTLE KNOB Not Available Price: |
| 69 |
936-0427 |
BELL WASHER Not Available This part replaces 736-0427. Price: |
| 70 |
756-0534 |
PULLEY Not Available Price: |
| 71 |
710-0539 |
Hex Bolt 3/8-24 x 1.75" Lg. Price: $3.95 |
| 72 |
732-0614 |
Wire Ring Price: $5.37 |
| 73 |
738-0769 |
SHOULDER SCREW Not Available Price: |
| 74 |
16904 |
BRACKET ASSEMBLY Not Available Price: |
| 75 |
756-0542 |
Flat Idler 3.5" O.D. Price: $69.10 |
| 76 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 77 |
954-0362 |
V-Belt This part replaces 754-0362. Price: $50.31 |
| 78 |
736-0414 |
Teflon Washer 1.20" O.D. Price: $3.82 |
| 79 |
917-0945 |
Variable Speed Pulley 6" Dia. This part replaces 717-0945. Price: $265.86 |
| 80 |
954-0358 |
V-Belt This part replaces 754-0358. Price: $56.98 |
| 81 |
738-0778 |
PIVOT BUSHING Not Available Price: |
| 82 |
736-0355 |
Fl-Wash. .56" I.D. x 1.0" O.D. Not Available Price: |
| 83 |
741-0805 |
Thrust Brg. .56" I.D. x 1.25" Price: Call Us |
| 84 |
17485 |
Retainer Cup Price: $7.29 |
| 85 |
13887A |
BRACKET-DECK CONTROL Not Available This part replaces 13887. Price: |
| 86 |
13833 |
PARKING BRAKE CAM MTG. BRKT. Not Available Price: |
| 87 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 88 |
738-0129 |
Shld. Bolt .498" Dia. x 2.05" Price: $9.86 |
| 89 |
932-0478 |
Spring, Extension This part replaces 732-0478. Price: $11.56 |
| 90 |
732-0308A |
Spring, Extension, .50 Dia. x 6.37 This part replaces 732-0308. Price: $10.50 |
| 91 |
731-0757-4 |
CONVOLUTED CONDUIT Not Available This part replaces 731-0483. Price: |
| 92 |
712-0214 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $5.94 |
| 93 |
756-0487 |
Idler Pulley This part replaces 756-0293A. Price: $45.43 |
| 94 |
714-0104 |
Internal Cotter Pin Price: $3.90 |
| 95 |
948-0278 |
Spacer This part replaces 748-0278. Price: $10.29 |
| 96 |
94076A-0637 |
IDLER BRACKET ASSEMBLY Not Available This part replaces 14076A. Price: |
| 97 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 98 |
710-0599 |
Hex TT-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 99 |
756-0531 |
PULLEY Not Available Price: |
| 100 |
714-0118 |
Sq. Key 1/4 x 1.5" Lg. Price: $6.06 |
| 101 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 102 |
710-0833 |
Hex Bolt 5/16-18 x 5.25" Lg. Price: $8.31 |
| 103 |
17358D-0637 |
BRACKET-BELT GUARD Not Available This part replaces 17358C. Price: |
| 104 |
711-0829 |
U-BOLT Not Available Price: |
| 105 |
710-0593 |
HEX SCREW 5/16-24 x 2.25 Not Available Price: |
| 106 |
16888A-0637 |
IDLER BRACKET Not Available This part replaces 16888. Price: |
| 107 |
736-0264 |
Fl-Wash. .344" I.D. x .62" O.D. Price: $5.99 |
| 108 |
16979 |
Front Trans. Support Brkt.-L.H. Price: Call Us |
| 109 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 110 |
16978 |
Front Trans. Support Brkt.-R.H. Price: Call Us |
| 111 |
717-0985 |
SHIFT LEVER ASS'Y. COMPLETE Not Available Price: |
| 112 |
710-1048 |
SCREW-SOC CAP Not Available Price: |
| 113 |
717-1150 |
KIT-TRANSAXLE 2S Not Available Price: |
| 114 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.0" O.D. Price: $3.93 |
| 118 |
741-0419 |
FLANGE BEARING Not Available Price: |
| 119 |
17180 |
BRACKET SUPPORT Not Available Price: |
| 121 |
911-0832 |
Ferrule 3/8-24 Thd. This part replaces 711-0832. Price: $13.68 |
