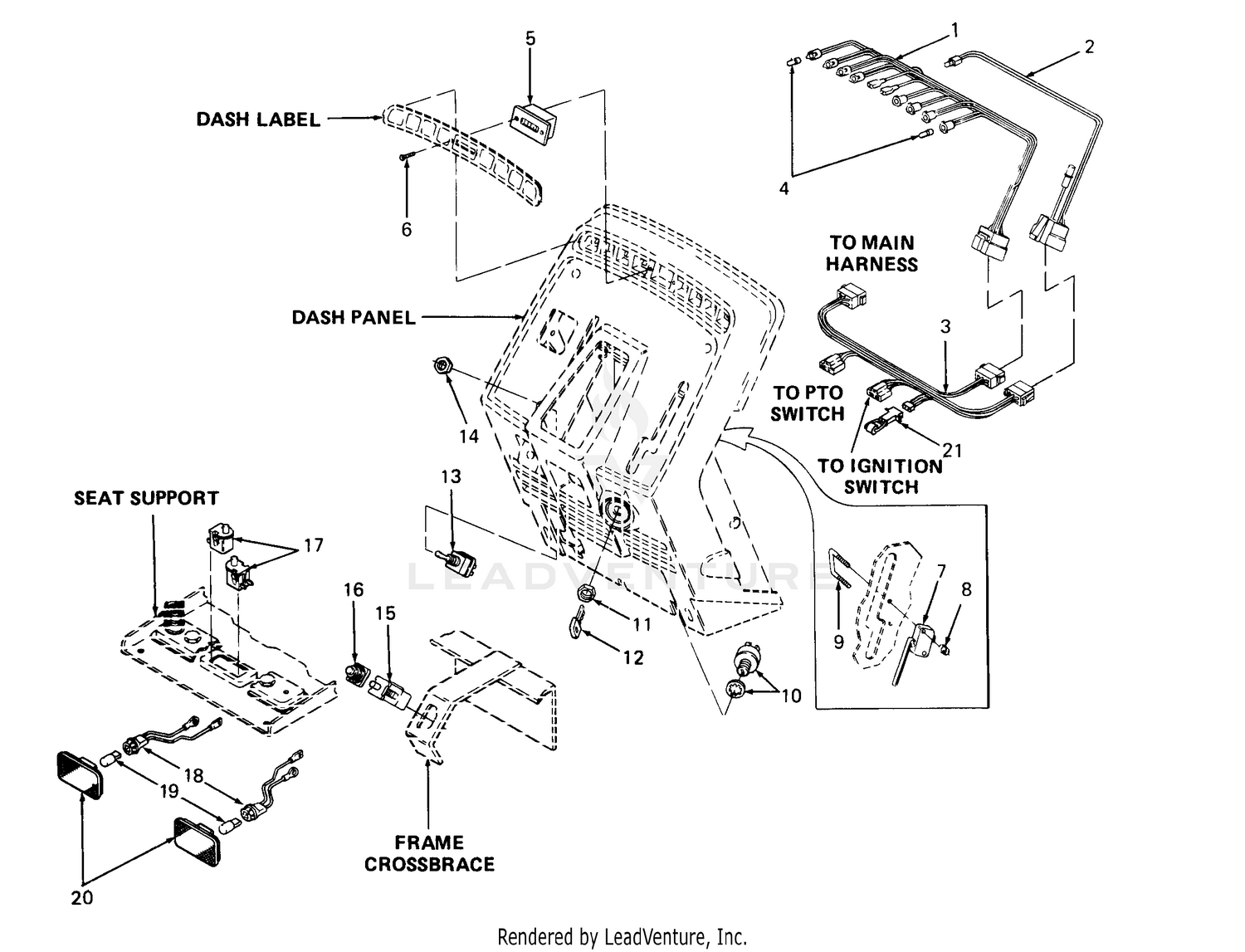

| Ref | Part Number | Description |
|---|
| 1 |
725-3185 |
HARNESS-INDICATOR Not Available Price: |
| 1 |
92-7638 |
HOSE ASM Price: $131.75 |
| 2 |
92-7648 |
TUBE ASM Price: $151.56 |
| 3 |
102377801 |
Hose, Coolant Lower Pipe Price: Call Us |
| 3 |
340-161 |
FITTING-BULKHEAD Price: $72.14 |
| 3 |
725-3205 |
HARNESS-PEDESTAL Not Available Price: |
| 4 |
102377901 |
Hose, Coolant Lower Rad Price: Call Us |
| 4 |
340-154 |
UNION-BULKHEAD Price: $44.48 |
| 4 |
925-1365 |
Bulb, Indicator This part replaces 725-1365. Price: $9.56 |
| 5 |
102380301 |
Tee, Coolant Fill Price: Call Us |
| 5 |
92-7584 |
TUBE ASM Price: $116.82 |
| 5 |
925-3159 |
HOUR METER Not Available This part replaces 725-3159. Price: |
| 6 |
32104-37 |
SCREW-HWH, THREAD CUT Price: $3.26 |
| 6 |
710-0936 |
SCREW #6-20 x .625 Not Available Price: |
| 7 |
102737301 |
Cap, Radiator Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
725-3066 |
SWITCH Not Available Price: |
| 8 |
102737401 |
Drain Cock, Radiator Price: Call Us |
| 8 |
56-7972 |
CLAMP-TUBE Price: $13.55 |
| 8 |
712-3052 |
LOCK NUT #4-40 Not Available Price: |
| 9 |
102411207 |
Clamp, Hose, Ctb 35mm Price: Call Us |
| 9 |
711-3259 |
SCREW-SWITCH Not Available Price: |
| 9 |
80-8660 |
SPACER-COUPLER Price: $49.67 |
| 10 |
102411208 |
Clamp, Hose, Ctb 38mm Price: Call Us |
| 10 |
237-22 |
O-RING Price: $2.43 |
| 10 |
925-3163 |
Switch, Ignition This part replaces 725-3163. Price: $44.93 |
| 11 |
102411301 |
Nut, Self Retaining Price: Call Us |
| 11 |
340-70 |
NUT-LOCK Price: $2.10 |
| 11 |
712-3013 |
NUT-IGNITION SWITCH Not Available Price: |
| 12 |
102436701 |
Fan, Cooling 12 In Elect Price: Call Us |
| 12 |
92-7647 |
DRAIN TUBE ASM Price: $104.40 |
| 12 |
925-0201 |
Key This part replaces 759-3476A. Price: $8.70 |
| 13 |
102490301 |
Bolt, M6 X 1 X 16 Loctite Price: Call Us |
| 13 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 13 |
925-0893 |
Switch, PTO This part replaces 725-0893. Price: $72.43 |
| 14 |
102685001 |
Isolator, Twin-Stud Price: Call Us |
| 14 |
712-3014 |
HEX NUT 1/2-27 x .100 THK Not Available Price: |
| 14 |
94-1402 |
PLUG-HOLE Price: $1.54 |
| 15 |
102855501 |
Shroud, Radiator Fan Price: Call Us |
| 15 |
925-3191A |
Switch, Plunger This part replaces 725-3191. Price: $47.64 |
| 15 |
93-4205 |
DRAIN TUBE ASM Price: $60.02 |
| 15 |
93-4206 |
DRAIN TUBE ASM Price: $42.69 |
| 16 |
69-8930 |
WASHER Price: $0.81 |
| 16 |
735-3036 |
BOOT-SWITCH Not Available Price: |
| 17 |
240-5 |
GROMMET Price: $13.66 |
| 17 |
925-3167 |
Switch, Snap Mount Normally Open (Black) This part replaces 725-3167. Price: $13.53 |
| 18 |
69-8960 |
SPACER Price: $5.29 |
| 18 |
725-3019 |
CABLE ASSEMBLY-TAIL LAMP Not Available Price: |
| 19 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 19 |
725-3020 |
BULB Not Available Price: |
| 20 |
105-7903 |
HYD HOSE ASM This part replaces 92-7649. Price: $174.38 |
| 20 |
725-3018 |
Lens Assy, Tail Light Price: Call Us |
| 21 |
99-5614 |
HYD HOSE ASM This part replaces 93-4201. Price: $103.23 |
| 22 |
92-7585 |
TUBE ASM Price: $92.13 |
| 23 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 24 |
354-79 |
CAP-DUST Price: $7.81 |
| 25 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 26 |
237-78 |
O-RING Price: $3.85 |
| 27 |
237-79 |
O-RING Price: $5.46 |
| 28 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 29 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 30 |
237-30 |
O-RING Price: $2.50 |
| 31 |
237-81 |
O-RING Price: $2.76 |
| 32 |
340-148 |
FITTING-TEE Price: $186.40 |
| 33 |
237-58 |
O-RING Price: $2.18 |
| 34 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 36 |
92-7558 |
DISCONTINUED Price: Call Us |
| 37 |
92-7639 |
DISCONTINUED Price: Call Us |
| 38 |
94-1403 |
FITTING-STR Price: $40.90 |
| 39 |
237-21 |
O-RING Price: $0.70 |
| 40 |
92-7557 |
FRONT COOLER TUBE ASM Price: $71.65 |
| 41 |
92-7492 |
DISCONTINUED Price: Call Us |
| 42 |
92-7419 |
CEC REAR MANIFOLD BLOCK Price: $3,193.79 |
| 43 |
92-7591 |
DISCONTINUED Price: Call Us |
| 44 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 45 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 46 |
322-6 |
SCREW-HH Price: $0.45 |
| 47 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 48 |
92-7494 |
REAR STEARING TUBE ASM Price: $150.03 |
| 49 |
92-7495 |
STEERING TUBE ASM Price: $148.27 |
| 50 |
92-7598 |
FRONT DRAIN TUBE ASM Price: $103.39 |
| 51 |
92-7553 |
TUBE-REAR DRAIN Price: $174.40 |
| 52 |
237-42 |
O-RING Price: $2.78 |
| 53 |
94-2834-03 |
BRACKET-CLAMP This part replaces 94-2834. Price: $27.29 |
| 54 |
323-6 |
SCREW-HH Price: $0.66 |
| 55 |
32128-21 |
NUT-HF Price: $0.39 |
