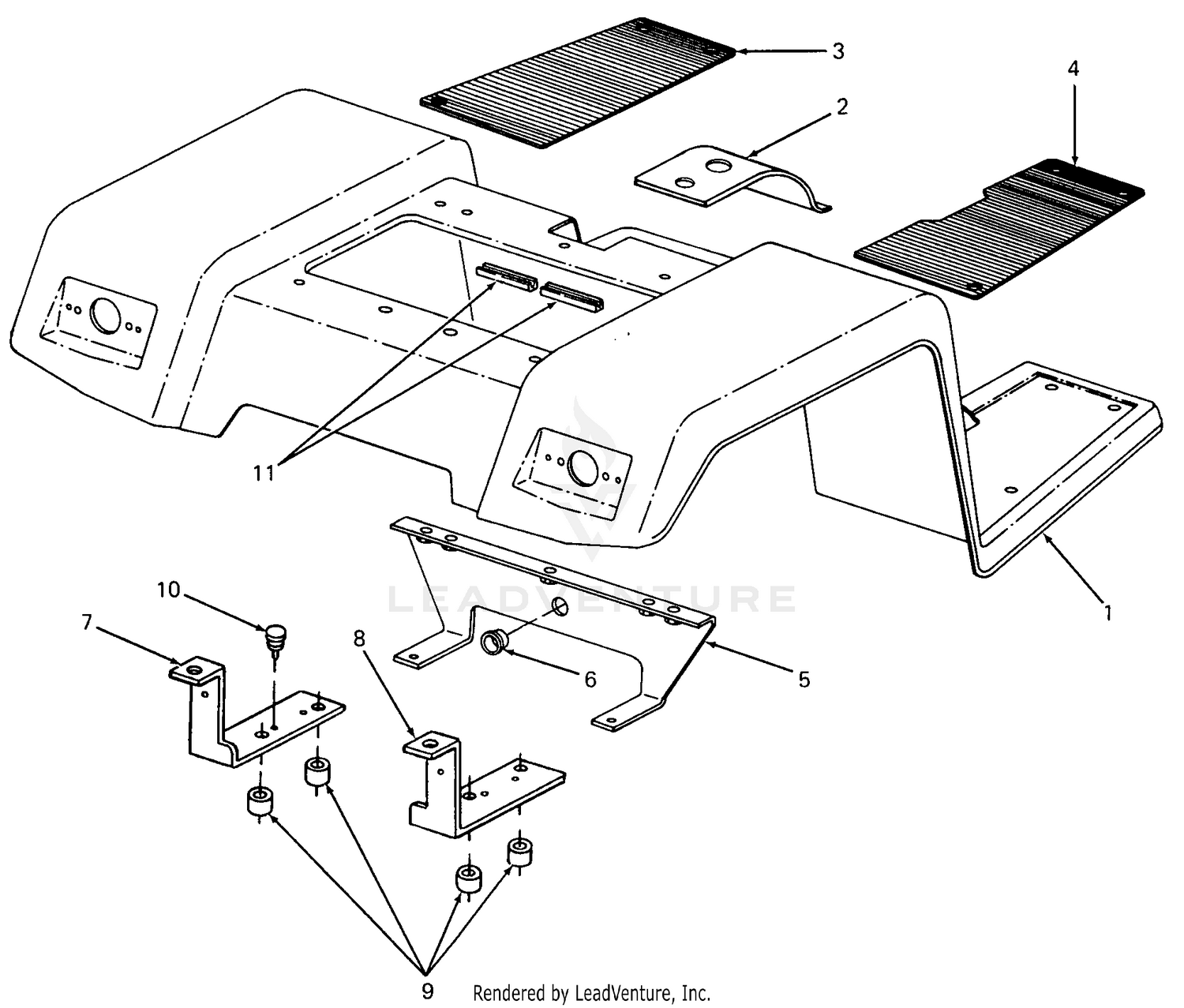

| Ref | Part Number | Description |
|---|
| 1 |
532138402 |
BUMPER Price: $62.99 |
| 1 |
703-0064 |
FENDER Not Available Price: |
| 2 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 2 |
703-1042 |
COVER-CENTER Not Available Price: |
| 3 |
723-3006 |
Pad, LH - Foot Price: $29.34 |
| 4 |
723-3007 |
FOOT PAD (RH) W/CUTOUT Not Available Price: |
| 4 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 5 |
532138669 |
ENGINE BRACKET Price: $44.53 |
| 5 |
703-1454 |
SUPPORT-FR. FENDER Not Available Price: |
| 6 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 6 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 7 |
583099901 |
COUNTERWEIGHT.2002 This part replaces 532008450. Price: $89.99 |
| 7 |
703-1456 |
FENDER SUPPORT (LH) Not Available Price: |
| 8 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 8 |
703-1457 |
Support, RH - Rear Fender Price: Call Us |
| 9 |
750-3048 |
SPACER Not Available Price: |
| 9 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
735-0199A |
Rubber Bumper This part replaces 735-0199. Price: $6.89 |
| 11 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 12 |
532004929 |
RIVET TI Price: $5.99 |
| 13 |
532005015 |
TIRE.16X4-8.CHEVRON.TILLER Price: $99.99 |
| 13 |
532065139 |
VALVE STEM LT This part replaces 532124718. Price: $5.99 |
| 13 |
532128952 |
RIM ASM.2.75 X 8.00.WHITE This part replaces 532124366. Price: $89.99 |
| 14 |
872470636 |
Bolt, Carriage 3/8-16 x 4-1/2 Price: $11.99 |
| 15 |
874760672 |
BOLT, HEX 3/8-16X4-1/2 Price: $2.99 |
