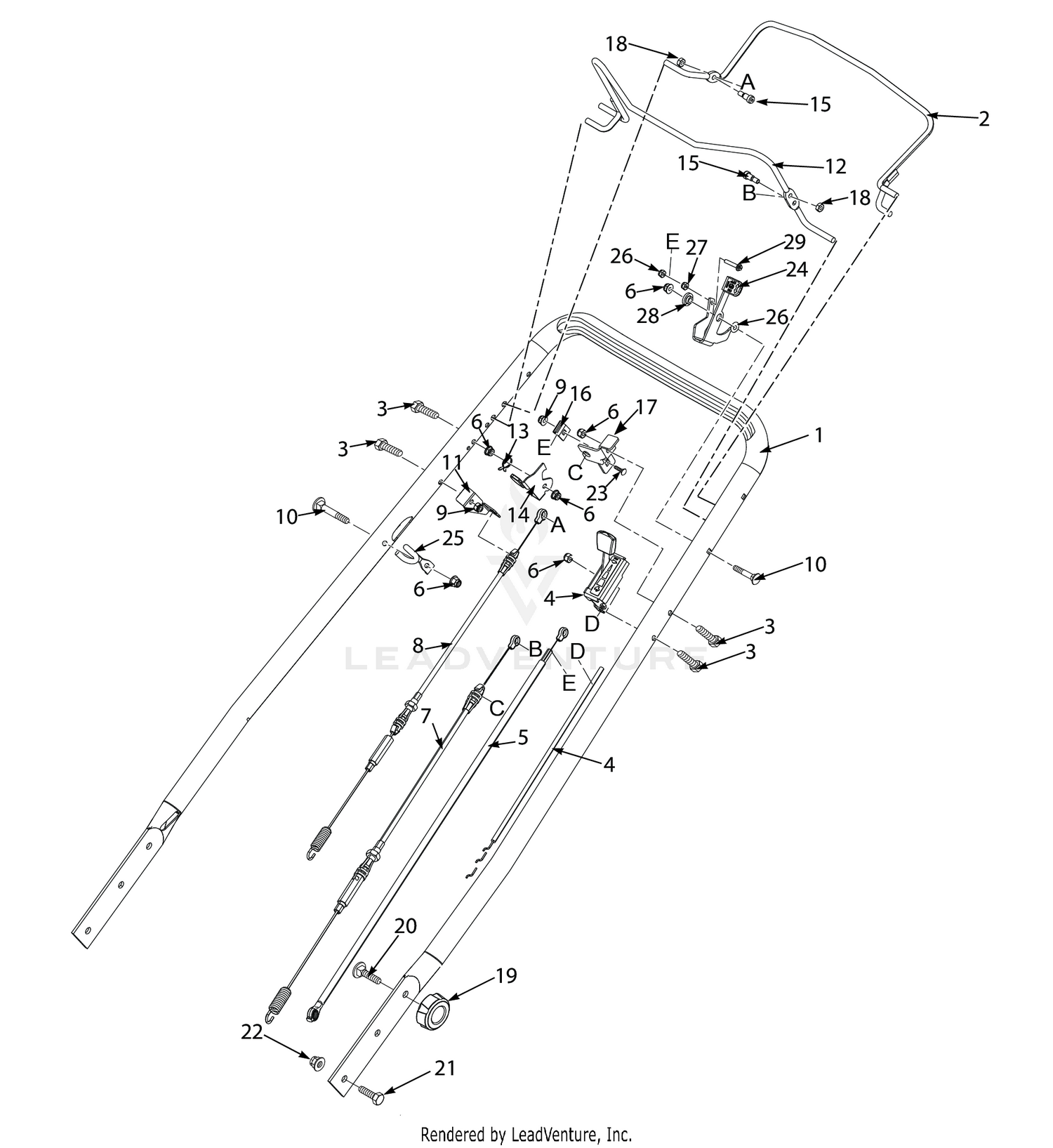

| Ref | Part Number | Description |
|---|
| 1 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 1 |
488179 |
Tube, Handle Price: Call Us |
| 2 |
253-131 |
DISCONTINUED Price: Call Us |
| 2 |
488394 |
Bottom Bail, Dipped Price: Call Us |
| 3 |
04001-03 |
Bolt, Hex Head 1/4-20 x 0.63" Price: Call Us |
| 3 |
20-7680 |
DISCONTINUED Price: Call Us |
| 4 |
356-115 |
Thrust Washer Price: Call Us |
| 4 |
488163 |
Throttle Cable w/Decal Price: Call Us |
| 5 |
20-7320 |
DISCONTINUED Price: Call Us |
| 5 |
488162 |
Cable, Brake Price: Call Us |
| 6 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 6 |
352-284 |
CLUTCH & BRG ASM Price: $88.61 |
| 7 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 7 |
488161 |
Cable, Clutch Price: Call Us |
| 8 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 8 |
488160 |
Cable, Drive Price: Call Us |
| 9 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 9 |
20-7690 |
DISCONTINUED Price: Call Us |
| 10 |
04003-51 |
Bolt, Carriage 1/4-20 x 2" Price: Call Us |
| 10 |
20-7330 |
COUNTERSHAFT Price: $14.84 |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
429657 |
Drive Cable Mount Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
453451 |
Top Bail WLMT Price: Call Us |
| 13 |
487486 |
Spring, PTO Latch Price: Call Us |
| 13 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
23-5150 |
DISCONTINUED Price: Call Us |
| 14 |
463733 |
PTO Latch w/Grip Price: Call Us |
| 15 |
04009-12 |
Bolt, Shoulder 5/16 x 3/8" Price: Call Us |
| 15 |
6663 |
SEAL-OIL This part replaces 253-130. Price: $10.99 |
| 16 |
20-7700 |
COVER ASSY Price: $263.07 |
| 16 |
429122 |
Clamp, Cable Price: Call Us |
| 17 |
20-7740 |
DISCONTINUED Price: Call Us |
| 17 |
4201213 |
Brkt, Cable Mount Price: Call Us |
| 18 |
04021-02 |
Bolt, Hex Hd. 1/2-13 x 9-1/2" Price: Call Us |
| 18 |
20-7410 |
DISCONTINUED Price: Call Us |
| 19 |
256-27 |
BUSHING Price: $8.21 |
| 19 |
481885-08 |
Knob, 3/8-16 x 2.48 OD Price: Call Us |
| 20 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 20 |
256-117 |
BUSHING Price: $4.07 |
| 21 |
04013-05 |
Screw, 3/8-16 x 3/4" (61H) Price: Call Us |
| 21 |
20-7820 |
DISCONTINUED Price: Call Us |
| 22 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 22 |
32151-35 |
RING-RETAINING, EXTERNAL Price: $8.80 |
| 23 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 23 |
2410-34 |
DISCONTINUED Price: Call Us |
| 24 |
20-7360 |
DISCONTINUED Price: Call Us |
| 24 |
463632 |
Handle Assembly, Brake Price: Call Us |
| 25 |
20-7340 |
DISCONTINUED Price: Call Us |
| 25 |
44201 |
Guide, Pull Rope Price: Call Us |
| 26 |
04021-14 |
HEX LOCKNUT, ELASTIC STOP, 3/4-16 Price: Call Us |
| 26 |
256-244 |
BUSHING Price: $5.77 |
| 27 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 28 |
431293 |
Pivot, Brake Lever Price: Call Us |
| 487155 |
Grip, |
PTO Latch Price: Call Us 487155 |
| 488165 |
Grip, |
Brake Lever Price: Call Us 488165 |
