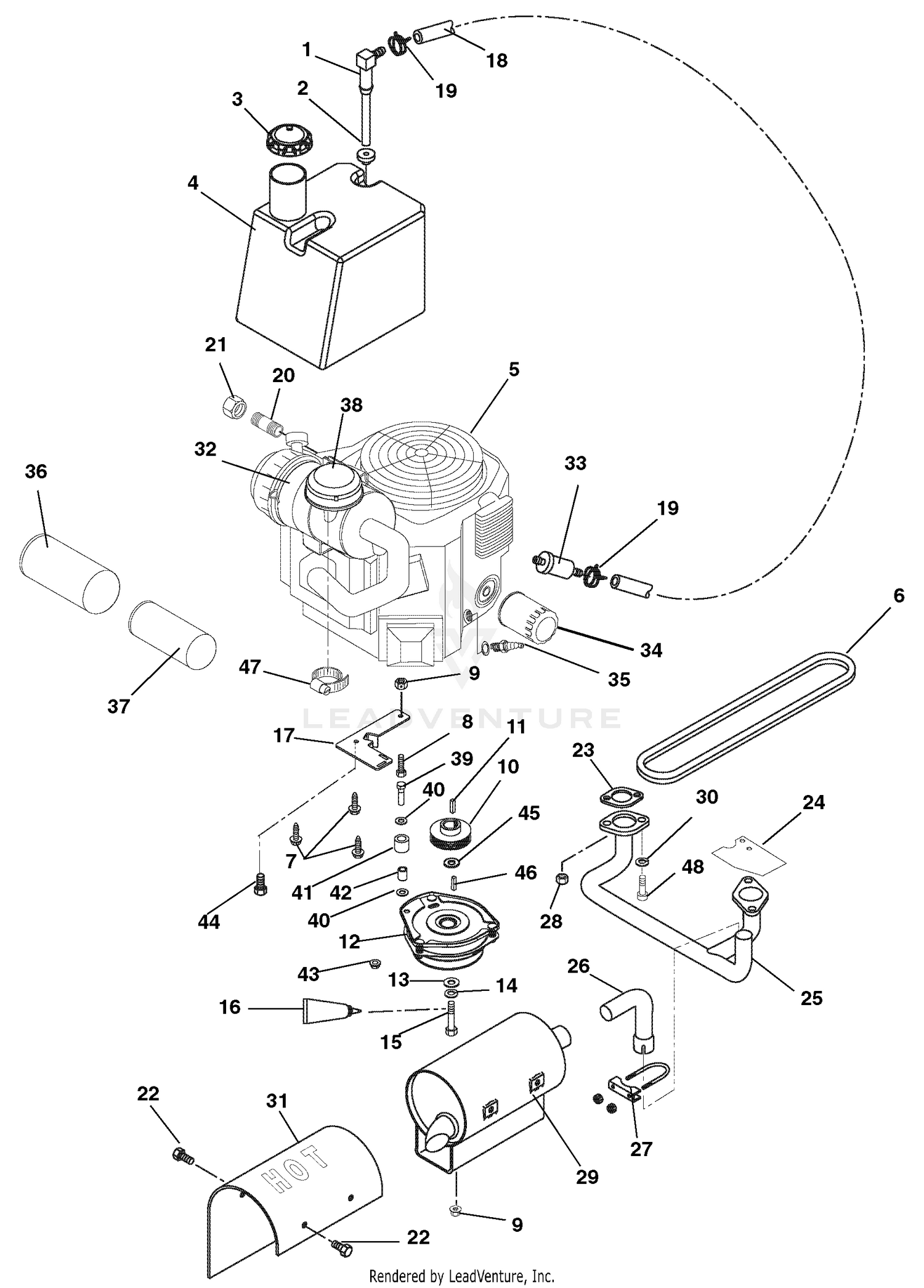

| Ref | Part Number | Description |
|---|
| 1 |
03875300 |
ASSY-PICKUP, FUEL This part replaces 09112300. Price: $13.45 |
| 2 |
07511400 |
BSHG-FLG .375 X 1.062 X .625 R Price: $3.45 |
| 3 |
03859100 |
CAP, FUEL This part replaces 09239500. Price: $25.45 |
| 4 |
09098400 |
TANK, FUEL Price: $199.30 |
| 6 |
07224300 |
V-BELT, HA-RAW EDGE Price: $37.95 |
| 10 |
07325300 |
PLY- 4.50X1.12 Price: $74.45 |
| 11 |
06602200 |
KEY-SQ .25X1.0X.25 SAE 8630 Price: $3.45 |
| 12 |
00447100 |
CLUTCH, ELE-OGURA GT3.5-VP01R Price: $564.95 |
| 13 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 14 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 17 |
03296051 |
WMT - CLUTCH ANCHOR - OGURA Price: $46.95 |
| 19 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 20 |
07025000 |
NIPPLE,PIPE .38X6.0 UNFIN STL Price: $14.95 |
| 21 |
03563600 |
PIPE CAP Price: $7.95 |
| 23 |
08824700 |
GASKET,EXHAUST Price: $20.45 |
| 26 |
04940500 |
TUBE, MANIFOLD Price: $71.95 |
| 27 |
07067900 |
U-BOLT, 1/4-20 X 1 1/2" Price: $5.95 |
| 36 |
21537000 |
ELEMENT, OUTER PRIMARY Price: $32.95 |
| 37 |
21536900 |
ELEMENT, INNER SAFETY Price: $25.45 |
| 39 |
05901928 |
BLT, HEX .38-16X1.50 G5 ZCC This part replaces 05957900. Price: $1.45 |
| 40 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 41 |
07500007 |
BUMPER,RUBBER .62X1.0X.88 LG Price: $5.45 |
| 42 |
08905500 |
BUSH.,S.407X.625X.813 ST Price: $12.45 |
| 43 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 45 |
06434200 |
WSHR-THRST 1.125X1.750X.1245 Price: $16.95 |
| 46 |
06602600 |
KEY-SQ .25 X 2.50 X .25 SAE Price: $5.45 |
