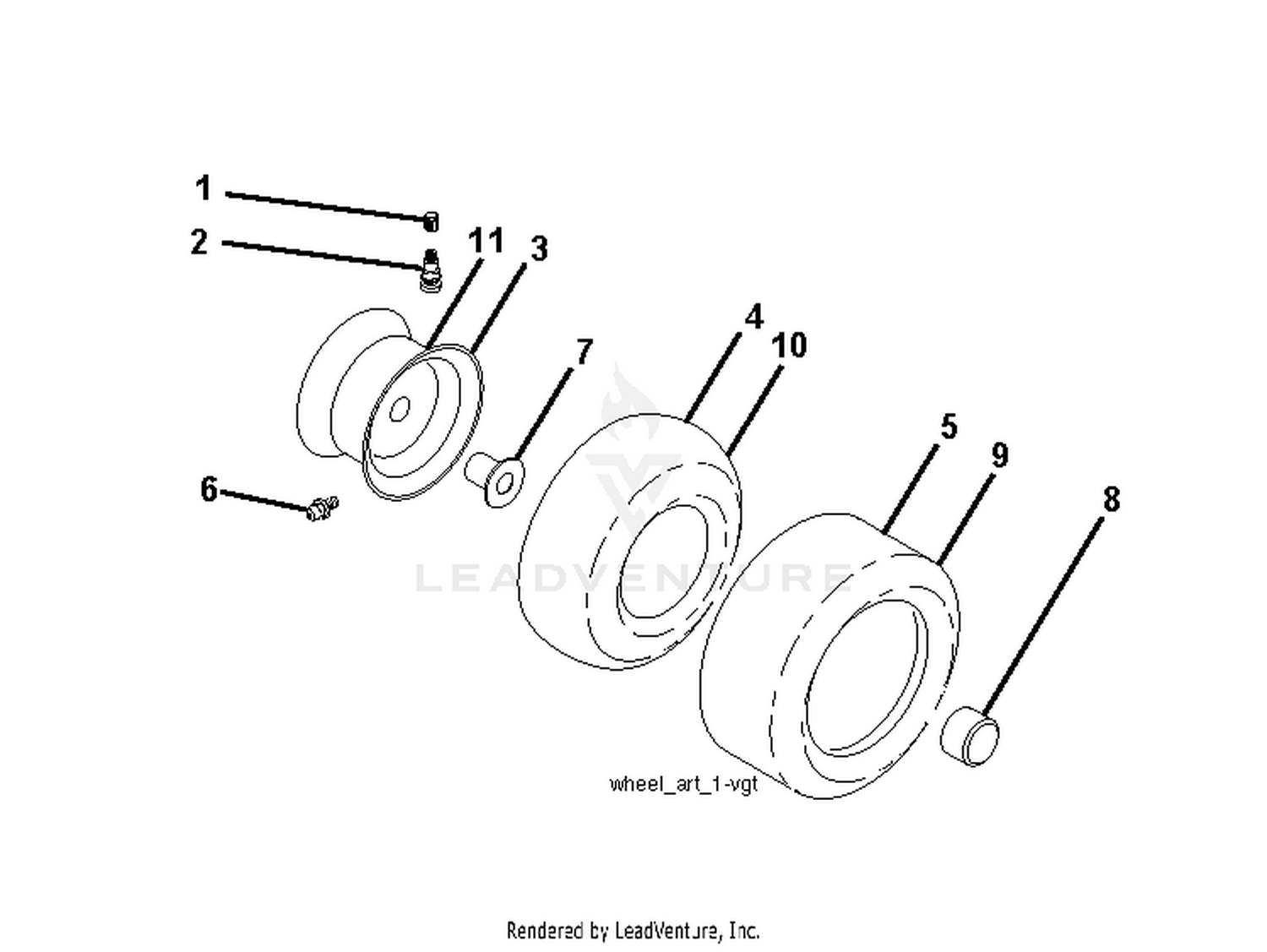

| Ref | Part Number | Description |
|---|
| 1 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 2 |
99-7667 |
WASHER-FLAT Price: $4.80 |
| 3 |
532106732 |
RIM.ASM.6X4.5.FRONT.SILVER This part replaces 532138336. Price: $79.99 |
| 4 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 4 |
532059904 |
TUBE.5.3/4.5/6 Price: $19.99 |
| 5 |
127-6430 |
LIFT CYLINDER ASM This part replaces 107-1981. Price: $793.53 |
| 5 |
532122073 |
TIRE.15X6-6.TURF.SAVER.FRONT This part replaces 532106222. Price: $59.99 |
| 6 |
532000278 |
FITTING LT. This part replaces 532124957. Price: $5.99 |
| 6 |
93-2700 |
ROLLER-PLASTIC Price: $30.55 |
| 7 |
33029-00 |
NUT-LOCK, NI Price: $2.92 |
| 7 |
532009040 |
BEARING.FLANGE This part replaces 532124959. Price: $6.99 |
| 8 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 8 |
532104757 |
CAP.HUB.FRONT.LT.BLACK This part replaces 532175039. Price: $3.99 |
| 9 |
532125833 |
TIRE.20X10-8.TURF.SAVER This part replaces 532122082. Price: $119.99 |
| 9 |
98-8821 |
LINK-REAR Price: $30.71 |
| 10 |
532007152 |
TUBE - UNIVERSAL FOR 8" RIM This part replaces 532124926. Price: $49.99 |
| 10 |
93-2704-03 |
LINK-LEFT Price: $23.18 |
| 11 |
3229-28 |
SCREW-CARR Price: $0.81 |
| 11 |
532106108 |
RIM.ASM.8X7.REAR.SILVER This part replaces 532138337. Price: $99.99 |
| 12 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 13 |
105-3858 |
BRACKET-SWITCH Price: $28.58 |
| 14 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 15 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 16 |
323-7 |
SCREW-HH Price: $0.65 |
| 17 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 18 |
106-9288 |
SENSOR-PROXIMITY, FERROUS Price: $126.57 |
| 19 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 20 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 21 |
136-3381 |
NO.6 LIFTARM ASM This part replaces 108-4035. Price: $1,212.21 |
| 22 |
108-4022 |
SHAFT-CARRIER, PIVOT Price: $160.59 |
| 23 |
105-3999 |
SPRING-COMPRESSION Price: $54.93 |
| 24 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 25 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 26 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 27 |
93-2699 |
PIN Price: $48.15 |
| 28 |
147-6067 |
PIVOT PIN ASM This part replaces 98-8826. Price: $44.62 |
| 29 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 30 |
104-5657-03 |
NO. 6 SUPPORT ARM ASM Price: $1,374.05 |
| 31 |
32128-33 |
NUT-HF Price: $0.25 |
| 32 |
67-1750 |
BUSHING Price: $0.92 |
| 33 |
115-1577-03 |
LINK ASM Price: $299.26 |
| 35 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 36 |
2412-93 |
CLAMP-R Price: $1.02 |
| 38 |
105-9828 |
ACTUATOR-SWITCH Price: $35.48 |
| 39 |
108-4045-03 |
LATCH-ARM, LH Price: $120.83 |
| 40 |
104-3556-03 |
LATCH-RH Price: $58.58 |
| 41 |
327-6 |
SCREW-HH Price: $12.99 |
| 42 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 43 |
104-3577 |
WASHER Price: $0.76 |
| 44 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 45 |
3296-45 |
NUT-HEX Price: $3.79 |
| 46 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 47 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 49 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 50 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 51 |
323-52 |
SCREW-HH Price: $3.63 |
| 52 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 53 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 54 |
105-9822 |
SPACER Price: $3.16 |
| 55 |
323-11 |
SCREW-HH Price: $1.08 |
| 56 |
115-4841 |
SCREW-HH Price: $10.68 |
| 57 |
136-3383 |
NO.7 LIFT ARM ASM This part replaces 108-4036. Price: $1,212.21 |
| 58 |
104-5658-03 |
NO. 7 SUPPORT ARM ASM Price: $1,362.74 |
| 59 |
108-4046-03 |
LATCH-ARM, RH Price: $120.83 |
| 60 |
104-3557-03 |
LATCH-LH Price: $58.58 |
