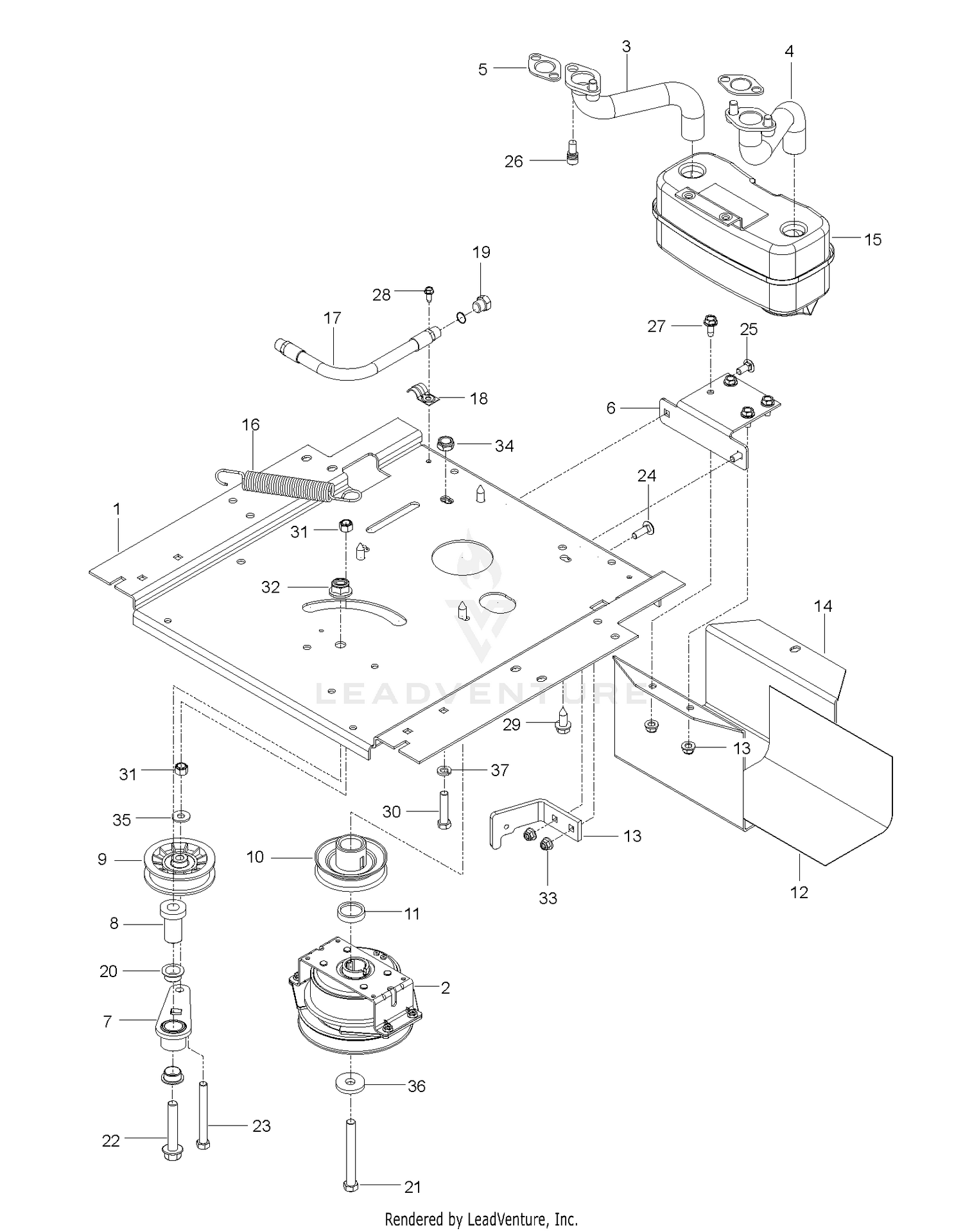

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Briggs & Stratton Vanguard™ 17.1 kW (23 hp). For engine replacement parts, see a B&S Dealer. Price: Call Us 000000000 |
| 1 |
593898602 |
PLATE ENGINE; RZ, 23IN BLACK This part replaces 588017102. Price: $149.99 |
| 2 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 3 |
532191549 |
EXHAUST.TUBE.MUFFLR.RH.VANG Price: $39.99 |
| 4 |
532191548 |
EXHAUST.TUBE.MUFFLR.LH.VANG Price: $69.99 |
| 5 |
532192442 |
GASKET.MUFF 806237 NOW 806425 Price: $12.99 |
| 6 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $19.99 |
| 7 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 8 |
582538902 |
SPINDLE.IDLER This part replaces 582538901. Price: $4.99 |
| 9 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 10 |
587537401 |
PULLEY.ENGINE Price: $22.99 |
| 11 |
587660101 |
SPACER.SPACER.625 W/OGURA.LCC Price: $5.99 |
| 12 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 13 |
587633302 |
CLUTCH.STOP.OGURA LCC.BLACK Price: $7.99 |
| 14 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $44.99 |
| 15 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 16 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 17 |
584825502 |
HOSE ASSY OIL DRAIN. VAN GUARD Price: $17.99 |
| 18 |
539101363 |
CLAMP Price: $2.99 |
| 19 |
585807101 |
PLUG OIL DRAIN Price: $2.99 |
| 20 |
501603701 |
BEARING.FLANGED.PLASTIC.3/4ID Price: $5.99 |
| 21 |
581332806 |
Bolts This part replaces 581332803. Price: $6.99 |
| 22 |
582539502 |
Bolts This part replaces 582539501. Price: $5.99 |
| 23 |
596433901 |
Screws This part replaces 874520656. Price: $2.99 |
| 24 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 25 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 26 |
532192443 |
SCREW.TUBE.MUFFLER.VANGUARD Price: $3.99 |
| 27 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 29 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 30 |
596918101 |
Bolts This part replaces 539976949. Price: $2.99 |
| 31 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 32 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 33 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 34 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 35 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 36 |
532126197 |
WASHER Price: $6.99 |
| 37 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
