Home / OPE / Utility Vehicle / 4x4 / Challenger 400 4x4 Utility Vehicle Yellow (37BV3BHK010) (2019) / Transmission

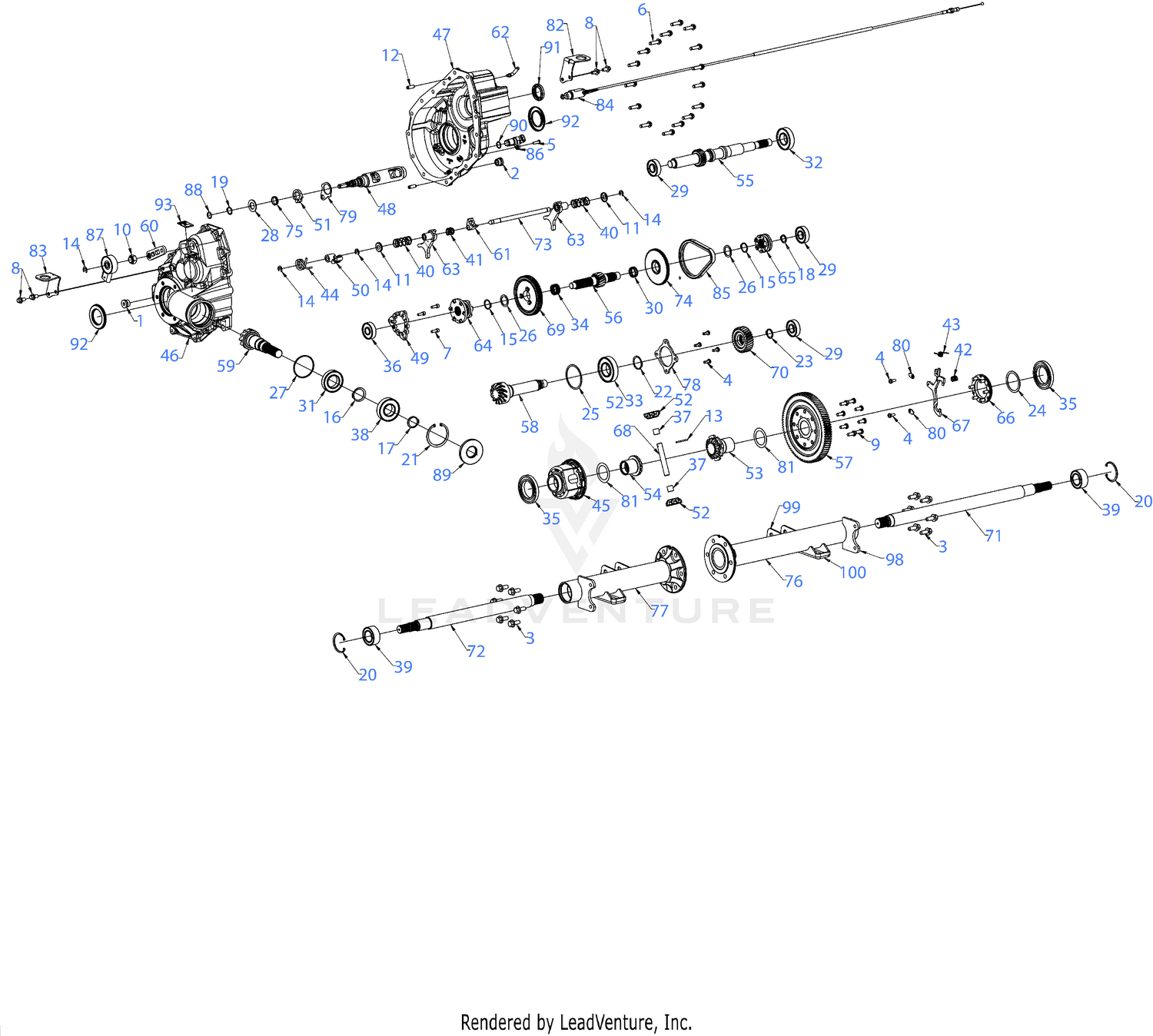

Transmission

Transmission

Parts (92)

RefPart NumberDescription
1 TM-100049 HOLLOW HEX PLUG 3/4-16 Price: $4.26
2 TM-100215 HOLLOW HEX PLUG 3/4-16 Price: $4.79
3 TM-105123 HEX HEAD CAP SCREW 3/8-16 X 1.00 Price: $5.28
4 TM-105239 TORX PAN HEAD SCREW M6X1X16 Price: $2.46
5 TM-105250 TORX BUTTON HEAD SCREW M6X1X20 Price: $4.16
6 TM-105272 HEX HEAD FLANGE SCREW M8X1.25X30 Price: $2.73
7 TM-105355 CAP SCREW M6X1.0X18 Price: $2.31
8 TM-105451 HEX FLANGE HEAD SCREW M8X1.25X16 Price: $7.40
9 TM-105481 TORX BUTTON HEAD SCREW M8X1.25X20 Price: $6.53
10 TM-110044 NYLON LOCK NUT M14X2 Price: $4.34
11 TM-115064 CUP WASHER Price: $3.10
12 TM-125064 PIN 5/16X1.00 Price: $4.04
13 TM-125194 DOWEL PIN 3 X 4 Price: $9.51
14 TM-130005 SNAP RING Price: $3.40
15 TM-130015 RETAINING RING Price: $2.70
16 TM-130021 RETAINING RING 1.375 Price: $3.83
17 TM-130030 RETAINING RING IRR 7200-118 Price: $4.70
18 TM-130051 RETAINING RING EXTERNAL 0.787 Price: $2.17
19 TM-130060 RETAINING RING EXTERNAL 0.750 Price: $2.78
20 TM-130111 RETAINING RING INTERNAL 52MM Price: $4.38
21 TM-130153 RETAINING RING INTERNAL 65MM Price: $7.13
22 TM-130196 RETAINING RING EXTERNAL 1.375 Price: $2.78
23 TM-130373 RETAINING RING SNAP 24.00 X 1.75 Price: $8.46
24 TM-150113-04 SHIM 2.00 X 2.40 Price: $13.72
25 TM-150230 SHIM KIT (INCLUDES 11 SHIMS) Price: $3.01
26 TM-150255 THRUST WASHER 1.30 X .995 X.065 Price: $3.01
27 TM-150590 THRUST WASHER 60 X 65 X 1.5 Price: $8.87
28 TM-150599 THRUST WASHER Price: $10.92
29 TM-180003 BEARING 6204 C3 Price: $7.34
30 TM-180006 NEEDLE BEARING 25 X 29 X 10 Price: $5.90
31 TM-180018 BEARING 6007 C3 Price: $11.30
32 TM-180022 BEARING 6206 C3 Price: $14.12
33 TM-180029 BEARING 6207 C3 Price: $11.85
34 TM-180210 NEEDLE BEARING Price: $8.36
35 TM-180248 BEARING 50 X 80 X 10 Price: $12.62
36 TM-180298 BEARING 6303 Price: $7.03
37 TM-180799 BEARING 14 X 16 X 15 Price: $8.36
38 TM-180819 BEARING 62/32 Price: $17.48
39 TM-180836 BEARING DAC 3052 Price: $32.22
40 TM-210127 COMPRESSION SPRING .92 X 2.00 Price: $2.61
41 TM-210131 COMPRESSION SPRING .46 X .73 Price: $2.65
42 TM-210219 COMPRESSION SPRING .54 X .44 Price: $2.73
43 TM-210599 TORSION SPRING LH Price: $20.42
44 TM-210611 TORSION SPRING Price: $20.68
45 TM-255329 DIFFERENTIAL CARRIER Price: $92.97
46 TM-255356 CASE RH Price: $538.85
47 TM-255357 COVER LH Price: $373.16
48 TM-255368 SHIFT DRUM Price: $219.78
49 TM-270015 PARK PLATE Price: $11.03
50 TM-270144 DETENT PAWL Price: $20.81
51 TM-270724 DETENT STAR Price: $19.19
52 TM-280426 BEVEL PINION GEAR 10T Price: $55.96
53 TM-286225 OUTPUT GEAR 14T Price: $77.54
54 TM-286226 OUTPUT GEAR 14T Price: $34.05
55 TM-286292 INPUT SHAFT 27T Price: $110.92
56 TM-286293 REVERSE SHAFT 15T Price: $75.64
57 TM-286294 OUTPUT GEAR 88T Price: $174.11
58 TM-286298 PINION SHAFT 12T Price: $164.97
59 TM-286299 GEAR SHAFT 11T Price: $142.16
60 TM-290095 BELLCRANK Price: $16.55
61 TM-351149 SHIFT COLLAR Price: $9.00
62 TM-351591 VENT TUBE HOSE Price: $6.30
63 TM-351605 SHIFT FORK Price: $30.55
64 TM-351990 L/P DOG Price: $44.35
65 TM-353179 ENGAGEMENT DOG Price: $34.05
66 TM-353577 ENGAGEMENT DOG Price: $36.22
67 TM-353578 DIFFERENTIAL SHIFT FORK Price: $44.57
68 TM-354363 DIFFERENTIAL PIN Price: $14.39
69 TM-354526 GEAR 70T Price: $64.14
70 TM-354817 GEAR 30T Price: $52.68
71 TM-354822 AXLE LH Price: $144.09
72 TM-354823 AXLE RH Price: $135.64
73 TM-354841 SHIFT SHAFT RAIL Price: $34.12
74 TM-354967 SPROCKET 52T Price: $105.79
75 TM-354988 SPRING COLLAR Price: $13.41
76 TM-405076 AXLE TUBE WELDMENT LH Price: $353.48
77 TM-405077 AXLE TUBE WELDMENT RH Price: $342.43
78 TM-430113 CENTER DRIVE BEARING COVER Price: $7.61
79 TM-430247 SPACER Price: $2.61
80 TM-430351 FORK RETAINER Price: $3.24
81 TM-430821 THRUST WASHER Price: $11.85
82 707-06818 MUFFLER BRACKET (LH) Price: $19.16
83 707-06819 MUFFLER BRACKET (RH) Price: $19.16
84 746-05419 DIFF LOCK CABLE Price: $91.35
85 TM-490045 CHAIN .25P X .40W X 62L Price: $53.29
86 TM-520105 SPEED SENSOR Price: $88.22
87 TM-520108 ROTARY SWITCH 6 PIN Price: $89.07
88 TM-560099 O-RING Price: $3.53
89 TM-560156 SEAL 30X72X8 Price: $24.91
90 TM-560190 O-RING Price: $2.46
91 TM-560321 DUAL LIP SEAL 30X47X7 Price: $20.07
92 TM-560324 TRIPLE LIP SEAL 40X70X7 Price: $10.73
