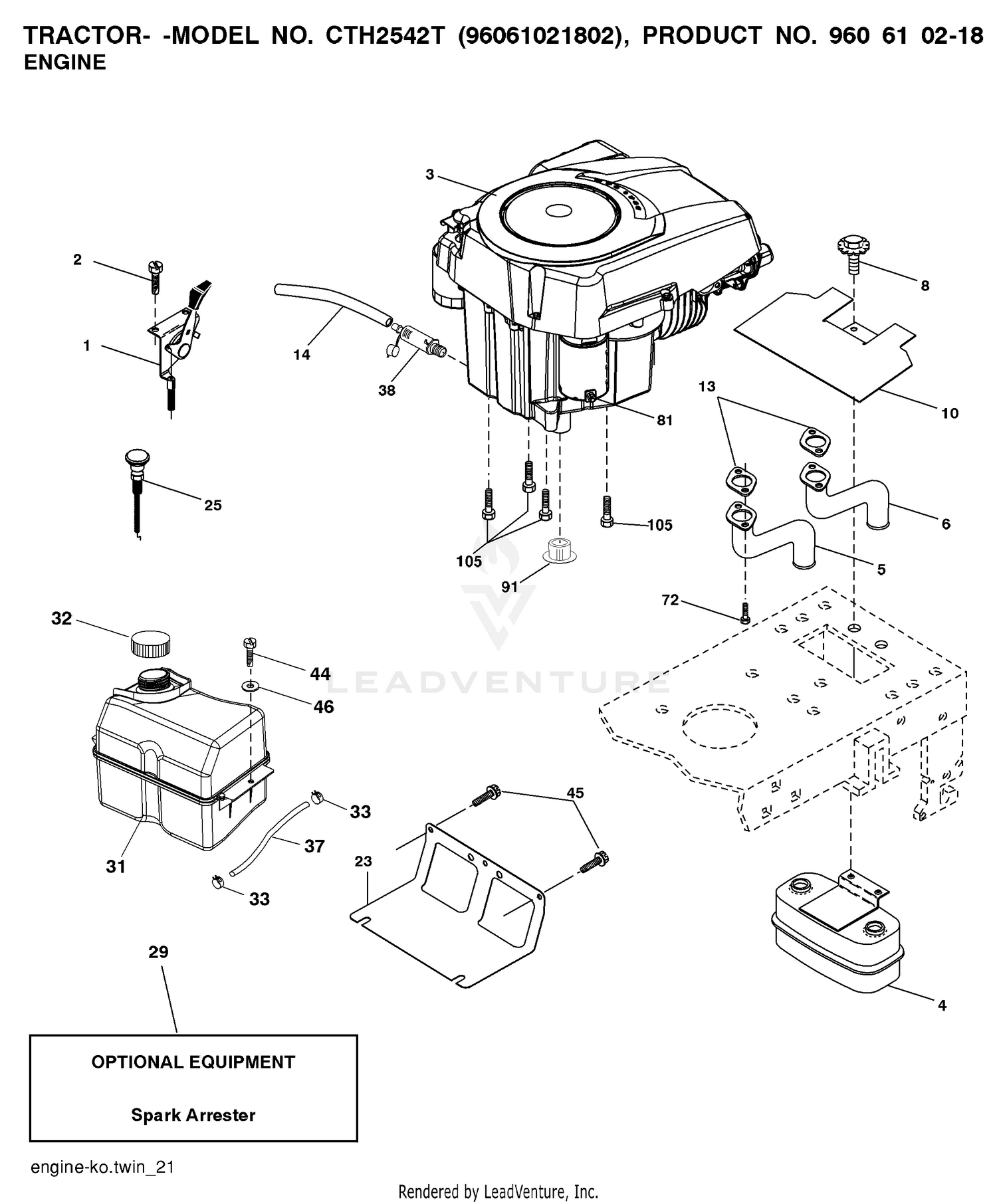

| Ref | Part Number | Description |
|---|
| 1 |
100-5797-03 |
BRACKET-HOC, RH Price: $30.11 |
| 1 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 2 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 3 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 4 |
104-1052-03 |
BRACKET-HOC, FRONT Price: $29.29 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
100-5799 |
SHIM-HOC, .060 INCH Price: $5.86 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
3231-9 |
SCREW-CARR Price: $1.18 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
104-4641 |
SHIM-HOC, .030 INCH Price: $2.34 |
| 8 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 10 |
121-3575 |
SPACER-HOC Price: $4.10 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
104-4624-03 |
BRACKET-HOC, LH Price: $30.11 |
| 12 |
136-2921 |
HOC PLATE ASM Price: $6.80 |
| 13 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532425162. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
