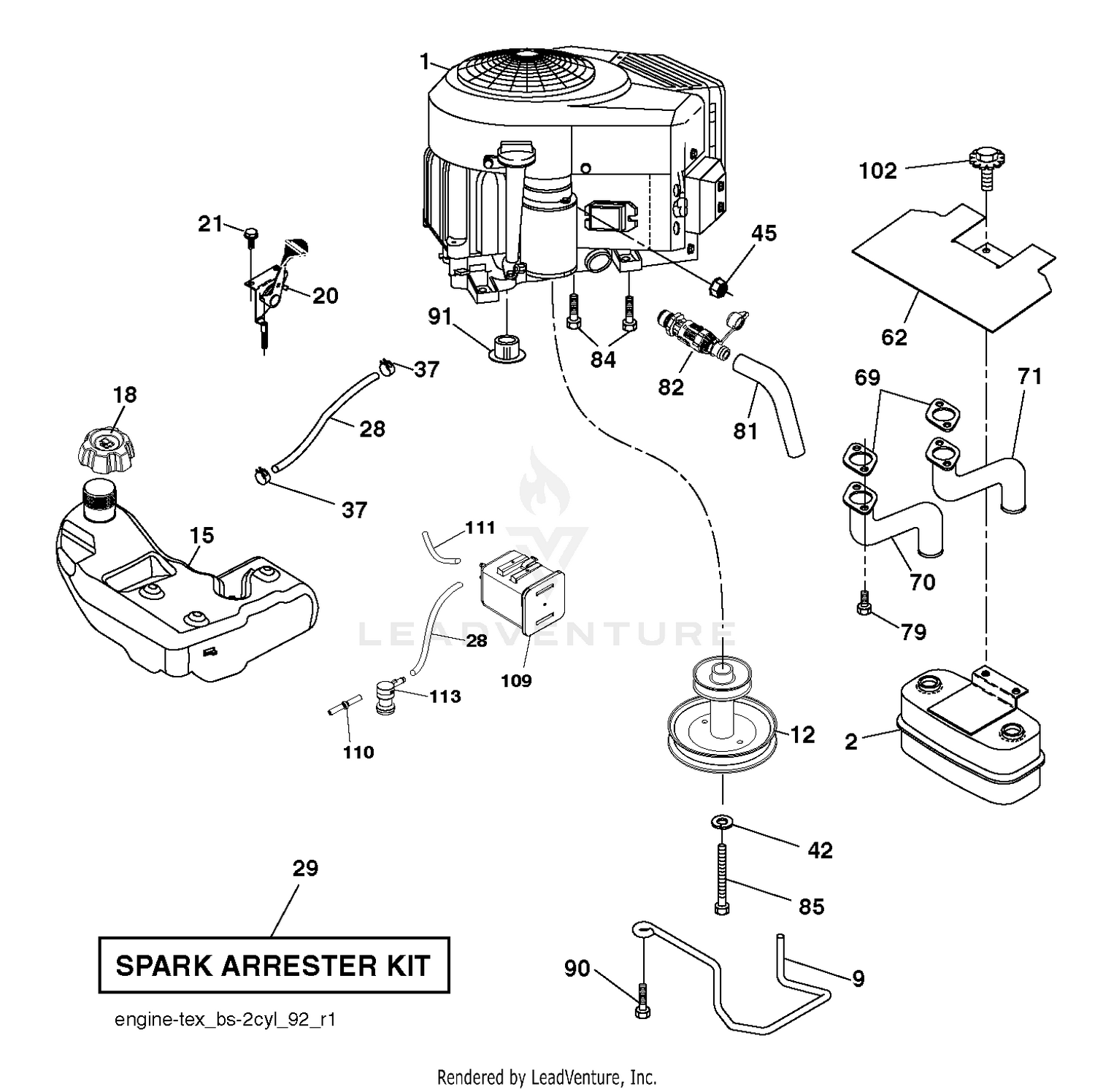

| Ref | Part Number | Description |
|---|
| 1 |
94-3995 |
DISCONTINUED Price: Call Us |
| 2 |
32151-33 |
RING-RETAINING, EXT This part replaces 94-4006. Price: $3.09 |
| 3 |
94-4005 |
DISCONTINUED Price: Call Us |
| 5 |
94-3910 |
DISCONTINUED Price: Call Us |
| 6 |
94-3960 |
BEARING-BALL Price: $88.70 |
| 7 |
32151-83 |
RING-SNAP This part replaces 94-3996. Price: $0.34 |
| 8 |
94-4001 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 9 |
94-3991 |
COVER-FRONT Price: $694.24 |
| 10 |
94-4009 |
SCREW Price: $5.80 |
| 11 |
94-3998 |
DISCONTINUED Price: Call Us |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 12 |
94-3925 |
SEAL-LIP Price: $47.47 |
| 13 |
94-4029 |
RING-RETAINING, INT. Price: $3.22 |
| 14 |
94-4011 |
DISCONTINUED Price: Call Us |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 15 |
94-4010 |
COVER-GEROTOR Price: $490.55 |
| 16 |
94-4008 |
SCREW Price: $10.40 |
| 17 |
94-3942 |
BEARING-BALL Price: $100.14 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
67-8030 |
PLUG ASM Price: $29.67 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
95-7037 |
SCREW Price: $5.85 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 23 |
94-4004 |
SCREW-HF Price: $8.60 |
| 24 |
94-3975 |
PIN Price: $5.80 |
| 25 |
94-4026 |
DISCONTINUED Price: Call Us |
| 26 |
94-4053 |
GEAR-CLUTCH, PTO Price: $653.41 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
