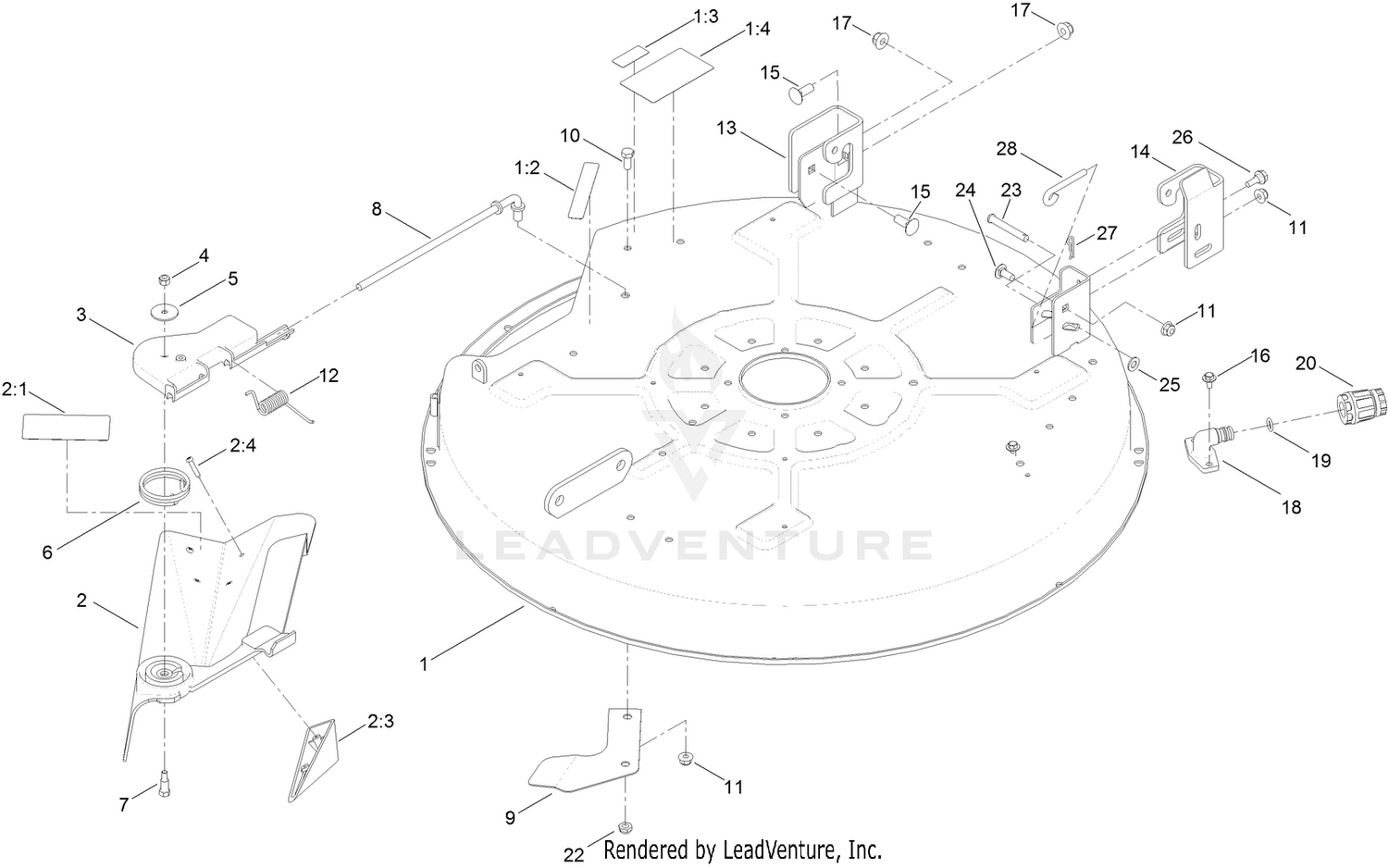

| Ref | Part Number | Description |
|---|
| 3 |
88-4540 |
PIVOT-HINGE, DEFLECTOR Price: $14.47 |
| 4 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 5 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 6 |
88-6160 |
SPRING-TORSION Price: $22.55 |
| 7 |
92-8916 |
BOLT-SHOULDER Price: $14.99 |
| 8 |
119-8858 |
ROD-PIVOT Price: $16.72 |
| 9 |
119-8877-03 |
RAMP-DEFLECTOR Price: $10.93 |
| 10 |
322-3 |
SCREW-HH Price: $0.79 |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 12 |
92-2493 |
SPRING-TORSION Price: $7.71 |
| 13 |
131-4138 |
BRACKET-HANGER, RH Price: $8.65 |
| 14 |
131-1091 |
BRACKET-HANGER, LH Price: $10.00 |
| 15 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 16 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 19 |
46-6290 |
O-RING Price: $2.59 |
| 20 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
110-0618 |
PIN-CLEVIS Price: $1.42 |
| 24 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 25 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
120-7024 |
SCREW-SHOULDER,HWH Price: $1.31 |
| 27 |
1-806003 |
PIN-COTTER Price: $1.39 |
