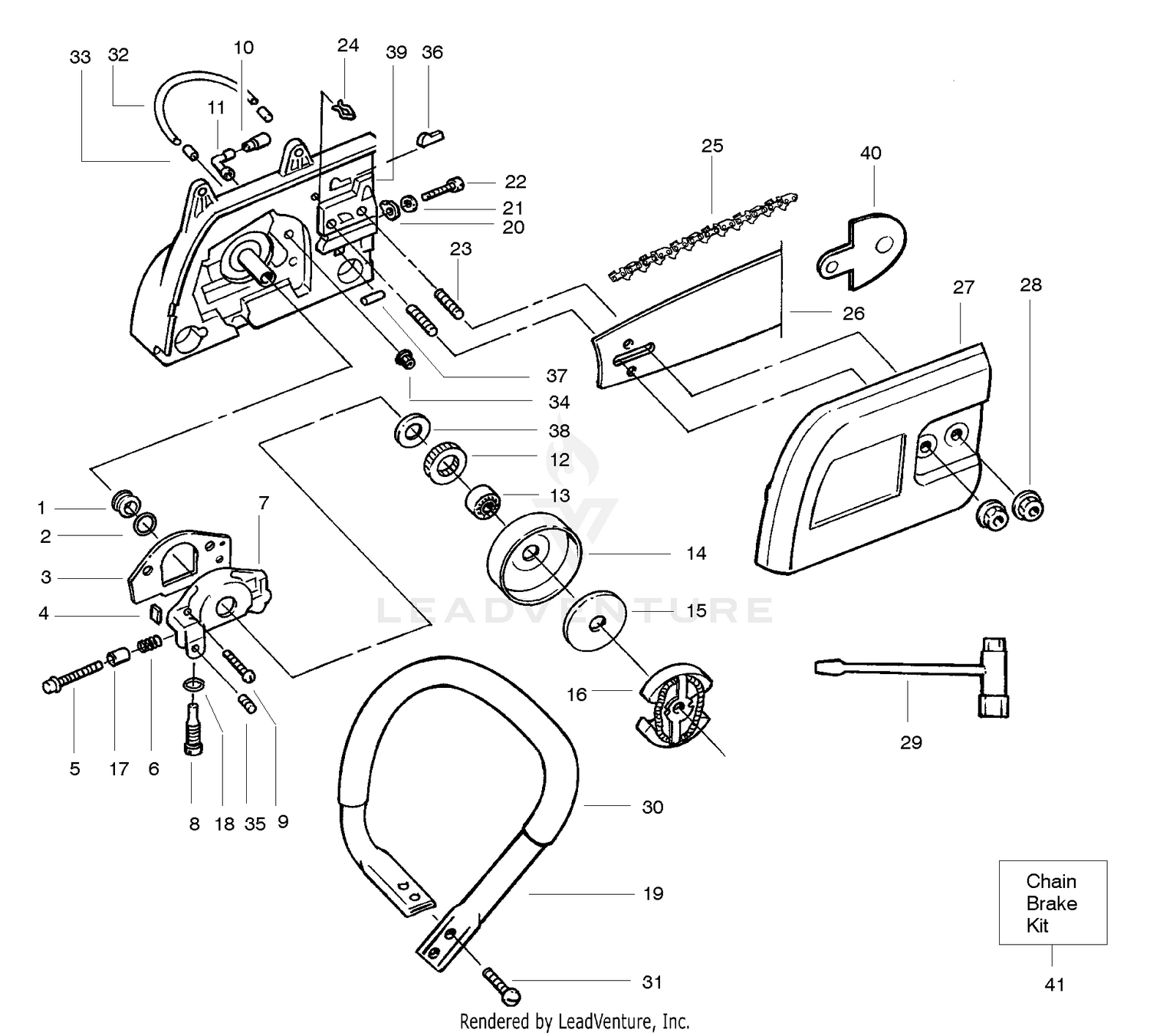

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
530027140 |
Worm Gear Price: $8.99 |
| 2 |
530019147 |
Seal Price: $3.99 |
| 2 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 3 |
140-6221 |
LINK AND BUSHING ASSEMBLY This part replaces 16-9759. Price: $70.43 |
| 3 |
530069487 |
Engine Gasket Set Price: $6.99 |
| 4 |
530027128 |
Dust Plug Price: $1.99 |
| 4 |
93-6981 |
SPACER Price: $4.69 |
| 5 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 5 |
530014204 |
Shaft Ass'y. Price: $9.99 |
| 6 |
115-4263 |
PLATE-SIDE, RH Price: $329.24 |
| 6 |
530027126 |
Spring Price: $1.99 |
| 7 |
115-4260 |
PLATE-SIDE, LH Price: $329.24 |
| 8 |
112-8979 |
TUBE-SUPPORT Price: $52.72 |
| 8 |
530015873 |
Screw-Oiler Adjusting Price: $5.99 |
| 9 |
112-8978 |
FRAME-CENTER Price: $494.59 |
| 9 |
530015650 |
Screw-Pinch Clamp This part replaces 530015871. Price: $1.99 |
| 10 |
530027272 |
Oil Pickup & Filter Price: $3.99 |
| 11 |
530027192 |
Oiler Intake Line Price: $1.99 |
| 12 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 12 |
530048098 |
Rim Sprocket Model 365 Price: $12.99 |
| 13 |
530032049 |
Bearing Price: $8.99 |
| 14 |
530048083 |
Drum Sprocket Price: $17.99 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
530027161 |
Clutch Plate Price: $1.99 |
| 16 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
530014161 |
Clutch Ass'y. Price: $9.99 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
530027129 |
Oiler Gear Spur Price: $0.99 |
| 18 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 19 |
530053350 |
HANDLE This part replaces 530047163. Price: $22.99 |
| 20 |
530023064 |
Bar Adjusting Pin Price: $3.99 |
| 21 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
| 22 |
530016110 |
Screw Price: $0.99 |
| 23 |
530016238 |
Bar Stud Price: $1.99 |
| 24 |
530015108 |
Vent Pin Price: $1.99 |
| 25 |
952051310 |
Chain Model 336-20" Price: $24.99 |
| 25 |
952051323 |
Chain Model 336-16" Price: Call Us |
| 25 |
952051397 |
Chain Model 365-20" Price: Call Us |
| 25 |
952051403 |
Chain Model 365-16" Price: Call Us |
| 26 |
952044373 |
Bar Model 336-16" Price: Call Us |
| 26 |
952044377 |
Bar Model 336-20" Price: Call Us |
| 26 |
952044560 |
Bar Model 365-16" Price: $46.23 |
| 26 |
952044561 |
Bar Model 365-20" Price: Call Us |
| 28 |
530015251 |
BAR NUT Price: $1.99 |
| 29 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 29 |
545006011 |
SCRENCH This part replaces 530031146. Price: $6.99 |
| 30 |
530027776 |
Handlebar Grip Price: $1.40 |
| 31 |
530016058 |
Screw Price: $1.99 |
| 32 |
530021061 |
Oiler Discharge Line Price: $1.99 |
| 33 |
530002464 |
Oiler Discharge Sleeve Price: $1.99 |
| 34 |
530015422 |
Tubing Nut Price: $1.99 |
| 35 |
530015752 |
Oiler Adjustment Pin Price: $1.99 |
| 36 |
530027222 |
Chain Pad-Top Price: $1.99 |
| 37 |
530027223 |
Chain Pad Price: $0.99 |
| 38 |
530015733 |
Washer-Thrust Price: $1.99 |
| 39 |
530029236 |
Crankcase Plug Price: $1.99 |
| 40 |
530037091 |
Replaceable Sprocket Nose Price: $49.99 |
| 41 |
952069321 |
Chain Brake Kit Price: $26.42 |
