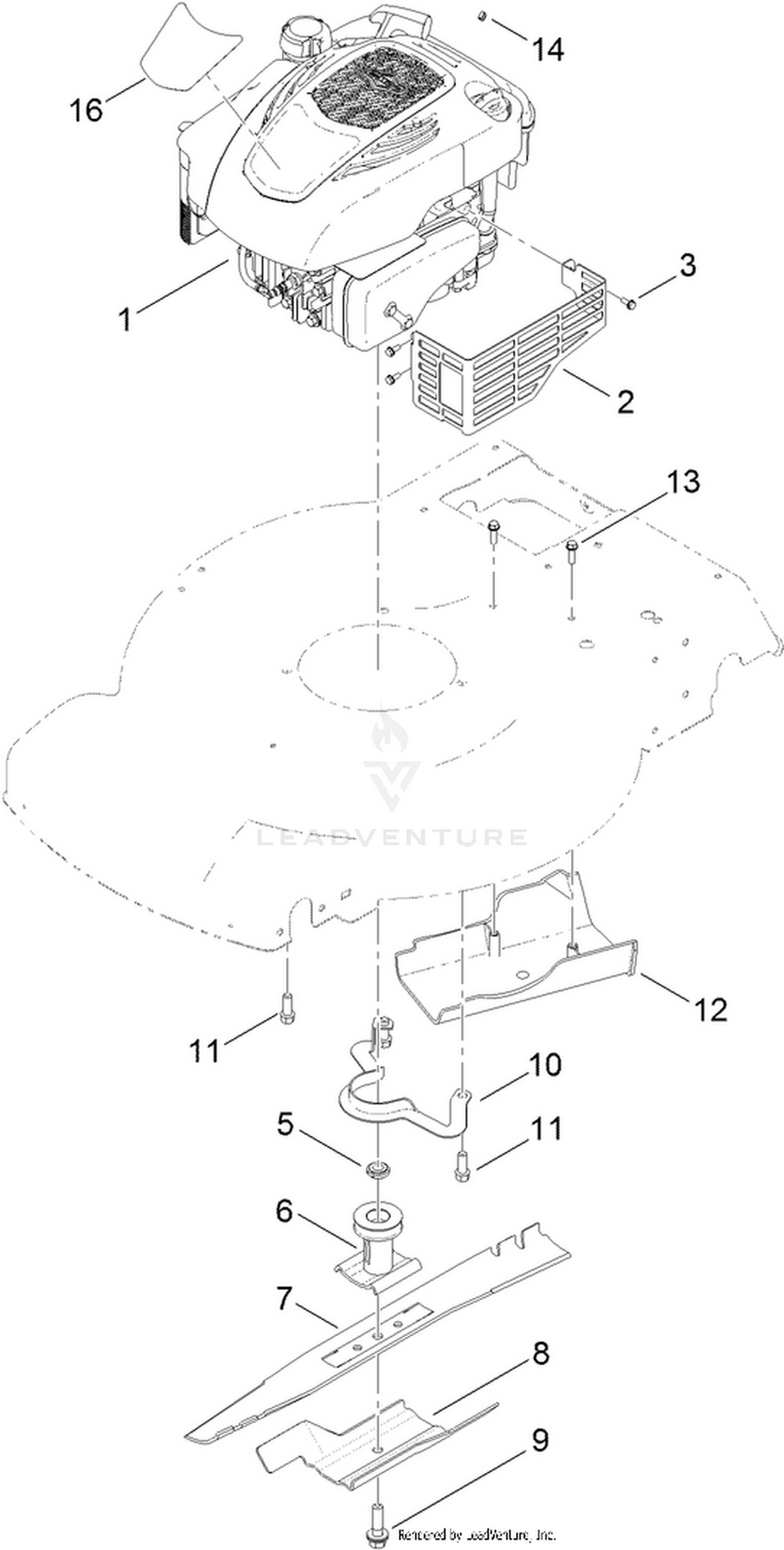

Engine and Blade Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 104-7577-03 | SHIELD-MUFFLER Price: $16.78 |
| 3 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 5 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 6 | 106-3987 | DRIVER-BLADE Price: $20.79 |
| 7 | 131-9683-03 | BLADE This part replaces 108-9783-03. Price: $20.79 |
| 8 | 105-6848-03 | ACCELERATOR-BLADE Price: $11.94 |
| 9 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 10 | 105-3030-03 | GUIDE-BELT Price: $9.83 |
| 11 | 95-1726 | SCREW-TAPTITE Price: $1.79 |
| 12 | 114-7937 | COVER-BELT Price: $12.23 |
| 13 | 46-8091 | SCREW-HWH Price: $3.59 |
| 14 | 2210-316 | STOP-ROPE Price: $4.41 |
