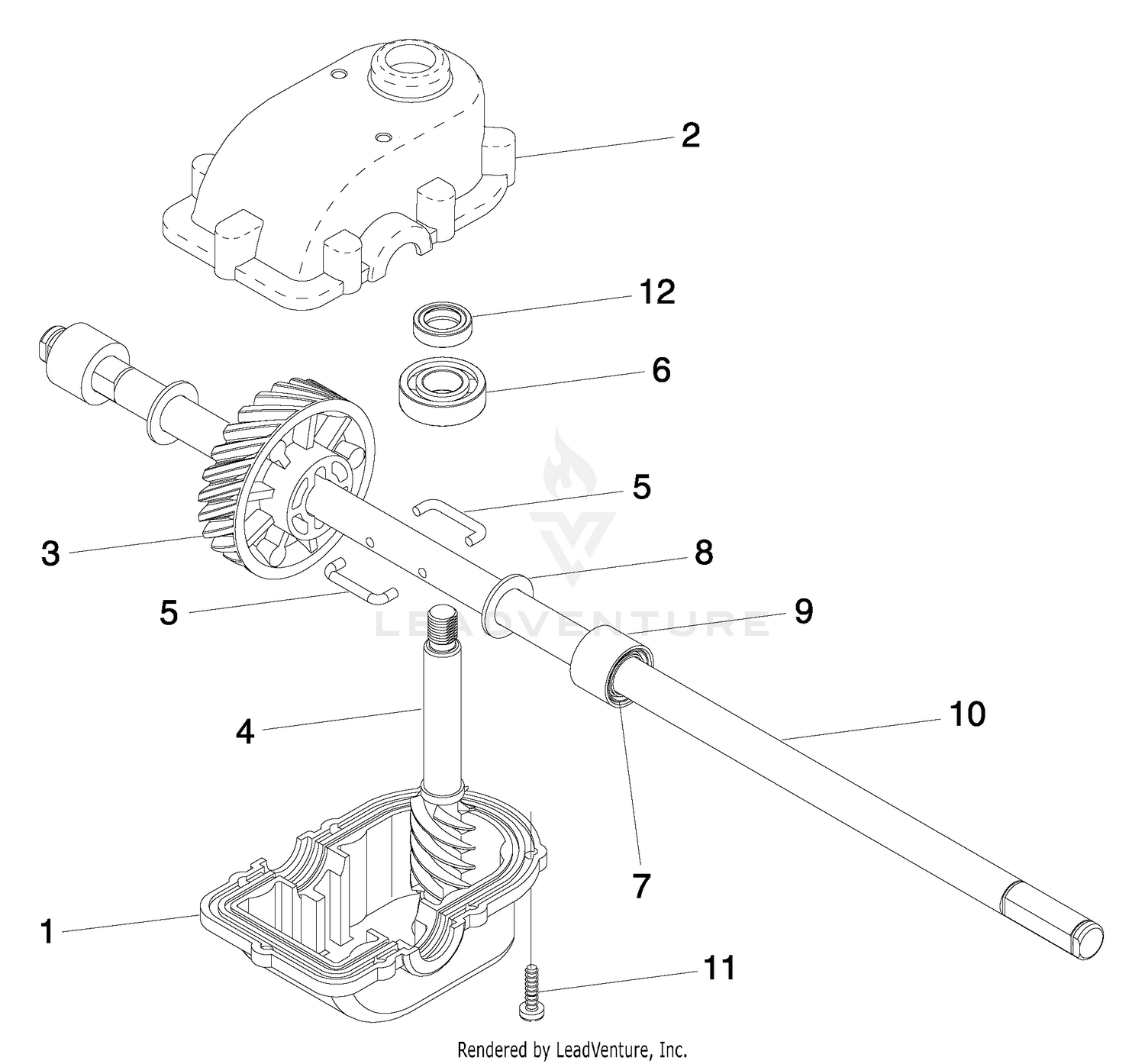

Gear Case Assembly 532188294
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52_098_06 | Starter Assy. (Incl. Ref. #4-10) Price: Call Us |
| 1 | 532187530 | CASE, LOWER Price: $10.99 |
| 2 | 532191245 | GEARCASE.HOUSING Price: $11.99 |
| 2 | X-20-1 | Washer Price: Call Us |
| 3 | 532187532 | GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 3 | x-81-1 | Nut Price: Call Us |
| 4 | 52_755_05 | Kit-Drive Price: Call Us |
| 4 | 532191246 | WORM GEAR Price: $32.99 |
| 5 | 52_755_08 | Kit-Drive Parts Price: Call Us |
| 5 | 532183505 | WIRE, FORMED (15966) Price: $5.99 |
| 6 | 52_227_01 | Cap-Drive End Price: Call Us |
| 6 | 532183506 | BEARING Price: $5.99 |
| 7 | 52_070_03 | Armature Price: Call Us |
| 7 | 532183508 | SEAL.OUTPUT.SHAFT Price: $9.99 |
| 8 | 52_211_03 | Bolt Price: Call Us |
| 8 | 532183509 | WASHER Price: $3.99 |
| 9 | 52_227_07 | Cap-Commutator End (Incl. Ref. #10) Price: Call Us |
| 9 | 532183511 | BUSHING Price: $4.99 |
| 10 | 52_755_15 | Kit-Brush Price: Call Us |
| 10 | 532191247 | SHAFT OUTPUT Price: $59.99 |
| 11 | 52_126_09 | Bracket-Mounting Price: Call Us |
| 11 | 532183513 | SCREW Price: $3.99 |
| 12 | 532183514 | SEAL INPUT SHAFT Price: $6.99 |
