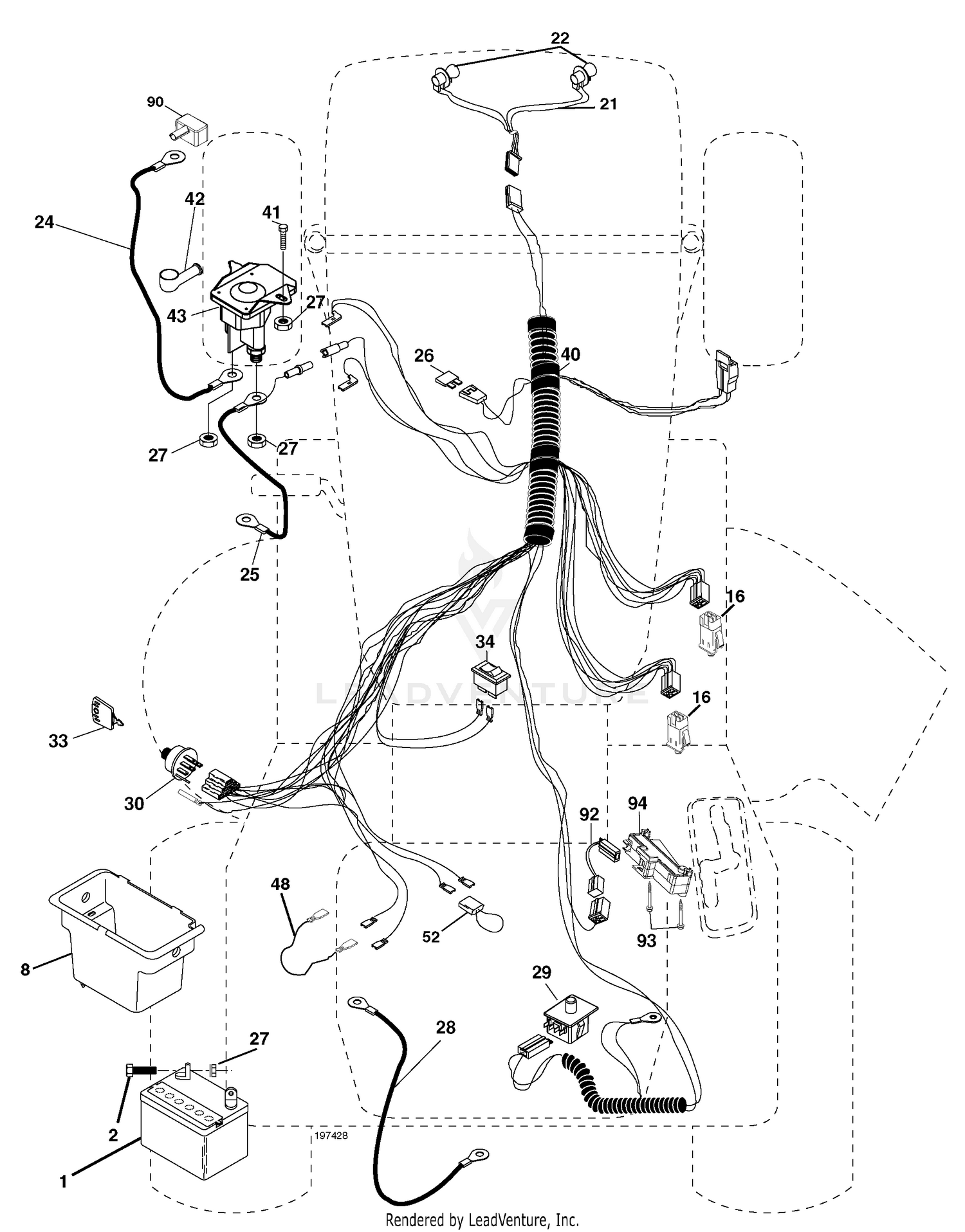

| Ref | Part Number | Description |
|---|
| 1 |
106-7050 |
DISCONTINUED Price: Call Us |
| 1 |
163465 |
Battery Price: Call Us |
| 2 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 5 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 7 |
105-7914-03 |
BRACKET-ENGINE Price: $93.09 |
| 8 |
104-3762-03 |
BRACKET-ENGINE, FRONT (LH) Price: $59.24 |
| 8 |
176689 |
Box Battery Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 10 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 11 |
33114-020 |
SCREW-HH Price: $0.28 |
| 12 |
104-3764-03 |
REAR ENGINE PLATE ASM Price: $72.60 |
| 13 |
325-5 |
SCREW-HH Price: $1.20 |
| 14 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 15 |
104-3778-03 |
PLATE-THROTTLE Price: $11.89 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 17 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 18 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 19 |
48-7890 |
NUT-HEX Price: $0.25 |
| 20 |
136-3817 |
FAN & SPACER ASM This part replaces 105-0129. Price: $277.06 |
| 21 |
175688 |
Harness Asm Light W/4152j Price: Call Us |
| 21 |
74-3650 |
FAN Price: $269.64 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 22 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 23 |
105-0100 |
HOUSING-FLYWHEEL Price: $1,070.10 |
| 24 |
110-9729 |
COUPLING-FLYWHEEL This part replaces 105-0101. Price: $505.85 |
| 24 |
4799J |
Cable Battery 6 Ga. 11"red Price: Call Us |
| 25 |
146147 |
Cable Battery Price: Call Us |
| 25 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 26 |
33114-016 |
SCREW-HH Price: $0.27 |
| 27 |
33114-030 |
SCREW-HH Price: $0.50 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
4207J |
Cable Ground 6 Ga. 12" Black Price: Call Us |
| 28 |
87-3700 |
SCREW-CAP, HH Price: $1.29 |
| 29 |
192749 |
Switch Seat Price: Call Us |
| 29 |
99-6058 |
SCREW-CAP Price: $1.09 |
| 30 |
193350 |
Switch Ign Price: Call Us |
| 30 |
57-6390 |
NUT-JAM Price: $0.89 |
| 31 |
106-5972 |
HARNESS-WIRE Price: $242.11 |
| 32 |
98-9346 |
SENDER-TEMPERATURE Price: $74.58 |
| 33 |
140401 |
Key Ign Price: Call Us |
| 33 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 34 |
104-5222 |
STUD Price: $7.53 |
| 34 |
110712X |
Switch Light/Reset Price: Call Us |
| 35 |
33013-00 |
NUT-HEX Price: $0.25 |
| 36 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 38 |
43-0090 |
SCREW-HH Price: $8.05 |
| 39 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 40 |
197428 |
Harness Ign Price: Call Us |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 41 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 42 |
33114-030 |
SCREW-HH Price: $0.50 |
| 43 |
192507 |
Solenoid Price: Call Us |
| 43 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 44 |
25-8640 |
SCREW-HH Price: $1.09 |
| 45 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 46 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 47 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 48 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 49 |
323-14 |
SCREW-HH Price: $1.34 |
| 50 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 51 |
32128-21 |
NUT-HF Price: $0.39 |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
| 90 |
180449 |
Cover Terminal Battery Price: Call Us |
| 92 |
196615 |
Harness Pigtail Reverse Switch Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-14 x 2.0 Price: Call Us |
