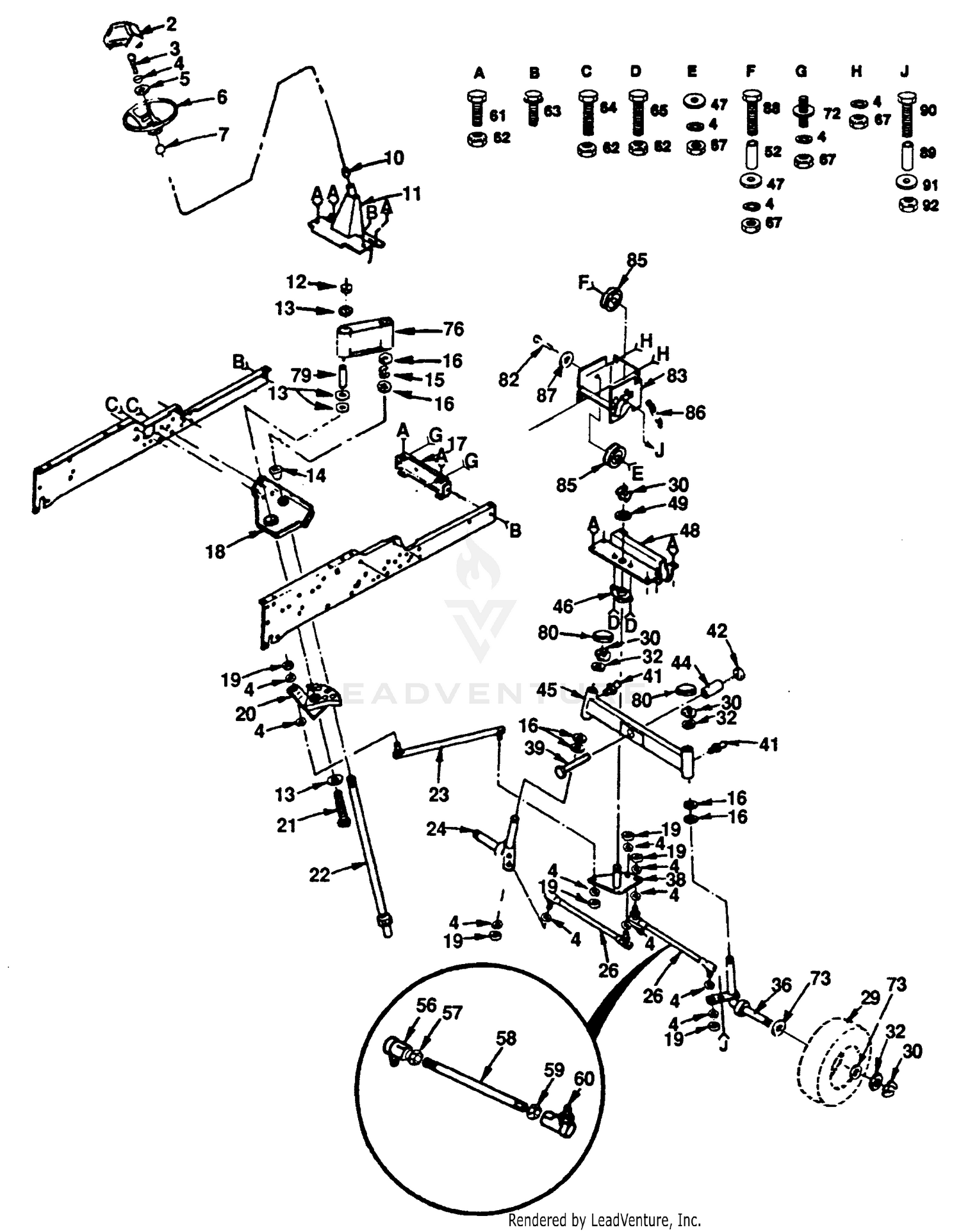

| Ref | Part Number | Description |
|---|
| 1 |
54-7190 |
HOC CAM Price: $63.79 |
| 2 |
52-3100 |
BOLT-HOC ECCENTRIC, LH Price: $47.11 |
| 2 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 3 |
323-7 |
SCREW-HH Price: $0.65 |
| 3 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 4 |
54-7250 |
DISCONTINUED Price: Call Us |
| 4 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 6 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 7 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 7 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532100711. Price: $7.99 |
| 8 |
54-7180 |
DISCONTINUED Price: Call Us |
| 9 |
54-7240 |
LH & CENTER CAM WA Price: $130.87 |
| 10 |
32153-7 |
NUT-LOCK Price: $0.75 |
| 10 |
532009038 |
BEARING T Price: $3.10 |
| 11 |
3290-125 |
SCREW-SET,HSH Price: $1.47 |
| 11 |
532101274 |
SUPPORT ASSY T Price: $57.32 |
| 12 |
3218-2 |
NUT-JAM Price: $0.25 |
| 12 |
596433401 |
Nuts This part replaces 873680800. Price: $2.99 |
| 13 |
32151-84 |
RING-SHAFT, EXT This part replaces 32120-3. Price: $1.89 |
| 13 |
532126881 |
WASHER This part replaces 819172610. Price: $3.99 |
| 14 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 14 |
532104239 |
BEARING-FLANGE GT Price: $9.99 |
| 15 |
54-7140 |
DISCONTINUED Price: Call Us |
| 15 |
812000034 |
Klip Ring Price: $2.99 |
| 16 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 16 |
54-7300 |
LH ECCENTRIC BB BOLT Price: $86.84 |
| 17 |
532005213 |
FRAME BRACKET GT Price: $9.80 |
| 17 |
54-7170 |
EXTENSION SPRING Price: $10.55 |
| 18 |
322-9 |
SCREW-HH Price: $3.09 |
| 18 |
532104240 |
BRACKET This part replaces 532102439. Price: $32.32 |
| 19 |
873610600 |
NUT Price: $2.99 |
| 20 |
532120424 |
SECTOR T Price: $30.99 |
| 21 |
874780880 |
Bolt, Hex 1/2-13 x 5 Grade 5 Price: $2.99 |
| 22 |
532104591 |
SHAFT STEERING GT Price: $64.67 |
| 23 |
532110497 |
DRAG LINK T Price: $49.96 |
| 24 |
532106046 |
SPINDLE ASSY Price: $21.82 |
| 30 |
812000029 |
RING CLIP Price: $3.99 |
| 32 |
532121748 |
WASHER Price: $3.99 |
| 36 |
532106045 |
SPINDLE RH NLA Price: $12.34 |
| 38 |
532108137 |
BELLCRANK T Price: $19.10 |
| 39 |
874781044 |
Bolt, Hex 5/8-11 x 2-3/4 Grade 5 Price: $3.99 |
| 41 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 42 |
873801000 |
NUT, CROWNLOCK #10-24UNC Price: $2.99 |
| 44 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 45 |
532178557 |
AXLE.FRONT.CAST.MACHINE.W/ZERK This part replaces 532137094. Price: $179.99 |
| 46 |
532140342 |
KIT.BUSHING.BELLCRANK This part replaces 532005292. Price: $22.99 |
| 47 |
819131413 |
Washer 13/32 x 7/8 x 13 Gauge Price: $2.99 |
| 48 |
532005284 |
AXLE BRACKET GT Price: $58.76 |
| 49 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Gauge Price: $6.99 |
| 52 |
532102933 |
SPLIT SPACER YTV Price: $2.99 |
| 56 |
532109851 |
JOINT.LH This part replaces 532121161. Price: $27.99 |
| 57 |
873700600 |
NUT Price: $2.99 |
| 58 |
532121159 |
DRAG LINK This part replaces 532007919. Price: $44.18 |
| 59 |
873360600 |
NUT Price: $4.99 |
| 60 |
532121160 |
JOINT.RH Price: $19.99 |
| 61 |
874760612 |
BOLT Price: $3.99 |
| 62 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 63 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 64 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 67 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 72 |
532677928 |
PIN This part replaces 532106615. Price: $4.99 |
| 73 |
532121749 |
WASHER Price: $2.99 |
| 76 |
532121177 |
COLLAR Price: $13.56 |
| 79 |
532120199 |
TUBE T Price: $7.99 |
| 80 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 82 |
874930632 |
BOLT.375-16 This part replaces 874760632. Price: $5.99 |
| 83 |
532120542 |
IDLER BRKT T Price: $34.17 |
| 85 |
532124858 |
IDLER-INSIDE T Price: $32.98 |
| 86 |
532007190 |
SPRING T Price: $7.82 |
| 87 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 88 |
874760636 |
BOLT Price: $4.99 |
| 89 |
532100644 |
BUSHING LT Price: $3.99 |
| 90 |
596580801 |
Bolts This part replaces 874930516. Price: $2.99 |
| 91 |
734116541 |
WASHER - 25X8.5X2.3 This part replaces 819111416. Price: $4.99 |
