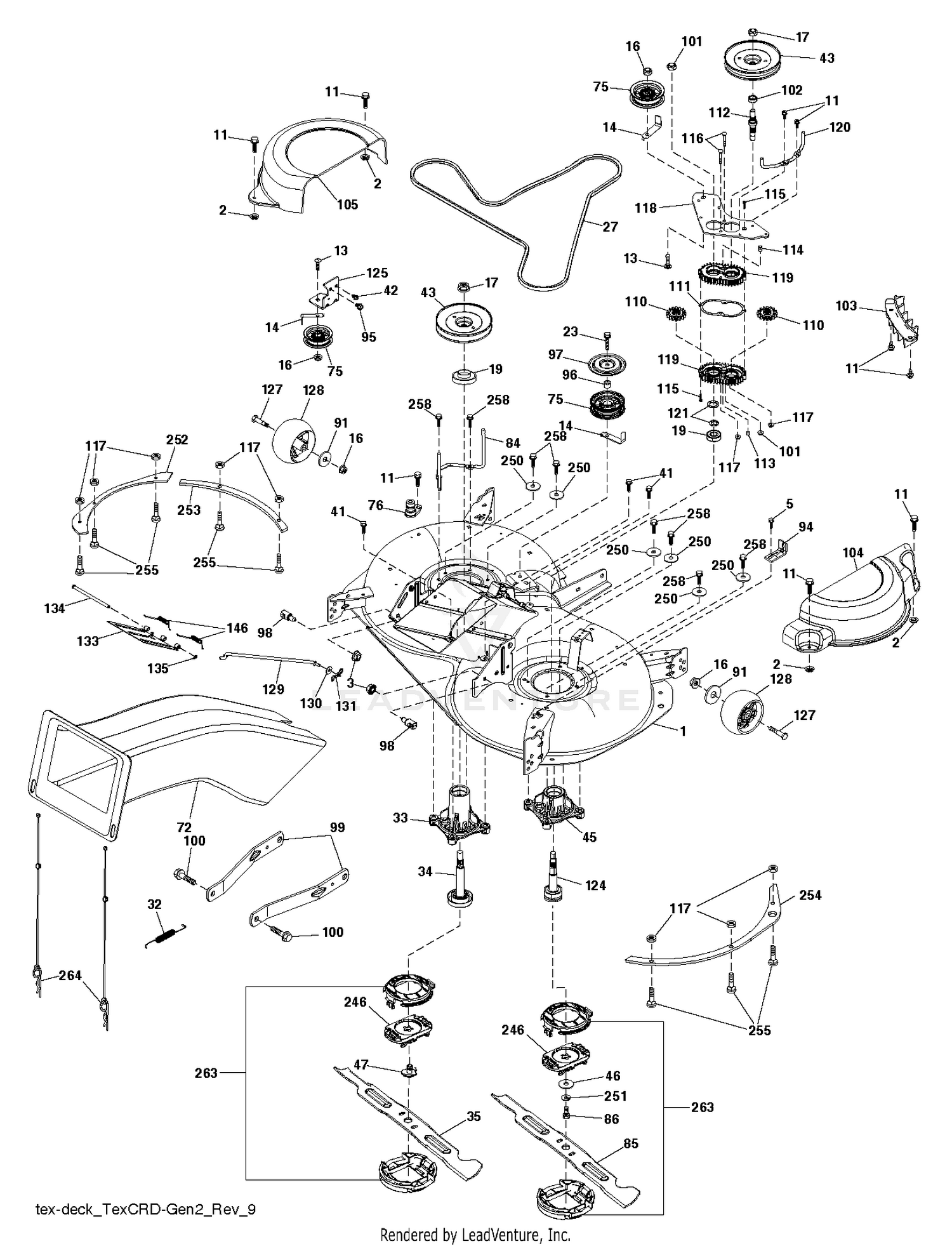

| Ref | Part Number | Description |
|---|
| 1 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 1 |
547664501 |
KIT.SVC.DECK.WLD.97.EZ_MUL.428 This part replaces 580465302. Price: $449.99 |
| 2 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 2 |
98-3905 |
TUBE ASM Price: $65.25 |
| 3 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 4 |
112-6554 |
MOW MANIFOLD BLOCK KIT This part replaces 99-6978. Price: $3,269.67 |
| 5 |
3256-76 |
WASHER-FLAT Price: $1.42 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 6 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 7 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 8 |
354-79 |
CAP-DUST Price: $7.81 |
| 9 |
98-8199 |
BRACKET-SWITCH Price: $71.51 |
| 10 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 11 |
329-3 |
SCREW-HH Price: $0.22 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
98-3906 |
TUBE ASM Price: $53.45 |
| 13 |
104-0065 |
HYD HOSE ASM Price: $189.93 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
340-105 |
FITTING-ELBOW, 90 DEG Price: $39.67 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 16 |
104-0066 |
HYD HOSE ASM Price: $260.16 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 27 |
583581401 |
BELT.97CM.ELECTRIC This part replaces 532445834. Price: $54.99 |
| 32 |
583584001 |
SPRING.DRVE.107&97CM.ELEC.DECK This part replaces 532446205. Price: $9.99 |
| 34 |
587820201 |
KIT,MANDREL,NONGREASE,REVOL This part replaces 580854701. Price: $32.99 |
| 35 |
580983301 |
BLADE.REVOLUTION.97CM.LHS Price: $34.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 43 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 45 |
581650501 |
MANDREL.ASM.SHORT.LH/THD. This part replaces 581650801. Price: $64.99 |
| 47 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 72 |
581454103 |
CHUTE.SLOTTED.HOLES.TEX.CRD.II Price: $79.99 |
| 75 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 84 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 85 |
580983401 |
BLADE.REVOLUTION.97CM.RHS Price: $37.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 91 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 94 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 96 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 101 |
596040601 |
Hardware This part replaces 873680900. Price: $3.99 |
| 102 |
532402511 |
SPACER BEARING Price: $3.99 |
| 103 |
583514601 |
GUARD.FRONT.VENT.97.CRD This part replaces 532436992. Price: $6.99 |
| 105 |
583534001 |
LH.MANDREL.COVER.97.TEX.CRD This part replaces 532438744. Price: $24.99 |
| 110 |
587934801 |
CRD.SPUR.GEAR Price: $11.99 |
| 111 |
583514001 |
GASKET.GEARCASE.97.CRD (2 2) This part replaces 532436979. Price: $4.99 |
| 112 |
583571601 |
SHAFT.CRD.GEARCASE.ADAPTER This part replaces 532443852. Price: $14.99 |
| 114 |
588170501 |
VENT.BREATHER.1/8 NPT Price: $8.99 |
| 115 |
583608901 |
SCREW.TORX#10-24X1 This part replaces 818031016. Price: $2.99 |
| 116 |
594976601 |
Bolts This part replaces 872110414. Price: $1.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
583514401 |
ARM.CLUTCHING.97.TEX This part replaces 532436989. Price: $17.99 |
| 119 |
583527601 |
GEAR.CASE.SUBASM. This part replaces 532438166. Price: $59.99 |
| 120 |
583514501 |
KEEPER.BELT.RH.MANDREL.97.CRD This part replaces 532436991. Price: $6.99 |
| 121 |
583514101 |
WASHER.687.I.D.X.1 OD.X.062THK This part replaces 532436985. Price: $2.99 |
| 124 |
581650501 |
MANDREL.ASM.SHORT.LH/THD. This part replaces 581650701. Price: $64.99 |
| 125 |
583548001 |
IDLER.BRACKET.ASM. This part replaces 532440420. Price: $29.99 |
| 127 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 129 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 130 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 133 |
583505301 |
DOOR.MULCH This part replaces 532435538. Price: $11.99 |
| 134 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 135 |
532437988 |
E-RING.5/16" Price: $7.99 |
| 146 |
583582001 |
SPRING.EZ.MULCH.DOOR This part replaces 532445896. Price: $2.99 |
| 246 |
580954003 |
HOLDER.BLADE.REVOLUTION Price: $179.99 |
| 250 |
819111212 |
WASHER Price: $4.99 |
| 251 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 252 |
585308705 |
PLATE.REINFORCEMENT.X431 Price: $9.99 |
| 253 |
585308805 |
PLATE.REINFORCEMENT.LHS.X431 Price: $5.99 |
| 254 |
585309005 |
PLATE.REINFORCEMENT.LHS.X431 Price: $11.99 |
| 255 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 258 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 263 |
586638501 |
CAP.REVOLUTION ASM Price: $29.99 |
| 264 |
589392902 |
Retainers This part replaces 589392901. Price: $3.99 |
