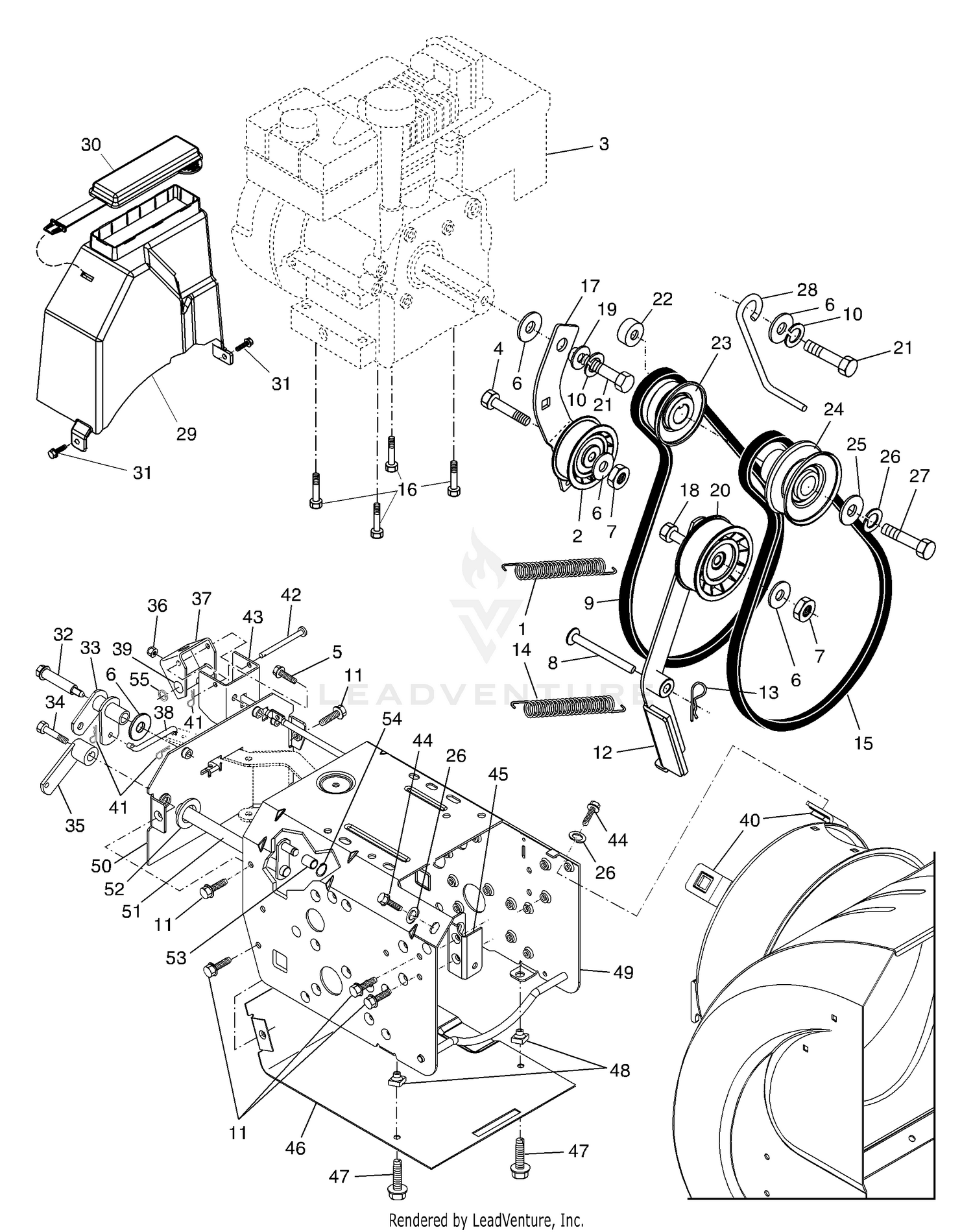

| Ref | Part Number | Description |
|---|
| 1 |
181044 |
Spring, Traction Idler Price: Call Us |
| 1 |
93-0032-03 |
HOUSING-SCREEN, FRONT Price: $455.35 |
| 2 |
180522 |
Pulley, Idler (2-1/4) Price: Call Us |
| 2 |
75-3390-03 |
BRACKET-BACKLAP Price: $11.98 |
| 3 |
66-8800 |
RELAY Price: $87.56 |
| 4 |
74780520 |
Screw, Hex Head 5/16-18 x 1-1/4 Price: Call Us |
| 4 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 5 |
150078 |
Screw, Hex Washer Head 5/16-18 x 3/4 Price: Call Us |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
59289 |
Washer, Flat Price: Call Us |
| 6 |
93-6684 |
DECAL-BACKLAP Price: $7.84 |
| 7 |
322-2 |
SCREW-HH Price: $0.69 |
| 7 |
73930500 |
Nut, Jam, Lock 5/16-18 Price: Call Us |
| 8 |
175330 |
Pin, Idler Pivot Price: Call Us |
| 8 |
93-3623 |
STRIP-SEALING, RADIATOR Price: $12.44 |
| 9 |
179092 |
V-Belt, Traction Drive Price: Call Us |
| 9 |
93-0077 |
HOSE ASM Price: $130.09 |
| 10 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
17490508 |
Screw, Hex Washer Head 5/16-18 x 1/2 Price: Call Us |
| 11 |
93-0078 |
HOSE ASM Price: $189.33 |
| 12 |
179259 |
Impeller Idler Arm Assembly Price: Call Us |
| 12 |
92-4999 |
FITTING Price: $67.92 |
| 13 |
75-1040 |
COOLER-OIL Price: $761.60 |
| 13 |
85179 |
Retainer, Hairpin Price: Call Us |
| 14 |
178828 |
Spring, Brake Price: Call Us |
| 14 |
93-3624-03 |
PLATE-RETAINING Price: $8.64 |
| 15 |
183533 |
V-Belt, Impeller Drive Price: Call Us |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
192306 |
Screw, Hex Head 3/8-16 x 1-1/4 Price: Call Us |
| 16 |
98-3928 |
CLAMP-HOSE Price: $13.58 |
| 17 |
179354X008 |
Arm, Idler Price: Call Us |
| 18 |
24-0760 |
DISCONTINUED Price: Call Us |
| 18 |
74780524 |
Screw, Hex Head 5/16-18 x 1-1/2 Price: Call Us |
| 19 |
175331 |
Bushing, Idler Pivot Price: Call Us |
| 19 |
340-124 |
ADAPTER Price: $23.18 |
| 20 |
180523 |
Pulley, Idler (2-3/4) Price: Call Us |
| 20 |
3269-13 |
RIVET-POP Price: $0.25 |
| 21 |
100-3815 |
GROMMET-RUBBER Price: $8.15 |
| 21 |
74610516 |
Screw, Hex Head 5/16-24 x 1 Price: Call Us |
| 22 |
179371 |
Spacer, Engine Pulley Price: Call Us |
| 22 |
93-1374 |
LATCH-SWELL Price: $27.60 |
| 23 |
180478 |
Pulley, Engine, Traction Drive Price: Call Us |
| 23 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 24 |
179157 |
Pulley, Engine, Impeller Drive Price: Call Us |
| 25 |
62735 |
Washer, Flat 3/8 Price: Call Us |
| 26 |
104-9257-03 |
DISCONTINUED Price: Call Us |
| 26 |
850263 |
Washer, Lock, Helical Price: Call Us |
| 27 |
851084 |
Screw, Hex Head 3/8-24 x 1-3/8 Price: Call Us |
| 28 |
155452 |
Guide, Belt Price: Call Us |
| 29 |
192193 |
Cover, Belt Price: Call Us |
| 30 |
178830 |
Cover, Toolbox Price: Call Us |
| 30 |
70-1480 |
RELAY Price: $105.19 |
| 31 |
17490408 |
Screw, Hex Head 1/4-20 x 1/2 Price: Call Us |
| 31 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 32 |
179256 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
187853 |
Bellcrank Shifter Price: Call Us |
| 33 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 34 |
180401 |
Screw, Hex Head 1/4-28 x 3/4 Price: Call Us |
| 35 |
179240 |
Arm, Auger Control Price: Call Us |
| 36 |
73800500 |
Nut, Lock 5/16-18 Price: Call Us |
| 37 |
178833X428 |
Bellcrank Assembly Price: Call Us |
| 38 |
187101 |
Link, Speed Control Price: Call Us |
| 39 |
192110 |
Trunnion, Clutch Price: Call Us |
| 40 |
178890 |
Nut, Cage 3/8-16 Price: Call Us |
| 41 |
700279 |
Hairpin, Cotter 3/32 x 1/2 Price: Call Us |
| 42 |
179065 |
Pin, Bellcrank Price: Call Us |
| 43 |
179063X428 |
Bracket, Bellcrank Price: Call Us |
| 44 |
74780624 |
Screw, Hex Head 3/8-16 x 1-1/2 Price: Call Us |
| 45 |
175324X479 |
Pivot Bracket, Impeller Idler Arm Price: Call Us |
| 46 |
178624X479 |
Pan, Frame Bottom Price: Call Us |
| 47 |
71020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: Call Us |
| 48 |
181156 |
Nut, Speed 5/16-18 Price: Call Us |
| 49 |
183852X428 |
Frame Assembly Price: Call Us |
| 50 |
187715X428 |
Plate, Frame End Price: Call Us |
| 51 |
192463X008 |
Shaft, Auger Control Price: Call Us |
| 52 |
57079 |
Washer, Hardened Price: Call Us |
| 53 |
192275 |
Roller Price: Call Us |
| 54 |
192147 |
Ring, Crescent Price: Call Us |
| 55 |
12000002 |
E-Ring Price: Call Us |
