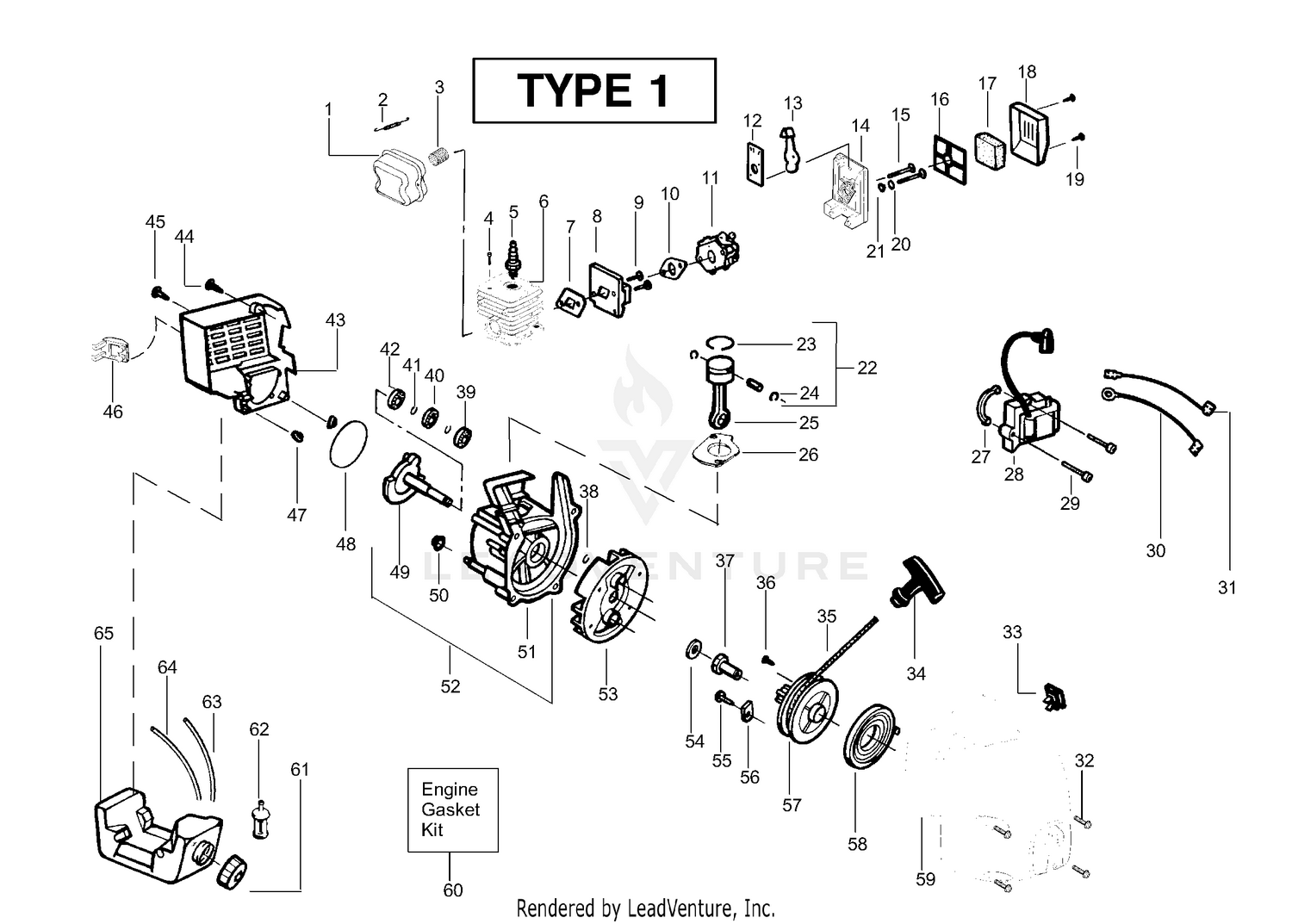

| Ref | Part Number | Description |
|---|
| 1 |
32122-14 |
SCREW-PPH Price: $1.02 |
| 2 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 2 |
530042088 |
Muffler Spring Price: $1.99 |
| 3 |
3-8993 |
DISCONTINUED Price: Call Us |
| 3 |
530071391 |
Screen-Spark Arrestor Price: $7.99 |
| 4 |
5-2512 |
BUSHING Price: $15.80 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
5-1636 |
DISCONTINUED Price: Call Us |
| 5 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 6 |
3-8991 |
DISCONTINUED Price: Call Us |
| 6 |
530012416 |
Cylinder This part replaces 530069757. Price: $17.99 |
| 7 |
3-8988 |
DISCONTINUED Price: Call Us |
| 7 |
530071329 |
Gasket-Cylind./Carb. Price: $4.99 |
| 8 |
5-1635 |
DISCONTINUED Price: Call Us |
| 8 |
530069758 |
Kit - Carb. Adaptor Price: $8.99 |
| 9 |
3217-12 |
NUT-HEX Price: $3.12 |
| 9 |
530015849 |
Screw Price: $1.99 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
530071329 |
Gasket-Carb. Price: $4.99 |
| 11 |
329649 |
Nut Price: Call Us |
| 12 |
3-8514 |
WASHER-THRUST Price: $1.58 |
| 12 |
530038747 |
Choke Plate Mounting Price: $1.99 |
| 13 |
237-82 |
DISCONTINUED Price: Call Us |
| 13 |
530035499 |
Choke Shutter Price: $1.99 |
| 14 |
3-8864 |
DISCONTINUED Price: Call Us |
| 14 |
530052431 |
Air Box Price: $1.99 |
| 15 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 15 |
530015887 |
Screw Price: $1.99 |
| 16 |
256-149 |
DISCONTINUED Price: Call Us |
| 16 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 17 |
3-8975 |
DISCONTINUED Price: Call Us |
| 17 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 18 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 18 |
530036568 |
Cover-Air Filter Price: $1.99 |
| 19 |
5-3928 |
DISCONTINUED Price: Call Us |
| 19 |
530015957 |
Screw Price: $1.99 |
| 20 |
3220-17 |
NUT-JAM, LH Price: $6.25 |
| 20 |
530015852 |
Spacer-Choke Price: $1.99 |
| 21 |
5-4785 |
FRONT PUSH ROD WA Price: $112.24 |
| 21 |
530015254 |
Washer Price: $1.99 |
| 22 |
3217-9 |
NUT-HH Price: $0.37 |
| 23 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 23 |
530053565 |
Ring-Piston Price: $1.28 |
| 24 |
5-1091 |
SPACER Price: $4.98 |
| 24 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 25 |
3-8992 |
DISCONTINUED Price: Call Us |
| 25 |
530069615 |
Assy-Connecting Price: $14.99 |
| 26 |
3251-2 |
SCREW-PPH Price: $0.27 |
| 26 |
530071329 |
Gasket-Cylinder Price: $4.99 |
| 27 |
3-9347 |
DISCONTINUED Price: Call Us |
| 27 |
530036145 |
Spacer-Module Price: $1.99 |
| 28 |
3-9373 |
DISCONTINUED Price: Call Us |
| 28 |
545081826 |
Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 29 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 29 |
530015954 |
Screw Price: $1.99 |
| 30 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 30 |
530054448 |
Assy-Ground Wire Price: $1.99 |
| 31 |
3217-26 |
NUT-HEX Price: $0.25 |
| 31 |
530054449 |
Assy-Lead Wire Price: $1.99 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 33 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 33 |
530069572 |
Kit - Switch Price: $4.99 |
| 34 |
321-2 |
SCREW-HH Price: $2.79 |
| 34 |
530027569 |
Handle-Starter Price: $1.99 |
| 35 |
2710-20 |
LINK-OFFSET Price: $10.06 |
| 35 |
530071325 |
Kit - Rope Price: $3.99 |
| 36 |
5-3887 |
DISCONTINUED Price: Call Us |
| 36 |
530016326 |
Screw Price: $1.99 |
| 37 |
28-1220 |
SPROCKET ASM *R Price: $503.87 |
| 37 |
530027953 |
Coupling-Drive Price: $1.99 |
| 38 |
321-11 |
SCREW-HH Price: $0.36 |
| 38 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 39 |
28-1180 |
DISCONTINUED Price: Call Us |
| 39 |
530032124 |
Bearing-Outer Price: $4.99 |
| 40 |
5-1895 |
REEL DRIVE PAD Price: $33.67 |
| 40 |
530019179 |
Seal-C'case Price: $2.99 |
| 41 |
256-161 |
DISCONTINUED Price: Call Us |
| 41 |
530015945 |
Retainer Ring-C'case Price: $1.99 |
| 42 |
256-205 |
DISCONTINUED Price: Call Us |
| 42 |
530032125 |
Bearing-Inner Price: $11.99 |
| 43 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 43 |
530049233 |
Shroud-Rear Price: $3.33 |
| 44 |
42-3310 |
DISCONTINUED This part replaces 28-1170. Price: Call Us |
| 44 |
530015934 |
Screw Price: $1.99 |
| 45 |
42-3300 |
DISCONTINUED This part replaces 28-1290. Price: Call Us |
| 45 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 46 |
3-8838 |
DISCONTINUED Price: Call Us |
| 46 |
530054536 |
Guard-Muffler Price: $1.99 |
| 47 |
3-8786 |
DISCONTINUED Price: Call Us |
| 47 |
530036793 |
Isolator-Shroud Price: $5.99 |
| 48 |
3217-6 |
NUT-HEX Price: $1.19 |
| 48 |
530071329 |
O-Ring-C'case/Shrd Price: $4.99 |
| 49 |
32534 |
Lockwasher Price: Call Us |
| 49 |
530012413 |
Assy-Crankshaft Price: $14.99 |
| 50 |
530036792 |
Isolator-Crankcase Price: $4.99 |
| 50 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 51 |
5-0741 |
DISCONTINUED Price: Call Us |
| 52 |
5-1937 |
DISCONTINUED Price: Call Us |
| 53 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 53 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 54 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 54 |
530015828 |
Washer-Flat Price: $1.99 |
| 55 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 55 |
530016224 |
Screw Price: $1.99 |
| 56 |
3-8863 |
DISCONTINUED Price: Call Us |
| 56 |
530053985 |
Retainer-Can Price: $0.99 |
| 57 |
329649 |
Nut Price: Call Us |
| 58 |
3220-7 |
NUT-JAM Price: $4.09 |
| 58 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 59 |
5-1627 |
DISCONTINUED Price: Call Us |
| 59 |
530071415 |
Assy. - Fan Housing Price: $14.99 |
| 60 |
3-8955 |
DISCONTINUED Price: Call Us |
| 61 |
5-3877 |
DISCONTINUED Price: Call Us |
| 61 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 62 |
3-9038 |
DISCONTINUED Price: Call Us |
| 62 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 63 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 64 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
