| Ref | Part Number | Description |
|---|
| 1 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 2 |
104-9325 |
SPEEDOMETER KIT,RM5000 SERIES This part replaces 85-4420. Price: $449.92 |
| 3 |
3290-489 |
KNOB Price: $46.30 |
| 4 |
218-498 |
NUT-LOCK Price: $0.68 |
| 5 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 7 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 8 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 9 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 10 |
218-446 |
NUT-HEX Price: $6.09 |
| 11 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 12 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 13 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 14 |
99-8961 |
DECAL-PANEL CONTROL Price: $52.64 |
| 15 |
75-6270-03 |
COVER-BOX, CONTROL This part replaces 75-6270. Price: $87.82 |
| 16 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 17 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 18 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
27-2360 |
SWITCH Price: $46.56 |
| 22 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 23 |
93-7587 |
BRACKET-FUSE BLOCK/PANEL Price: $19.16 |
| 24 |
75-5740-03 |
BOX-CONTROL ASM This part replaces 75-5740. Price: $261.87 |
| 26 |
321-39 |
SCREW-HH Price: $0.42 |
| 27 |
94-6767 |
DECAL-FUSES Price: $11.45 |
| 29 |
3254-20 |
WASHER-LOCK, INT This part replaces 218-589. Price: $1.29 |
| 31 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 32 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 33 |
321-15 |
SCREW-HH Price: $0.61 |
| 34 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 35 |
322-3 |
SCREW-HH Price: $0.79 |
| 36 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 37 |
98-2195 |
JOYSTICK Price: $520.10 |
| 38 |
94-8104 |
MICROSWITCH Price: $71.74 |
| 39 |
94-8103 |
DISCONTINUED Price: Call Us |
| 40 |
3290-488 |
DISCONTINUED Price: Call Us |
| 45 |
3273-26 |
SCREW-HSH Price: $0.41 |
| 46 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 47 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 50 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 53 |
2412-126 |
R-CLAMP Price: $2.51 |
| 54 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 55 |
32128-33 |
NUT-HF Price: $0.25 |
| 56 |
99-8960 |
DISCONTINUED Price: Call Us |
| 58 |
93-3625 |
SPRING-RETURN Price: $20.57 |
| 59 |
75-5780 |
HINGE-STEEL Price: $18.08 |
| 60 |
93-8744 |
RIVET-BLIND Price: $0.75 |
| 61 |
93-8053 |
DECAL Price: $14.96 |
| 501788801 |
501788801 |
SPRING Price: $12.99 |
| 501788901 |
501788901 |
BOLT Price: $4.99 |
| 501789101 |
501789101 |
Washer Price: $2.12 |

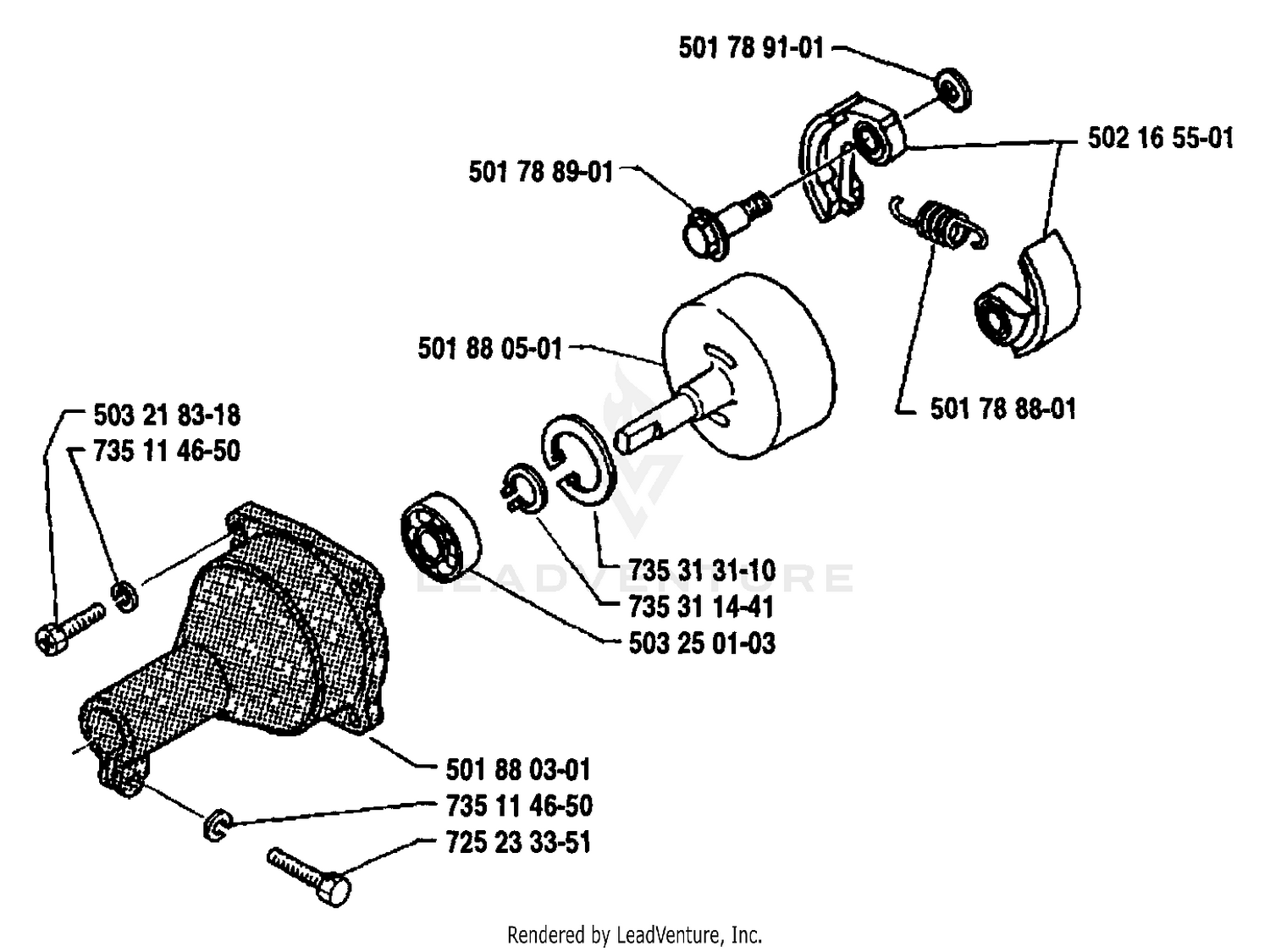

| 501880301 |
501880301 |
CLUTCH HOUSING CPL Price: $47.46 |
| 501880501 |
501880501 |
Price: $35.93 |
| 503218318 |
503218318 |
Screw W/Washer 5x20 Price: $2.75 |
| 503250103 |
503250103 |
Ball Bearing Price: $9.00 |
| 725233351 |
725233351 |
SCREW M6S 5X25 Price: $2.99 |
| 735114650 |
735114650 |
SPRING WASHER 5.3X10 Price: $3.99 |
| 735311441 |
735311441 |
Lock Ring Price: $1.63 |
| 735313110 |
735313110 |
RETAINING RING Price: $2.99 |
