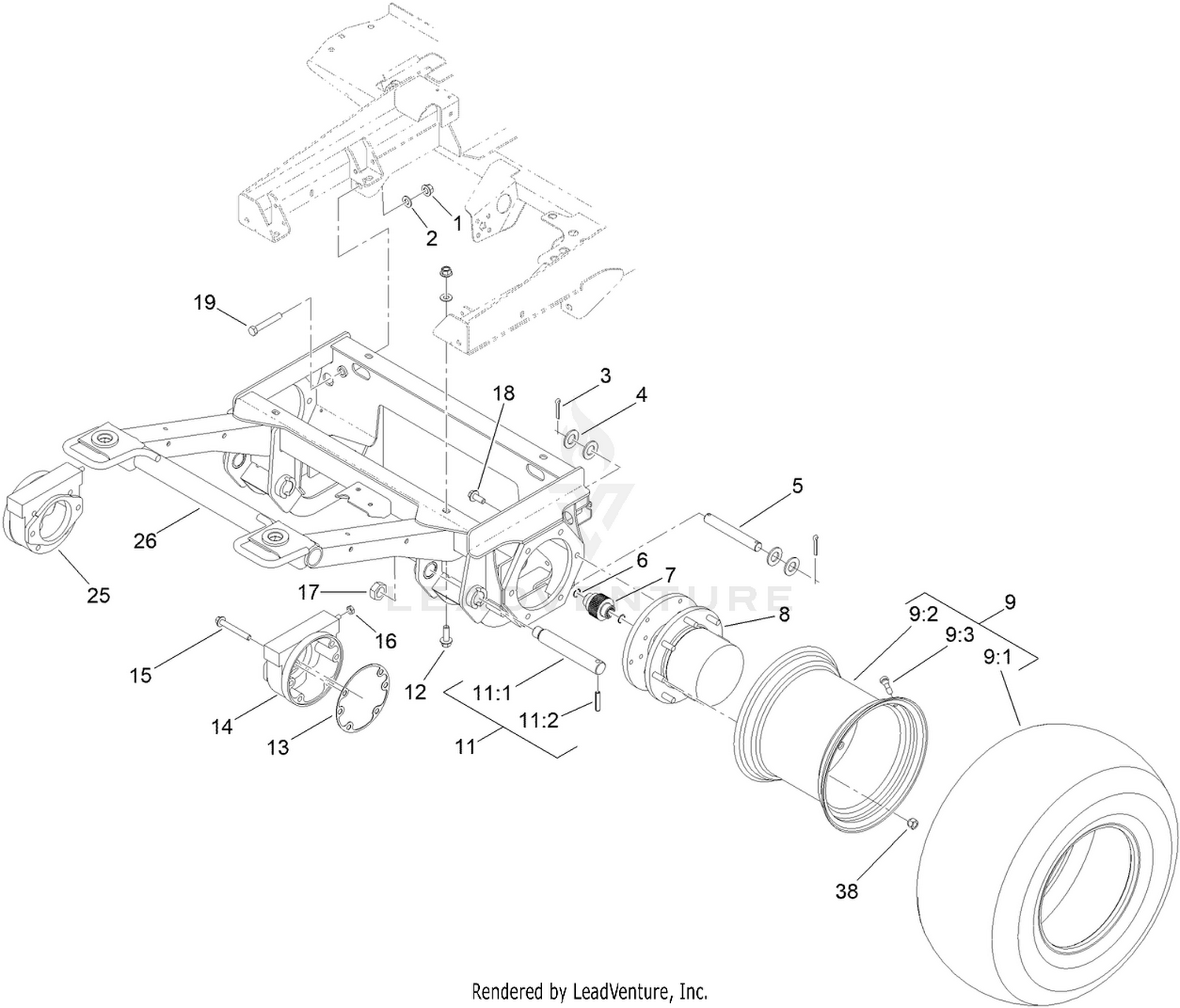

| Ref | Part Number | Description |
|---|
| 1 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
3272-30 |
PIN-COTTER Price: $0.47 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 5 |
110-6006 |
PIN-CLEVIS Price: $31.49 |
| 6 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 7 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 8 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 136-2913. Price: $3,119.29 |
| 11 |
140-6337 |
PIN ASM Price: $55.25 |
| 12 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 13 |
93-7984 |
GASKET Price: $20.21 |
| 14 |
100-3070 |
LH BRAKE ASM Price: $802.37 |
| 15 |
33106-080 |
SCREW-HHF Price: $2.80 |
| 16 |
3218-4 |
NUT-JAM Price: $0.49 |
| 17 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 19 |
325-13 |
SCREW-HH Price: $3.57 |
| 25 |
100-3069 |
RH BRAKE ASM Price: $802.37 |
| 26 |
132-6250-03 |
FRAME-FRONT Price: $2,505.29 |
