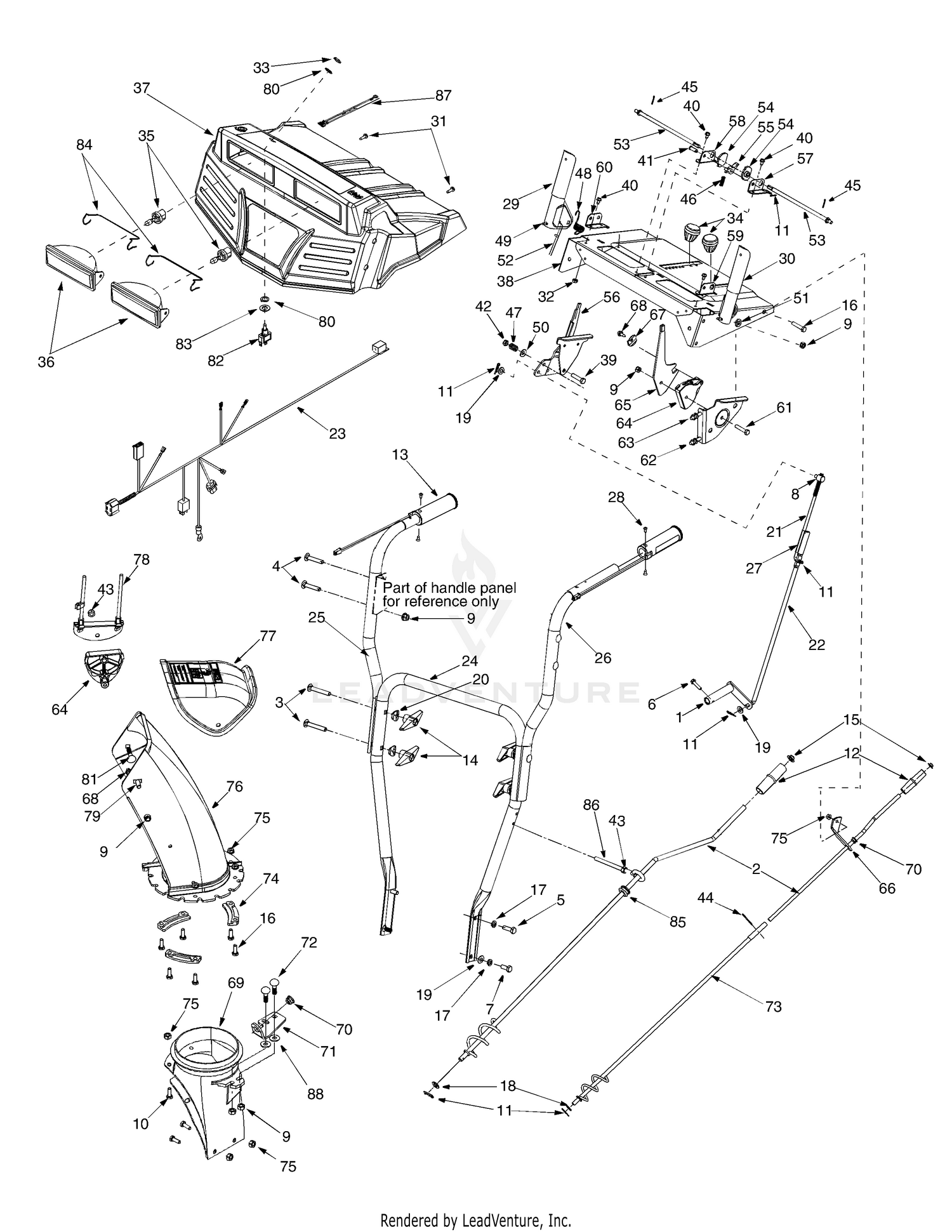

| Ref | Part Number | Description |
|---|
| 1 |
684-0008A-0637 |
SHIFT ARM ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-0008A. Price: |
| 3 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 4 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 5 |
710-0643 |
Hex Bolt, 5/16-18 x 1.0 Price: $5.99 |
| 6 |
710-0788 |
Screw, 1/4-20 x 1.0 Price: $6.20 |
| 7 |
710-1880 |
Hex Bolt, 5/16-18 x 0.75 Price: $4.02 |
| 8 |
911-0677 |
Ferrule This part replaces 711-0677. Price: $15.59 |
| 9 |
712-04063 |
Flange Lock Nut Price: $3.56 |
| 10 |
710-0703 |
Carriage Screw, 1/4-20 x.75 Price: $3.66 |
| 11 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 12 |
720-0201A |
Chute Directional Control Knob Price: $9.62 |
| 14 |
720-0284 |
Handle Knob Assembly Price: $4.08 |
| 15 |
726-0100 |
Push Cap Price: $3.75 |
| 16 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 17 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 18 |
736-0185 |
Flat Washer Price: $3.43 |
| 19 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 20 |
736-0451 |
Saddle Washer Price: $3.75 |
| 21 |
747-0620A |
SHIFT ROD Not Available Price: |
| 22 |
747-0621 |
LOWER SHIFT ROD Not Available Price: |
| 24 |
749-0951A |
LOWER HANDLE Not Available This part replaces 749-0951. Price: |
| 25 |
749-0952A |
UPPER HANDLE (RH) Not Available Price: |
| 26 |
749-0953A |
UPPER HANDLE (LH) Not Available Price: |
| 27 |
950-0963 |
Shift Rod Connector This part replaces 750-0963. Price: $30.48 |
| 28 |
710-0837 |
Screw, #10-16 x.625 Price: $3.85 |
| 29 |
684-0036A |
HANDLE-ENGAGEMENT (RH) Price: $39.15 |
| 30 |
684-0037B |
HANDLE-ENGAGEMENT (LH) Not Available Price: |
| 31 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 32 |
712-0271 |
Hex Sems Nut, 1/4-20 Price: $3.78 |
| 34 |
920-0232 |
SHIFT KNOB This part replaces 720-0232. Price: $9.11 |
| 35 |
925-1759 |
Headlight Bulb This part replaces 725-1759. Price: $47.83 |
| 36 |
925-1672 |
Light Assembly This part replaces 725-1672. Price: $78.41 |
| 38 |
684-0102A |
HANDLE PANEL ASSEMBLY Not Available This part replaces 684-0102. Price: |
| 39 |
710-0459A |
Hex Bolt, 3/8-24 x 1.5 Price: $6.50 |
| 40 |
710-0599 |
Screw, 1/4-20 x 0.5 Price: $3.86 |
| 41 |
711-0653 |
Clevis Pin Price: $3.37 |
| 42 |
712-0116 |
Jam Lock Nut, 3/8-24 Price: $3.95 |
| 43 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 45 |
714-0507 |
Cotter Pin Price: $3.93 |
| 46 |
732-0145 |
Compression Spring Price: $3.74 |
| 47 |
732-0193 |
Compression Spring Price: $4.11 |
| 48 |
732-0746 |
Torsion Spring Price: $4.06 |
| 49 |
735-0199A |
Rubber Bumper Price: $6.89 |
| 50 |
736-0105 |
Bell Washer Price: $3.96 |
| 51 |
736-0509 |
Flat Washer Not Available Price: |
| 52 |
946-0778 |
Cable "Z" Fitting This part replaces 746-0778. Price: $9.14 |
| 53 |
747-0877 |
Cam Rod Price: $19.94 |
| 54 |
748-0362 |
Handle Lock Cam Not Available Price: |
| 55 |
948-0363 |
Handle Lock Pawl This part replaces 748-0363. Price: $14.41 |
| 56 |
753-05395 |
KIT-SHIFT HANDLE:S Not Available This part replaces 784-5619A. Price: |
| 57 |
784-5679-0637 |
HANDLE BRACKET (LH) Not Available This part replaces 784-5679. Price: |
| 58 |
784-5680-0637 |
Handle Support Bracket - RH This part replaces 784-5680. Price: $10.88 |
| 59 |
784-5681 |
Support Bracket LH Price: $7.91 |
| 60 |
784-5682-0637 |
Handle Support Bracket - RH This part replaces 784-5682. Price: $24.80 |
| 61 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 62 |
946-0901 |
Chute Deflector Cable w/ Clip This part replaces 746-0901. Price: $56.23 |
| 63 |
946-0896 |
Chute Deflector Control Cable This part replaces 746-0896. Price: $49.85 |
| 64 |
731-1313C |
Chute Cable Guide Price: $10.46 |
| 65 |
784-5604A-0637 |
Chute Tilt Handle This part replaces 784-5604. Price: $22.34 |
| 67 |
736-0506A |
SPECIAL WASHER Not Available Price: |
| 68 |
710-0895 |
Hi-Lo Screw, 1/4-15 x 0.75 Price: $5.82 |
| 69 |
731-1379D |
Adapter Chute This part replaces 731-1379C. Price: $57.72 |
| 70 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 71 |
784-5647-0637 |
Chute Crank Bracket This part replaces 784-5647. Price: $12.51 |
| 72 |
710-0451 |
Carriage Bolt, 5/16-18 x 0.75 Price: $3.53 |
| 74 |
731-0851A |
Flange Keeper Price: $3.90 |
| 75 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 76 |
731-1300E |
Lower Chute This part replaces 731-1300C. Price: $49.82 |
| 77 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 78 |
784-5594 |
Cable Bracket Price: $9.44 |
| 79 |
710-04071 |
Carriage Bolt, 5/16-18 x 1.0 Price: $3.94 |
| 81 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.5 Price: $3.66 |
| 84 |
747-1136 |
Headlight Retainer Price: $10.32 |
| 85 |
N/A |
Rubber Grommet |
| 86 |
N/A |
Eye Bolt |
| 87 |
N/A |
Light Harness |
