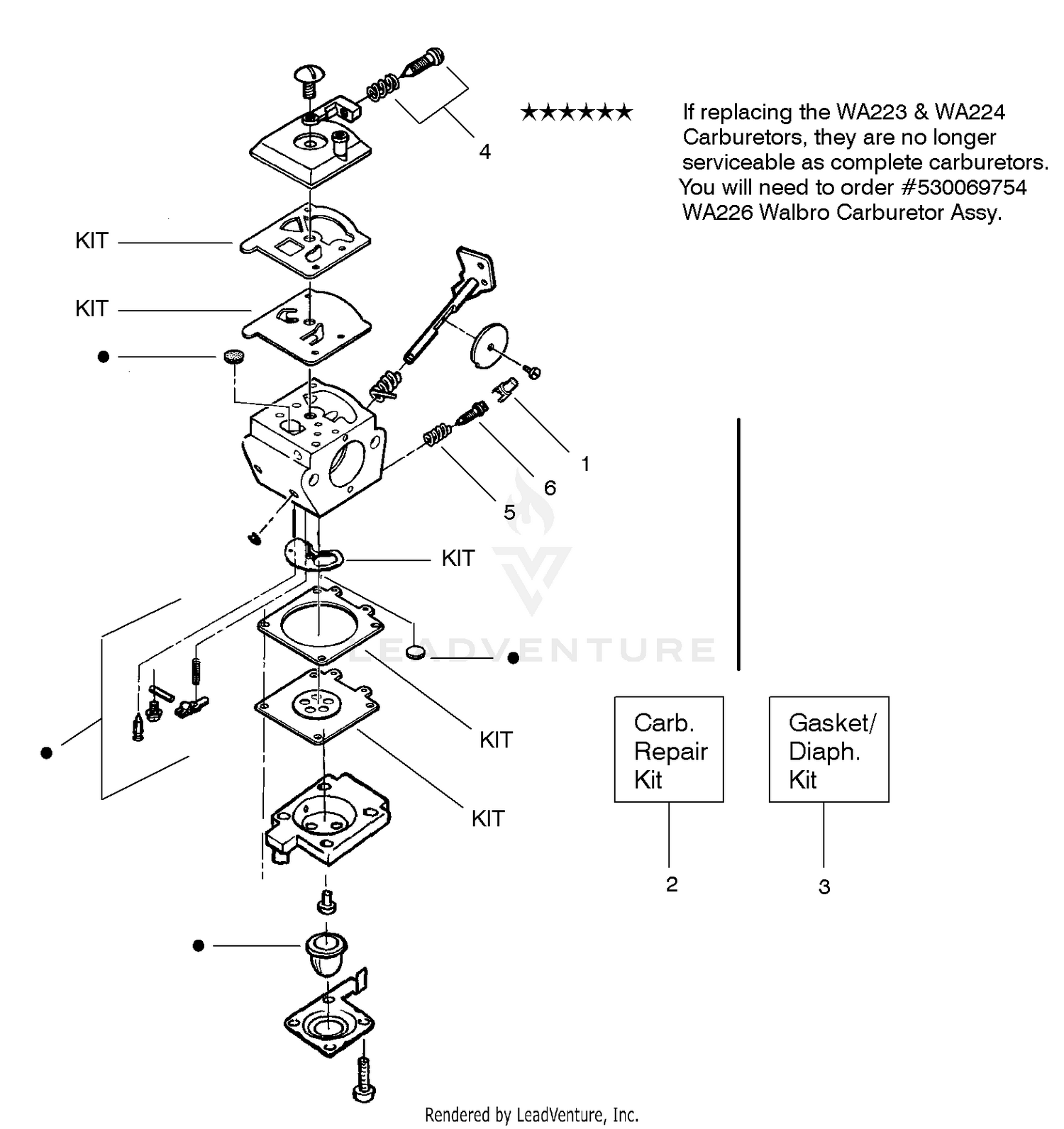

| Ref | Part Number | Description |
|---|
| 0 |
640165 |
CARBURETOR This part replaces 640127. Price: $66.34 |
| 1 |
530038403 |
Limiter Cap Price: $1.99 |
| 1 |
632649 |
SHAFT & LEV Price: $5.90 |
| 1A |
36288 |
BUSHING Price: $1.22 |
| 2 |
632685 |
RET SPRING Price: $1.20 |
| 3 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 4 |
121-4605 |
WASHER-SPRING Price: $3.63 |
| 4 |
530035296 |
Idle Screw & Spring Kit Price: $6.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
121-4606 |
NUT-HEX Price: $0.23 |
| 5 |
530035342 |
Low Speed Spring Price: $2.99 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
530035341 |
Low Speed Needle Price: Call Us |
| 6 |
632517 |
SHUTTER Price: $1.25 |
| 7 |
121-4604 |
SCREW-HH Price: $0.41 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 9 |
121-4608 |
WASHER-SPECIAL Price: $8.01 |
| 10 |
632428 |
SHAFT & LEV Price: $4.84 |
| 11 |
632043 |
SPRING Price: $1.25 |
| 12 |
631184 |
WASHER Price: $1.25 |
| 13 |
121-5862 |
BOLT-SHOULDER Price: $25.27 |
| 13 |
631183 |
WASHER Price: $1.25 |
| 14 |
125-5182 |
GEAR-30T Price: $193.30 |
| 14 |
632429A |
SHUTTER Price: $1.25 |
| 15 |
121-4600 |
NUT-HEX Price: $0.78 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
632527 |
FUEL FITTING Price: $6.03 |
| 17 |
121-2227 |
DRIVE-GROOMER, 45T Price: $278.85 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
106-4237 |
BEARING Price: $11.48 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 20 |
120-9789 |
GASKET-FACE Price: $25.04 |
| 20 |
640018 |
FUEL JET Price: $6.16 |
| 20A |
640053 |
CAP Price: $0.81 |
| 21 |
121-4654 |
SCREW-HHF Price: $0.81 |
| 22 |
120-9797 |
COVER ASM Price: $411.04 |
| 23 |
121-2226 |
GEAR-47T Price: $153.70 |
| 24 |
120-9551 |
SCREW-HWH Price: $0.74 |
| 25 |
120-9786 |
SPRING-EXTENSION Price: $10.39 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 26 |
121-4677 |
SPRING-COMPRESSION Price: $10.38 |
| 27 |
121-4678 |
SPRING-COMPRESSION Price: $8.48 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
121-4686 |
LH SUPPORT PLATE ASM Price: $208.23 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
121-5885 |
PLATE-SUPPORT Price: $82.79 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
3274-65 |
SCREW-HSBH Price: $1.15 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
119-4165 |
SHIM-HEIGHT, ROLLER Price: $4.02 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
3274-54 |
SCREW-HSH Price: $1.41 |
| 33 |
121-2225 |
GEAR-43T Price: $147.11 |
| 36 |
640005 |
NOZZLE Price: $4.95 |
| 37 |
632547 |
O RING Price: $1.49 |
| 40 |
640114 |
NUT Price: $5.16 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
