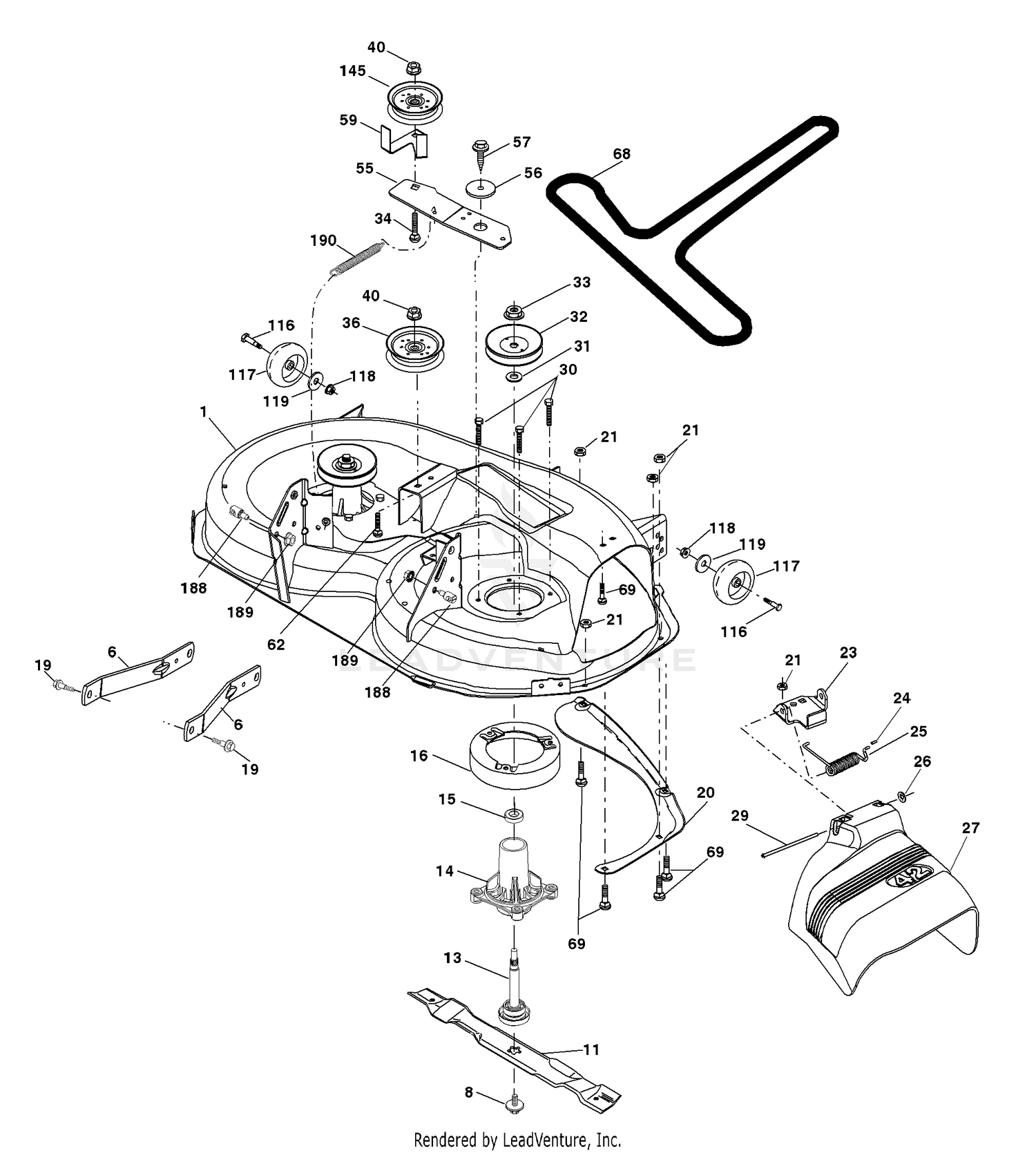

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532402999. Price: $349.99 |
| 1 |
74-8050 |
DISCONTINUED Price: Call Us |
| 2 |
74-7690 |
FILLER CAP Price: $28.46 |
| 3 |
74-7700 |
OIL DIPSTICK Price: $30.40 |
| 4 |
74-7710 |
DISCONTINUED Price: Call Us |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 8 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 11 |
74-7770 |
HOSE-CASE, CRANK Price: $26.81 |
| 12 |
74-7780 |
GASKET Price: $3.22 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 13 |
74-7790 |
DISCONTINUED Price: Call Us |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 14 |
74-7800 |
PIN-SPRING Price: $5.96 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
74-7810 |
GASKET-PLATE Price: $5.88 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 16 |
74-7820 |
PLATE Price: $5.59 |
| 17 |
74-7830 |
SCREW - WASHER HD Price: $1.62 |
| 18 |
74-7840 |
PLUG Price: $2.02 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
74-7850 |
GASKET Price: $5.41 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 20 |
74-7920 |
DISCONTINUED Price: Call Us |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
74-7870 |
OIL PAN GASKET Price: $42.24 |
| 22 |
74-7880 |
GROOVE PIN Price: $1.39 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
74-7890 |
DISCONTINUED X-REF Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
74-7900 |
DISCONTINUED Price: Call Us |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
74-7910 |
SCREW - HEX HD Price: $2.92 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
77-3790 |
DISCONTINUED Price: Call Us |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 27 |
74-7930 |
CAPSCREW-BEARING Price: $9.61 |
| 28 |
74-7940 |
BUSHING-SPRING Price: $2.40 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
74-7950 |
SCREW-PLATE Price: $12.51 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
74-7960 |
STUD-FILTER Price: $11.34 |
| 31 |
108-3837 |
FILTER-OIL This part replaces 74-7970. Price: $9.25 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 32 |
74-7980 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 34 |
74-8000 |
PLUG Price: $3.44 |
| 35 |
74-8010 |
TUBE Price: $30.39 |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 36 |
74-8020 |
MINI BLOCK ASSY Price: $7,465.88 |
| 37 |
74-8030 |
PIN-SPRING Price: $7.00 |
| 38 |
74-8040 |
PLUG Price: $3.67 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 68 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 190 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 196 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
