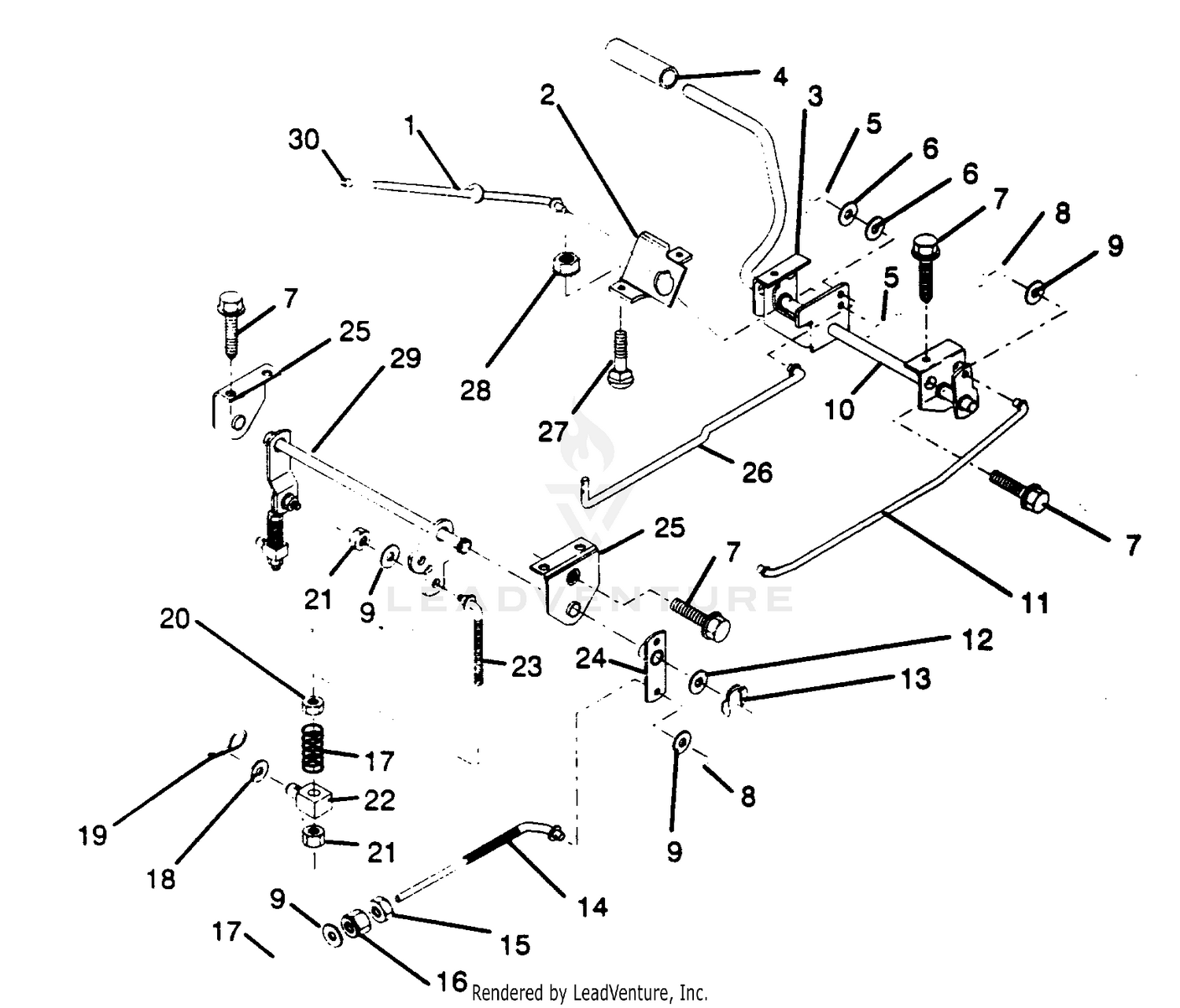

| Ref | Part Number | Description |
|---|
| 1 |
52-9260 |
SCREW-SET Price: $8.09 |
| 1 |
532123436 |
Rod, Parking Brake Price: $4.99 |
| 2 |
532123437 |
Bracket, Parking Brake Price: $4.46 |
| 3 |
52-9230 |
RING-RETAINING Price: $26.68 |
| 3 |
532122504 |
Bracket, L.H. Clutch Pedal Price: $3.08 |
| 4 |
52-9240 |
BUSHING Price: $65.67 |
| 4 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 5 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 6 |
819131016 |
Washer, 13/32 x 5/8 x 16 Ga. Price: $3.99 |
| 7 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 8 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 9 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 10 |
532139933 |
Assembly, Clutch/Brake Pedal This part replaces 532124145. Price: $21.38 |
| 11 |
532123543 |
Rod, Front Brake Price: $8.38 |
| 11 |
59-6820 |
CENTERING SPRING KIT Price: $50.64 |
| 12 |
819251816 |
Washer 25/32 x 1-1/8 x 16 Ga. Price: $3.99 |
| 13 |
812000034 |
Ring, Clip Price: $2.99 |
| 14 |
532131461 |
CLUTCH KIT This part replaces 532126759. Price: $13.99 |
| 15 |
52-9320 |
DRIVE Price: $141.01 |
| 15 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 16 |
76-6300 |
GEROTOR ASM Price: $478.69 |
| 16 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 17 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 17 |
76-6320 |
SPACER Price: $9.40 |
| 18 |
819132012 |
Washer 13/32 x 1 1/4 x 12 Ga. Price: $2.99 |
| 19 |
532004921 |
Spring, Retainer Price: $3.99 |
| 20 |
59-6830 |
CENTERING PIN KIT Price: $3.98 |
| 20 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 21 |
52-9290 |
RETAINER-CHECKBALL Price: $15.41 |
| 21 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 22 |
52-9280 |
CHECKBALL Price: $7.01 |
| 22 |
532132793 |
LIFT TRUNION This part replaces 532106204. Price: $4.99 |
| 23 |
532123672 |
Link, Threaded Price: $5.72 |
| 24 |
52-9270 |
SEAT-CHECKBALL Price: $35.12 |
| 24 |
532123641 |
Assembly, Brake Pivot Arm Price: $12.18 |
| 25 |
532121978 |
Bracket, Lift Shaft Price: $2.38 |
| 26 |
52-9250 |
BEARING KIT Price: $65.87 |
| 26 |
532123394 |
Rod, Clutch Price: $7.99 |
| 27 |
872110506 |
Bolt, Carriage 5/16-18 UNC x 3/4 Price: $3.99 |
| 27 |
92-9749 |
SEAL KIT Price: $46.95 |
| 28 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 28 |
92-9745 |
END CAP KIT Price: $210.96 |
| 29 |
532123547 |
Assembly, Rear Mower Lift Price: $31.23 |
