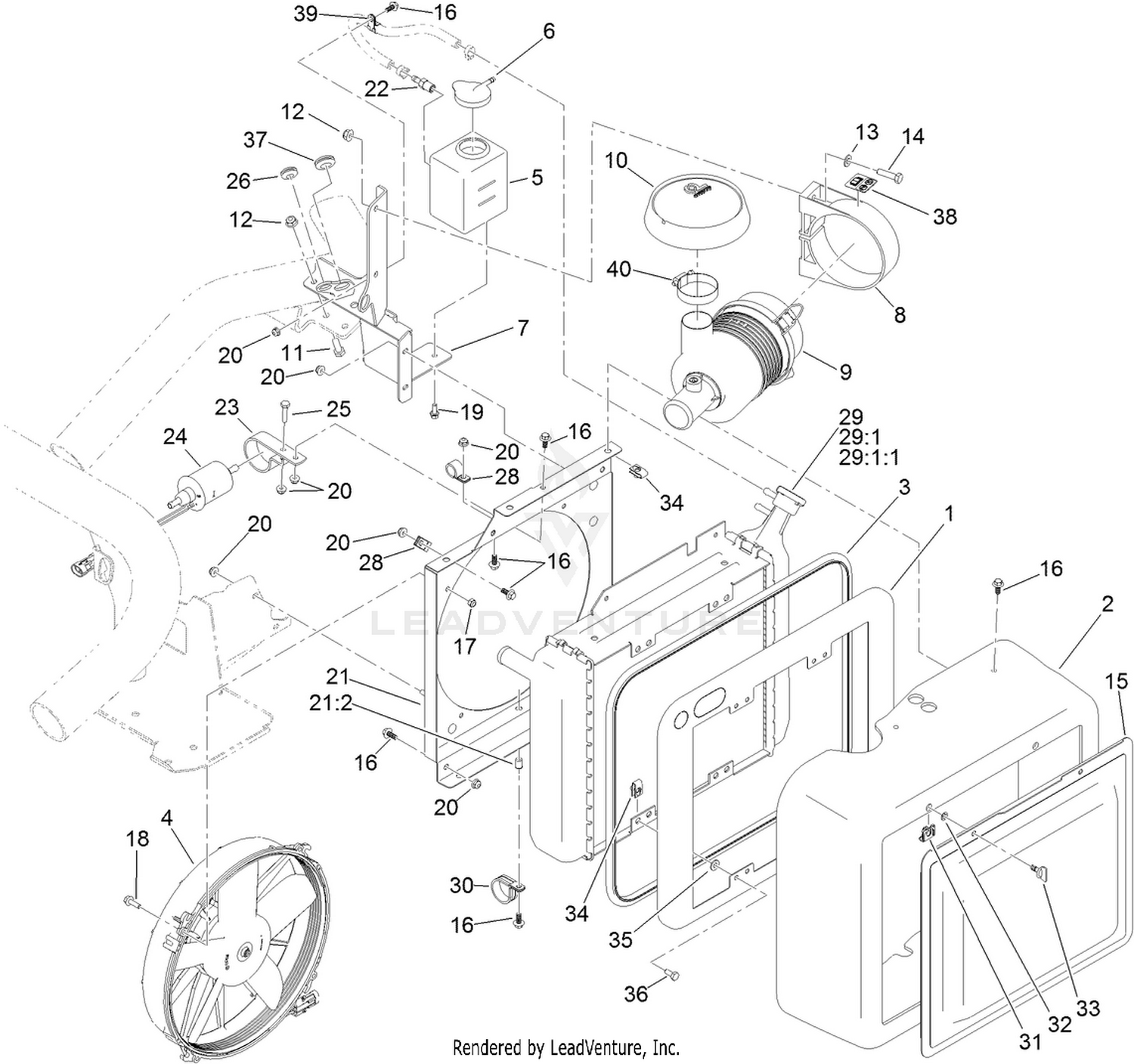

| Ref | Part Number | Description |
|---|
| 1 |
117-9307-03 |
PANEL-SEAL, RADIATOR Price: $90.45 |
| 2 |
117-9296 |
SHROUD-RADIATOR Price: $153.71 |
| 3 |
117-9308 |
TRIM-SEAL Price: $49.19 |
| 4 |
115-5765 |
FAN Price: $436.62 |
| 5 |
120-5260 |
TANK-OVERFLOW Price: $89.55 |
| 6 |
1-643164 |
CAP-TANK, OVERFLOW Price: $12.97 |
| 7 |
131-2099-03 |
BRACKET Price: $92.44 |
| 8 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 9 |
95-5805 |
AIR CLEANER ASM Price: $140.44 |
| 10 |
136-7859 |
RAIN CAP KIT This part replaces 120-4848. Price: $23.88 |
| 11 |
322-4 |
SCREW-HH Price: $0.35 |
| 12 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
322-6 |
SCREW-HH Price: $0.45 |
| 15 |
117-9311-03 |
SCREEN Price: $237.25 |
| 16 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 17 |
110-8451 |
NUT-HEX, NI Price: Call Us |
| 18 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 19 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 20 |
104-7201 |
NUT-HF Price: $0.69 |
| 21 |
119-9038 |
SHROUD ASM Price: $159.66 |
| 22 |
353-783 |
FITTING-STR Price: $29.05 |
| 23 |
110-8817 |
BRACKET-PUMP, FUEL Price: $21.97 |
| 24 |
144-4020 |
KIT-FUEL PUMP, SERVICE This part replaces 110-8806. Price: $192.50 |
| 25 |
321-7 |
SCREW-HH Price: $4.19 |
| 26 |
1-633630 |
GROMMET Price: $5.29 |
| 28 |
2412-87 |
CLAMP-CABLE Price: $2.89 |
| 29 |
117-9860 |
RADIATOR Price: $1,089.34 |
| 30 |
119-9037 |
CLAMP-R Price: $4.89 |
| 31 |
119-1730 |
RECEPTACLE-CLIP, MINI Price: $2.10 |
| 32 |
119-1729 |
RETAINER-STUD Price: $0.75 |
| 33 |
120-1957 |
STUD-RAPIER Price: $6.11 |
| 34 |
107069 |
CLIP Price: $1.79 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
321-3 |
SCREW-HH Price: $0.28 |
| 37 |
237-124 |
GROMMET Price: $2.30 |
| 38 |
115-8155 |
DECAL-WARNING Price: $5.90 |
| 39 |
2412-134 |
CLAMP-R Price: $5.79 |
