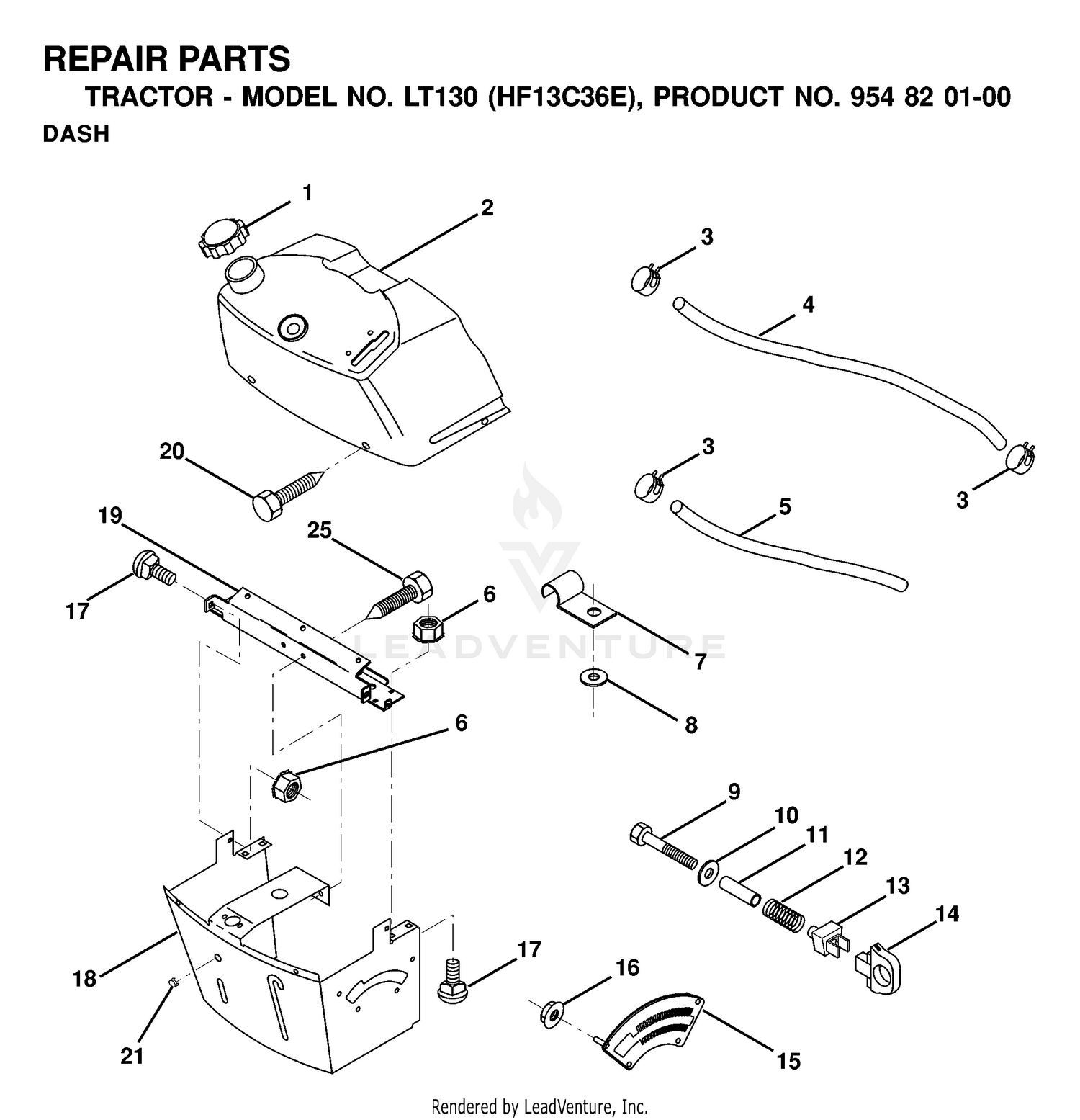

| Ref | Part Number | Description |
|---|
| 1 |
120-0773 |
BOLT-HEX Price: $3.15 |
| 1 |
532142187 |
CAP.FUEL.GREY Price: $9.99 |
| 2 |
144-6249 |
COVER-PUMP, S/S This part replaces 133-2824. Price: $469.69 |
| 2 |
532138395 |
TANK ASM DASH LR Price: $56.99 |
| 3 |
120-0777 |
BOLT-HEX Price: $8.62 |
| 3 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 4 |
120-0778 |
DISC-DIAPHRAGM Price: $54.29 |
| 4 |
532000295 |
FUEL LINE This part replaces 532008544. Price: $5.74 |
| 5 |
120-0779 |
DIAPHRAGM Price: $90.88 |
| 5 |
532008548 |
FUEL LINE T Price: $6.99 |
| 6 |
120-0780 |
DISC-BACKING, DIAPHRAGM Price: $8.46 |
| 6 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 7 |
120-0781 |
ROD-CONNECTING Price: $184.02 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 8 |
99-0861 |
VALVE-PUMP Price: $65.70 |
| 9 |
100-6651 |
O-RING Price: $8.81 |
| 9 |
874760432 |
BOLT.HEX.FINISHED.1/4-20 This part replaces 874760428. Price: $7.99 |
| 10 |
133-2821 |
HOUSING-PUMP, MAIN Price: $2,168.51 |
| 10 |
596135301 |
Washers This part replaces 819091413. Price: $2.99 |
| 11 |
120-0783 |
SEAL-OIL Price: $8.75 |
| 11 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 12 |
120-0786 |
SEAL Price: $2.66 |
| 12 |
532003720 |
SPRING.COMPRESSION Price: $4.99 |
| 13 |
120-0785 |
PLUG Price: $12.21 |
| 13 |
532126450 |
KNOB HGT RETAINER Price: $3.99 |
| 14 |
133-2877 |
TUBE-BANJO, LONG Price: $92.00 |
| 14 |
532126115 |
KNOB Price: $3.99 |
| 15 |
133-2878 |
NUT Price: $1.42 |
| 15 |
532122023 |
ADJUSTER QUAD Price: $9.99 |
| 16 |
133-2880 |
CAP-GREASE NIPPLE, YELLOW Price: $3.54 |
| 16 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 17 |
133-2879 |
NIPPLE-GREASE Price: $9.83 |
| 17 |
872110404 |
BOLT Price: $7.99 |
| 18 |
136-2252 |
BOLT-HEX Price: $3.87 |
| 18 |
532130745 |
SUPT ASSY DASH Price: $23.04 |
| 19 |
133-2875 |
PLATE-NIPPLE, GREASE Price: $17.57 |
| 19 |
532134744 |
CROSS BRACE Price: $9.17 |
| 20 |
133-2876 |
TUBE-BANJO, SHORT Price: $72.04 |
| 20 |
817060408 |
SCREW Price: $4.99 |
| 21 |
120-0774 |
BOLT-HEX Price: $3.07 |
| 21 |
532134014 |
PLUG DOME Price: $2.99 |
| 22 |
120-0787 |
FOOT-PUMP Price: $157.76 |
| 23 |
133-2830 |
BOLT-BANJO Price: $30.85 |
| 24 |
136-2251 |
GASKET Price: $1.79 |
| 25 |
120-0788 |
BEARING-BALL Price: $149.10 |
| 26 |
133-2820 |
SPACER-METAL Price: $95.32 |
| 27 |
120-0791 |
BEARING-BALL Price: $180.61 |
| 28 |
133-2827 |
DISTANCE RING Price: $53.64 |
| 29 |
133-2825 |
SHAFT-CRANK Price: $758.87 |
| 30 |
120-0794 |
BOLT-HEX Price: $1.36 |
| 31 |
120-0784 |
BOLT-HEX Price: $0.68 |
| 32 |
133-2822 |
HOUSING-PUMP, FRONT Price: $1,193.86 |
| 33 |
120-0796 |
PUMP KIT This part replaces 133-2885. Price: $856.47 |
| 34 |
145-3399 |
PUMP HEAD KIT This part replaces 133-2898. Price: $2,650.77 |
