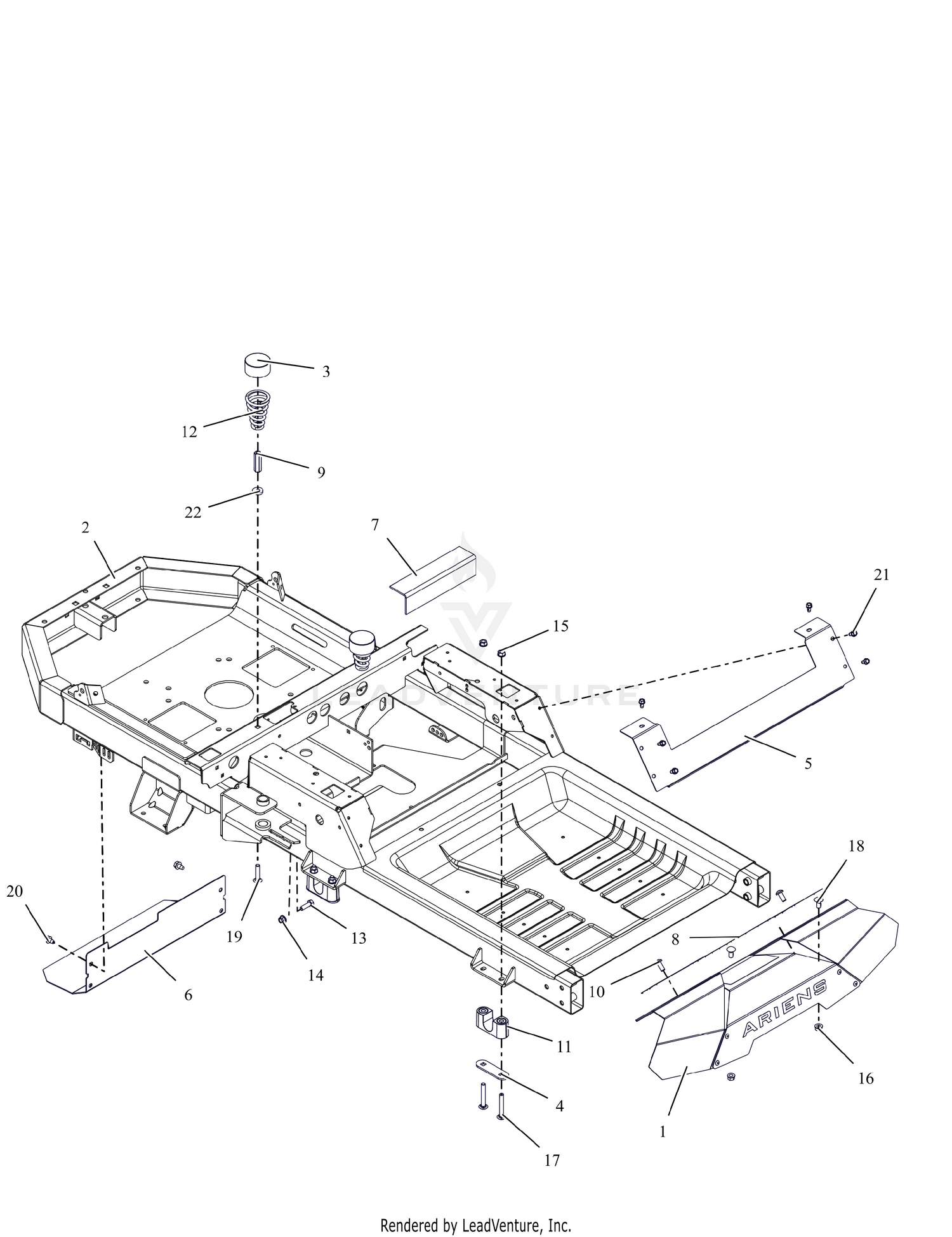

| Ref | Part Number | Description |
|---|
| 1 |
51531300 |
KIT, IKON FOOT REST W/DECAL Price: $77.95 |
| 2 |
51535000 |
WLDMT, FRAME IKON XD/ZTX & XL (ORANGE) Price: $785.45 |
| 3 |
00337700 |
HUB CAP Price: $2.45 |
| 4 |
04766551 |
PLATE, BEARING SUPPORT Price: $7.45 |
| 5 |
04772359 |
PLATE, SEAT KICK Price: $30.95 |
| 6 |
04807951 |
HEAT, SHIELD Price: $27.45 |
| 7 |
04864600 |
PAD, RUBBER-TANK Price: $5.45 |
| 8 |
05112300 |
GRIP TAPE, FOOT PLATE Price: $15.45 |
| 9 |
06500927 |
NUT, COUPLING .31-18X1.75 ZCC Price: $3.95 |
| 10 |
07400134 |
SCR-RDHDSKTAP .31-18X.75 ZCC Price: $2.45 |
| 11 |
07500327 |
BSHG, DECK LIFT PIVOT Price: $11.45 |
| 12 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 13 |
05901701 |
BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 14 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 15 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 16 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 17 |
06200311 |
BLT, RHSSN.31-18X2.25 G5 ZCC Price: $3.95 |
| 18 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC Price: $2.45 |
| 19 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
| 20 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC Price: $1.45 |
| 21 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
