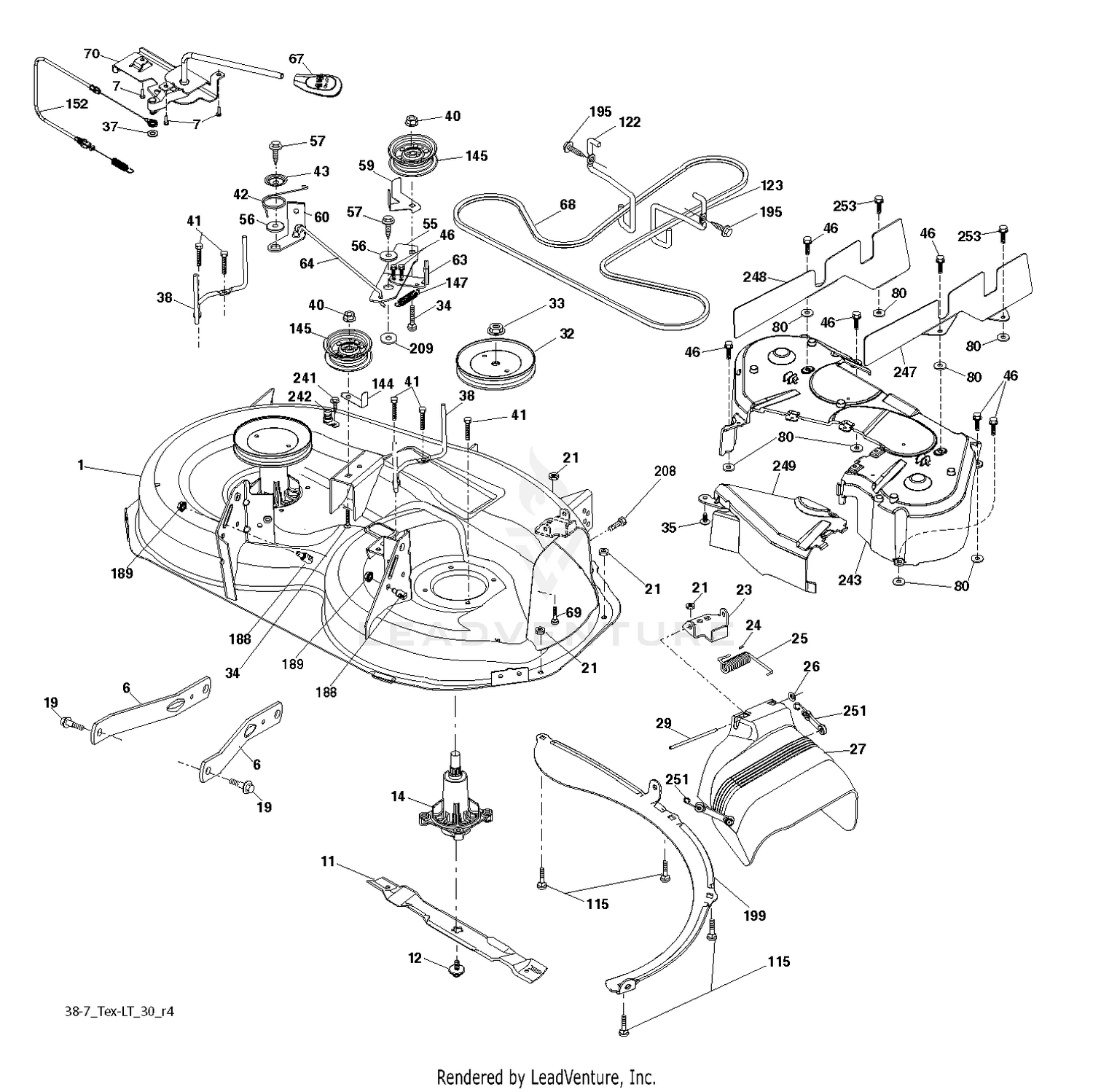

| Ref | Part Number | Description |
|---|
| 1 |
583498001 |
DECK SVCX1.38"194251X418 KIT This part replaces 587771802. Price: $249.99 |
| 1 |
94-3123 |
CAPSCREW Price: $0.96 |
| 2 |
94-3117 |
DISCONTINUED Price: Call Us |
| 3 |
94-3116 |
DISCONTINUED Price: Call Us |
| 4 |
74-7600 |
PLUG (BALL) Price: $6.93 |
| 5 |
94-3113 |
DISCONTINUED Price: Call Us |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
76-5130 |
STUD Price: $2.11 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 7 |
74-8900 |
WASHER-FLAT Price: $2.29 |
| 8 |
94-3115 |
NUT Price: $1.30 |
| 9 |
74-6570 |
CUP-VALVE SPRING, LOWER Price: $3.36 |
| 10 |
74-6560 |
SPRING-VALVE Price: $14.26 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK This part replaces 581116301. Price: $14.99 |
| 11 |
74-6550 |
CUP Price: $4.84 |
| 12 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 12 |
74-7240 |
COLLAR-SPLIT Price: $5.39 |
| 13 |
74-6580 |
INSERT-VALVE (1.65MM) Price: $44.94 |
| 13 |
74-6720 |
INSERT-VALVE (2.400MM) Price: $9.73 |
| 13 |
74-6980 |
INSERT-VALVE (3.050MM) Price: $9.31 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL Price: $49.99 |
| 14 |
74-6540 |
TAPPET-VALVE Price: $41.87 |
| 15 |
74-7570 |
LIFTING HOOK This part replaces 94-3135. Price: $9.76 |
| 16 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 17 |
74-8130 |
SCREW - HEX HD This part replaces 76-5440. Price: $1.73 |
| 18 |
74-7630 |
GASKET-COVER, VALVE Price: $30.06 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 19 |
74-7640 |
COVER-VALVE Price: $171.54 |
| 20 |
74-7650 |
WASHER-FLAT Price: $1.03 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
94-3125 |
DISCONTINUED Price: Call Us |
| 22 |
94-3124 |
SCREW-HH Price: $1.30 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 23 |
94-3136 |
BRACKET-LIFTING Price: $37.89 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 24 |
94-3138 |
SCREW-HH Price: $2.80 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
98-3840 |
BRACKET This part replaces 94-3137. Price: $9.35 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
94-3139 |
SCREW Price: $14.51 |
| 27 |
597316601 |
Shields This part replaces 532401618. Price: $44.99 |
| 27 |
94-3174 |
WASHER-REPAIR Price: $10.07 |
| 28 |
74-7270 |
WASHER-FLAT Price: $3.60 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
74-7260 |
BOLT-HEAD Price: $17.07 |
| 30 |
94-3197 |
O-RING Price: $2.63 |
| 31 |
94-3196 |
DISCONTINUED Price: Call Us |
| 32 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 32 |
94-3118 |
DISCONTINUED Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
74-7840 |
PLUG Price: $2.02 |
| 34 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 35 |
94-3198 |
SCREW-HHF Price: $2.62 |
| 36 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
94-3200 |
DISCONTINUED Price: Call Us |
| 38 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 39 |
94-3199 |
PIPE-BY PASS Price: $195.25 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 40 |
98-9971 |
HOSE - BY PASS Price: $76.81 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 41 |
74-7400 |
TUBE Price: $46.54 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 42 |
74-7840 |
PLUG Price: $2.02 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 43 |
94-3122 |
GASKET Price: $5.17 |
| 44 |
94-3121 |
PLUG Price: $12.11 |
| 45 |
74-7420 |
BALL Price: $1.11 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 46 |
74-7430 |
CHAMBER-TURBULENCE Price: $119.14 |
| 47 |
92-7792 |
GUIDE-VALVE (14.29 MM) Price: $25.96 |
| 48 |
74-7450 |
DISCONTINUED Price: Call Us |
| 49 |
74-7480 |
VALVE-INTAKE Price: $55.79 |
| 50 |
92-7794 |
VALVE-EXHAUST Price: $72.59 |
| 51 |
92-7795 |
SEAT-VALVE Price: $56.11 |
| 52 |
92-7791 |
VALVE-SEAL, STEM Price: $9.11 |
| 53 |
94-8132 |
GASKET-HEAD, 1.48 Price: $239.46 |
| 54 |
94-3120 |
BRACKET Price: $216.10 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $14.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
532408381 |
V-BELT Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $29.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 208 |
17670608 |
Price: Call Us |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 243 |
583298801 |
COVER.DECK.38"FRENCH.TEX This part replaces 532406510. Price: $44.99 |
| 247 |
583457301 |
SHIELD.DECK.RH.38"TEX.FREN.010 This part replaces 532430258. Price: $22.99 |
| 248 |
589009502 |
GUARD.DECK.38IN.LH.X431 This part replaces 532430259. Price: $11.99 |
| 249 |
583298901 |
COVER.CABLE.CLUTCH.38/42"TEX This part replaces 532406514. Price: $17.99 |
| 251 |
583508201 |
KIT.STRAP.BUNGEE.DEFLECTOR.SVC This part replaces 532436087. Price: $7.99 |
| 253 |
583441001 |
TULFLOK.RIVET This part replaces 532427350. Price: $2.99 |
