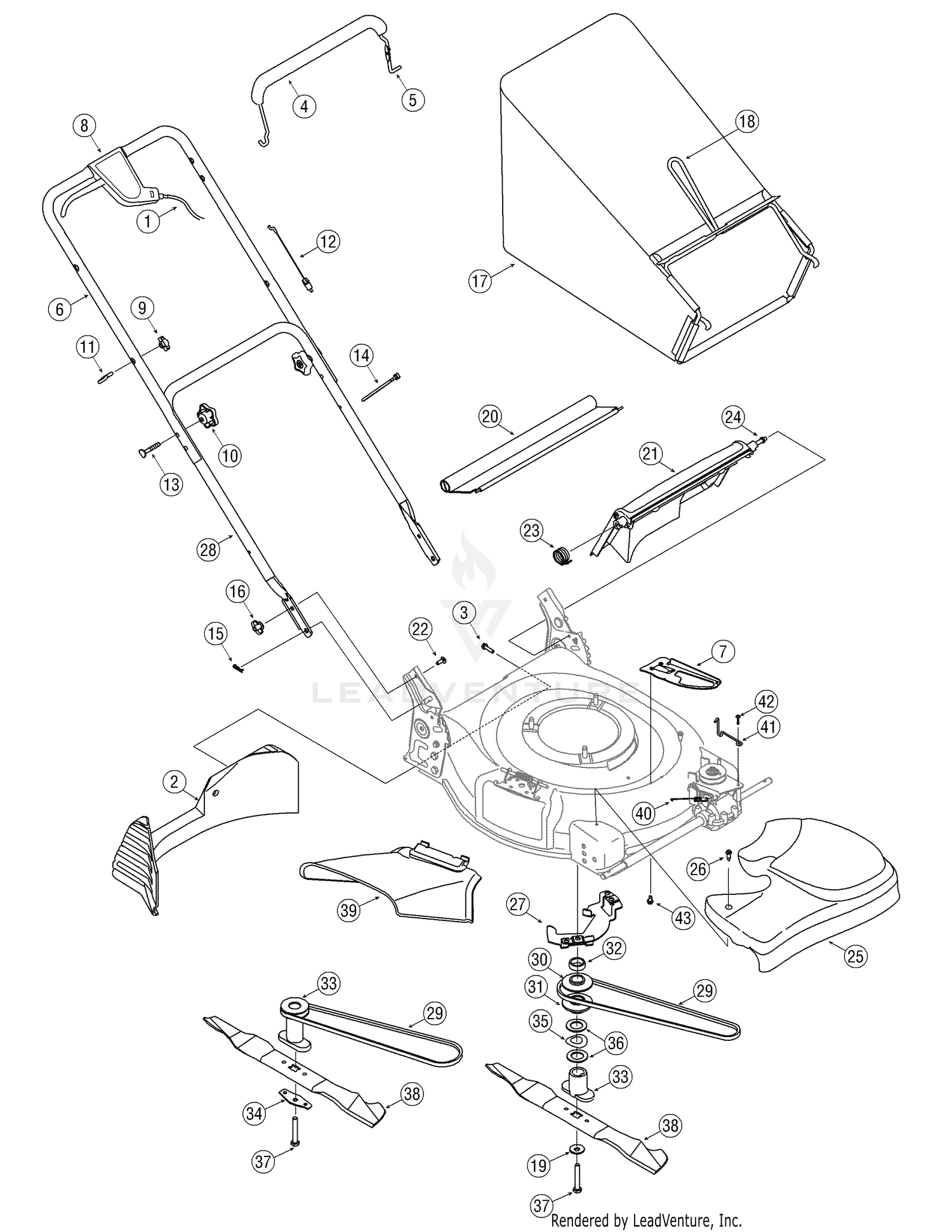

| Ref | Part Number | Description |
|---|
| 1 |
946-04206A |
Variable Speed Cable This part replaces 746-04206A. Price: $23.80 |
| 2 |
731-04150C |
REAR BAFFLE 21" Not Available Price: |
| 3 |
710-1241 |
Screw 1/4-15 x 1.000 Price: $5.77 |
| 5 |
747-1161A |
Blade Control Price: $10.27 |
| 6 |
749-04206 |
UPPER HANDLE Not Available Price: |
| 7 |
787-01258A |
CABLE BRACKET Not Available Price: |
| 8 |
753-06060A |
KIT This part replaces 753-05096A. Price: $23.77 |
| 9 |
720-0279 |
Handle Knob Price: $3.93 |
| 10 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 11 |
710-1205 |
Eye Bolt Price: $3.53 |
| 12 |
946-0957 |
Control Cable This part replaces 746-0957. Price: $16.30 |
| 12 |
946-1113A |
Control Cable (brake) This part replaces 746-1113. Price: $18.03 |
| 12 |
946-1130 |
Control Cable 40" This part replaces 746-1130. Price: $16.01 |
| 12 |
946-1132 |
Control Cable - 40.75" This part replaces 746-1132. Price: $20.71 |
| 13 |
710-1174 |
Carriage Bolt 5/16-18 x 2.0 Price: $6.28 |
| 15 |
714-0104 |
Cotter Pin Price: $3.90 |
| 16 |
712-0397A |
WING NUT This part replaces 712-0397. Price: $3.71 |
| 17 |
964-04007A |
Grass Bag This part replaces 664-04011. Price: $114.46 |
| 18 |
747-04080A |
Grass Bag Frame This part replaces 747-04080. Price: $52.39 |
| 20 |
731-05642A |
Trailshield This part replaces 731-05642. Price: $25.03 |
| 21 |
753-06366 |
SERVICE REPLACEMENT KITLAC Not Available This part replaces 731-04134A. Price: |
| 22 |
710-0703 |
Carriage Bolt 1/4-20 Price: $3.66 |
| 23 |
732-04090A |
Torsion Spring - RH Price: $6.66 |
| 24 |
747-04588 |
Pivot Rod Price: $15.36 |
| 25 |
931-05020A |
Transmission Cover (Black) This part replaces 731-05020A. Price: $61.79 |
| 26 |
710-1650 |
Shoulder Screw # 12 -24 Price: $4.22 |
| 27 |
787-01265A-0637 |
BELT KEEPER BRACKET Not Available This part replaces 787-01265A. Price: |
| 28 |
749-0928A-0637 |
Lower Handle This part replaces 749-0928A. Price: $29.67 |
| 29 |
954-04082A |
Drive Belt This part replaces 754-04082A. Price: $23.93 |
| 37 |
710-1257 |
Hex Screw 3/8-24 x 2.50 Price: $7.02 |
| 38 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 39 |
731-04177 |
Side Discharge Chute Price: $16.88 |
| 40 |
732-04317 |
EXTENSION SPRING Not Available Price: |
| 41 |
732-04294 |
Belt Keeper Wire Not Available Price: |
| 42 |
710-04329 |
Torx Screw Price: $4.13 |
