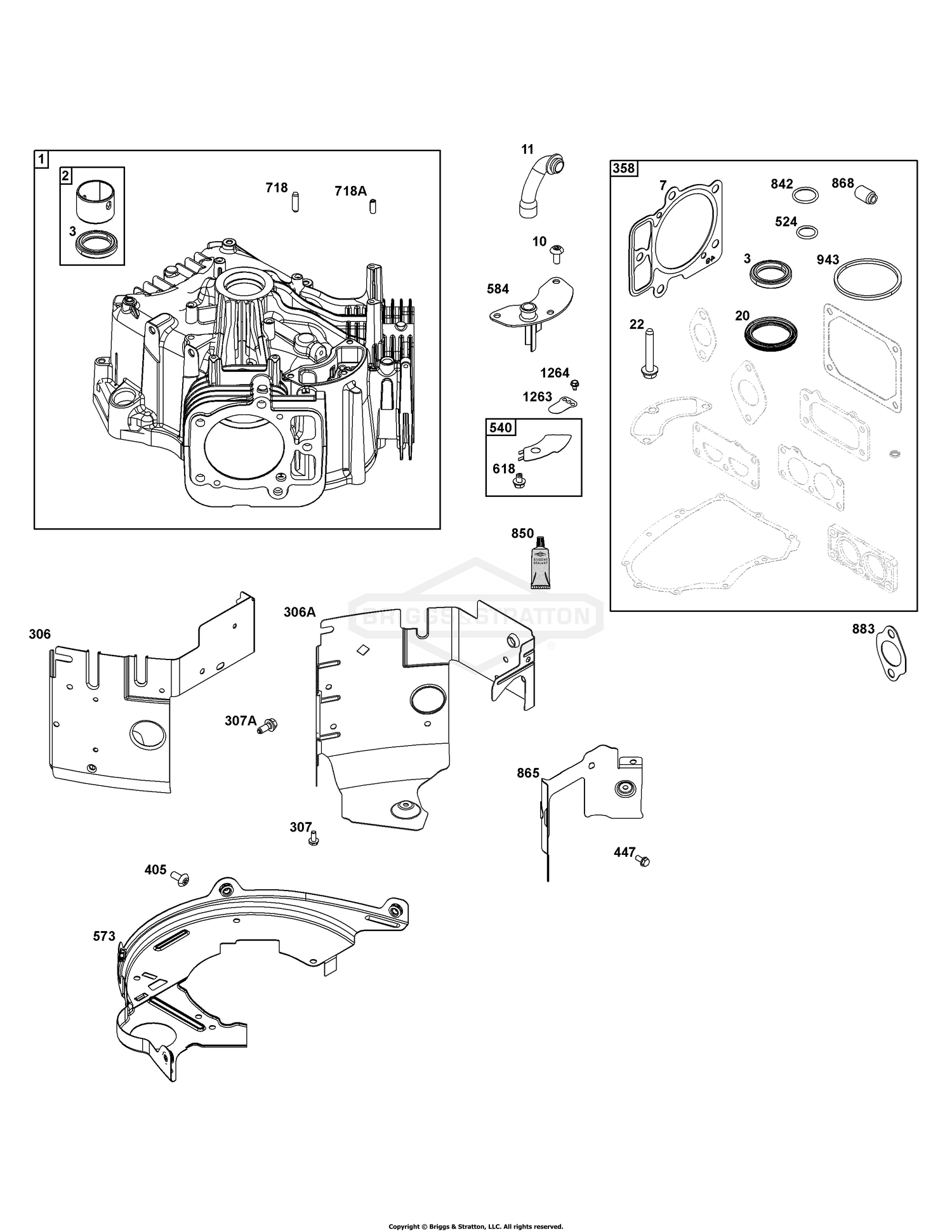

Cylinder Group
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 84003813 | CYLINDER ASSEMBLY Price: $472.99 |
| 11 | 594163 | TUBE, Breather Price: $6.75 |
| 306 | 84004553 | SHIELD, Cylinder Price: $32.44 |
| 306A | 84004554 | SHIELD, Cylinder Price: $29.49 |
| 540 | 594325 | PLATE, Baffle Price: $6.23 |
| 573 | 594902 | PLATE, Back Price: $52.81 |
| 584 | 594164 | COVER, Breather Passage Price: $8.23 |
| 718 | 690959 | PIN, Locating Price: $5.75 |
| 718A | 594988 | PIN, Locating Price: $6.00 |
| 865 | 84004495 | COVER, Air Guide Price: $33.54 |
| 1263 | 594166 | REED, Breather Price: $8.34 |
