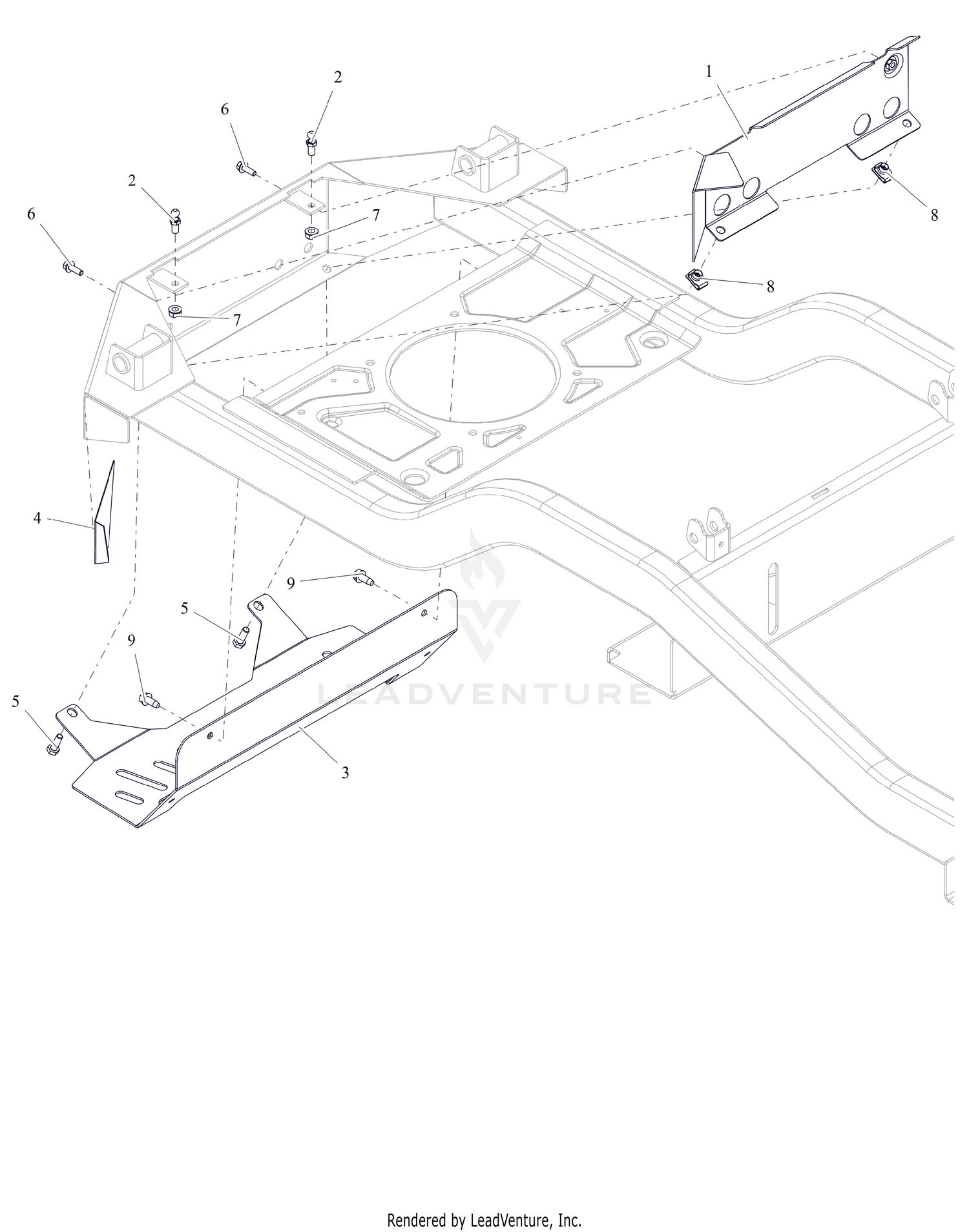

Heat Shield
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 05116751 | WMT, HEAT BAFFLE Price: $28.95 |
| 2 | 03652200 | STUD- BALL Price: $3.45 |
| 3 | 05082851 | SHIELD, HEAT (HD) Price: $40.95 |
| 4 | 05116800 | TAPE, HEAT DEFLECTOR Price: $15.45 |
| 5 | 05901701 | BLT,HEX .31-18X1.00 G5 ZCC Price: $1.45 |
| 6 | 05901731 | BLT,HEX-FLG .25-20X.75 G5 BFP Price: $1.45 |
| 7 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 8 | 07000829 | NUT-CLIP RETAINER 5/16-18X.56 Price: $2.45 |
