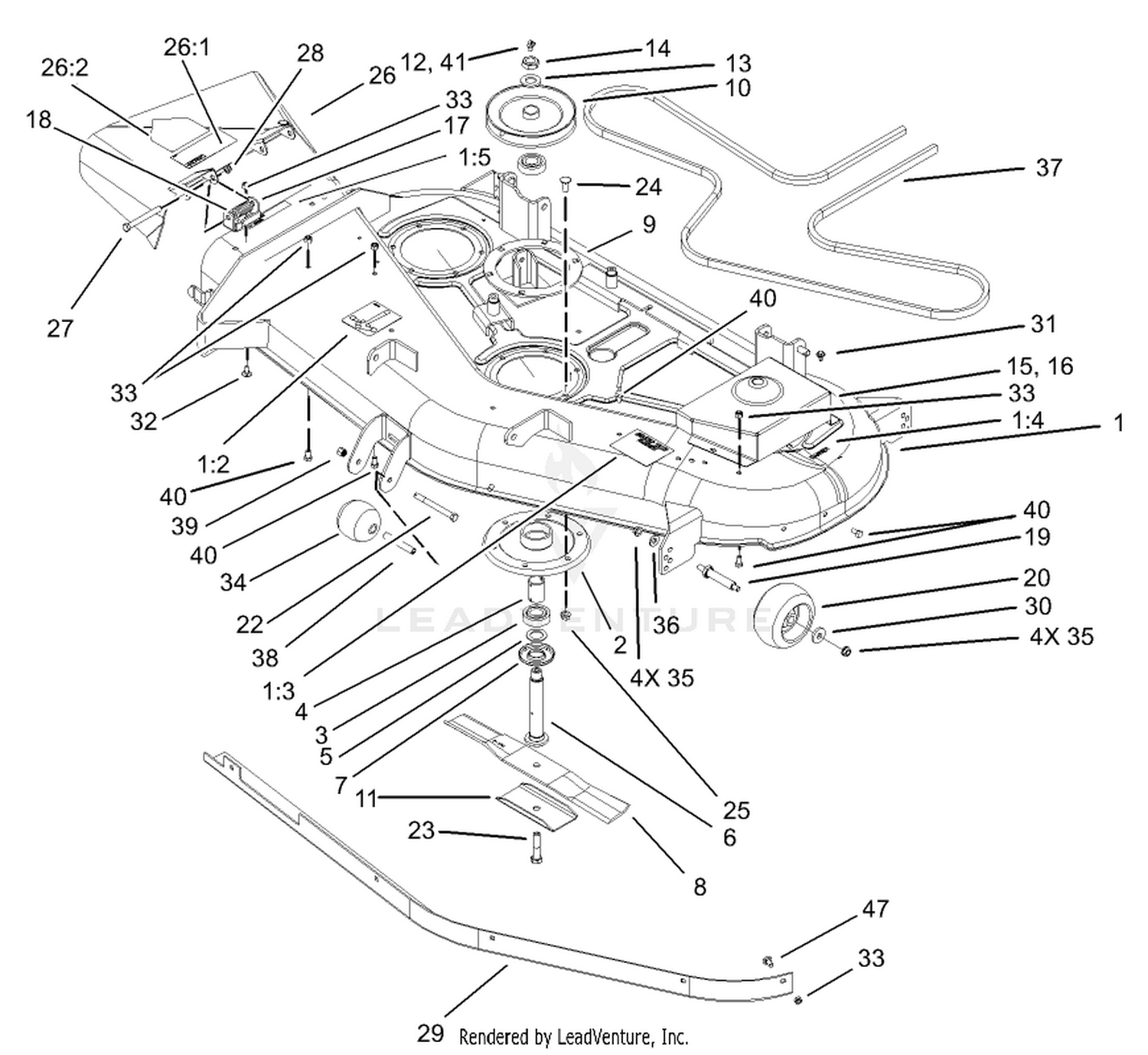

| Ref | Part Number | Description |
|---|
| 2 |
79-2480 |
HOUSING-SPINDLE *B This part replaces 79-2480-03. Price: $129.27 |
| 3 |
113514 |
BEARING-BALL Price: $18.99 |
| 4 |
79-1890 |
SPACER-BEARING Price: $20.33 |
| 5 |
120860 |
WASHER-WHEEL Price: $4.08 |
| 6 |
79-1910 |
SHAFT-SPINDLE Price: $214.87 |
| 7 |
79-1920 |
SHIELD-BEARING Price: $7.71 |
| 8 |
27-0990-03 |
BLADE-18 INCH Price: $18.94 |
| 9 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680-01. Price: $70.99 |
| 10 |
100-7320 |
PULLEY/HUB ASM Price: $120.39 |
| 11 |
92-9820 |
STIFFENER-BLADE Price: $52.99 |
| 12 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 14 |
3220-7 |
NUT-JAM Price: $4.09 |
| 15 |
104-3685-01 |
DISCONTINUED Price: Call Us |
| 16 |
104-3684-01 |
COVER-BELT, RH Price: $77.37 |
| 17 |
29-5590-03 |
BRACKET-PIVOT Price: $23.25 |
| 18 |
40-6230 |
SPRING Price: $37.99 |
| 19 |
126-2928 |
KIT, ANTI-SCALP ROLLER AXLE This part replaces 99-2842. Price: $18.59 |
| 20 |
1-603299 |
ROLLER-SCALP, ANTI This part replaces 68-2730. Price: $21.99 |
| 22 |
323-16 |
SCREW-HH Price: $2.89 |
| 23 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 24 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 26 |
94-1580 |
DISCONTINUED Price: Call Us |
| 27 |
3211-15 |
SCREW-HH Price: $7.99 |
| 28 |
3296-5 |
NUT-HEX Price: $3.09 |
| 29 |
67-2150-03 |
BAFFLE This part replaces 67-2150-01. Price: $356.99 |
| 30 |
1-373034 |
WASHER Price: $3.19 |
| 31 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 32 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 34 |
29-4820 |
ROLLER Price: $14.88 |
| 35 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 36 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 37 |
99-3904 |
BELT-DECK Price: $111.62 |
| 38 |
94-2500 |
TUBE-SPACER, WHEEL Price: $3.39 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
322-2 |
SCREW-HH Price: $0.69 |
| 41 |
302-33 |
FITTING-GREASE Price: $2.31 |
