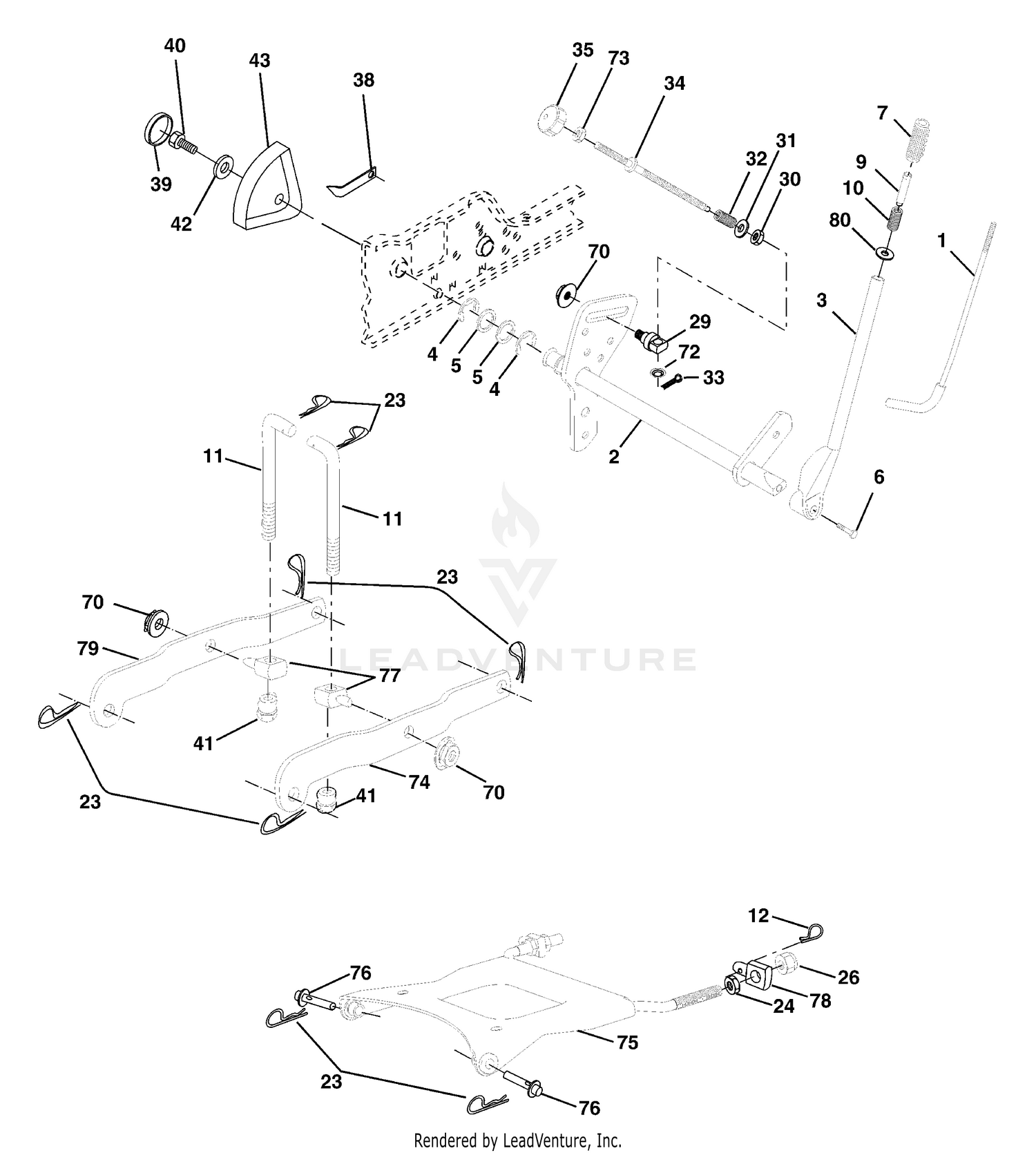

| Ref | Part Number | Description |
|---|
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 1 |
94-3004 |
SHAFT-DRIVE, SPLINED Price: $564.48 |
| 2 |
532180045 |
SHAFT ASM., LIFT VGT Price: $59.99 |
| 2 |
94-3005 |
BACKPLATE ASM Price: $1,185.62 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 3 |
94-3006 |
HOUSING ASM Price: $973.57 |
| 4 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 5 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. Price: $6.99 |
| 6 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/2 Price: $2.99 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 7 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 8 |
60-6240 |
WASHER This part replaces 94-3007. Price: $15.20 |
| 9 |
105-3331 |
SEAL-SHAFT This part replaces 94-3008. Price: $35.63 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 10 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 11 |
532181576 |
LIFT LINK This part replaces 532175375. Price: $9.99 |
| 11 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 12 |
76-6980 |
O-RING Price: $11.28 |
| 13 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 14 |
76-6960 |
BEARING-THRUST Price: $23.23 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 74 |
532175802 |
ARM SUSP REAR RH Price: $84.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 77 |
532176205 |
TRUNNION Price: $6.99 |
| 78 |
532175689 |
TRUNNION Price: $3.99 |
| 79 |
532175378 |
ARM SUSP. REAR LH Price: $44.99 |
