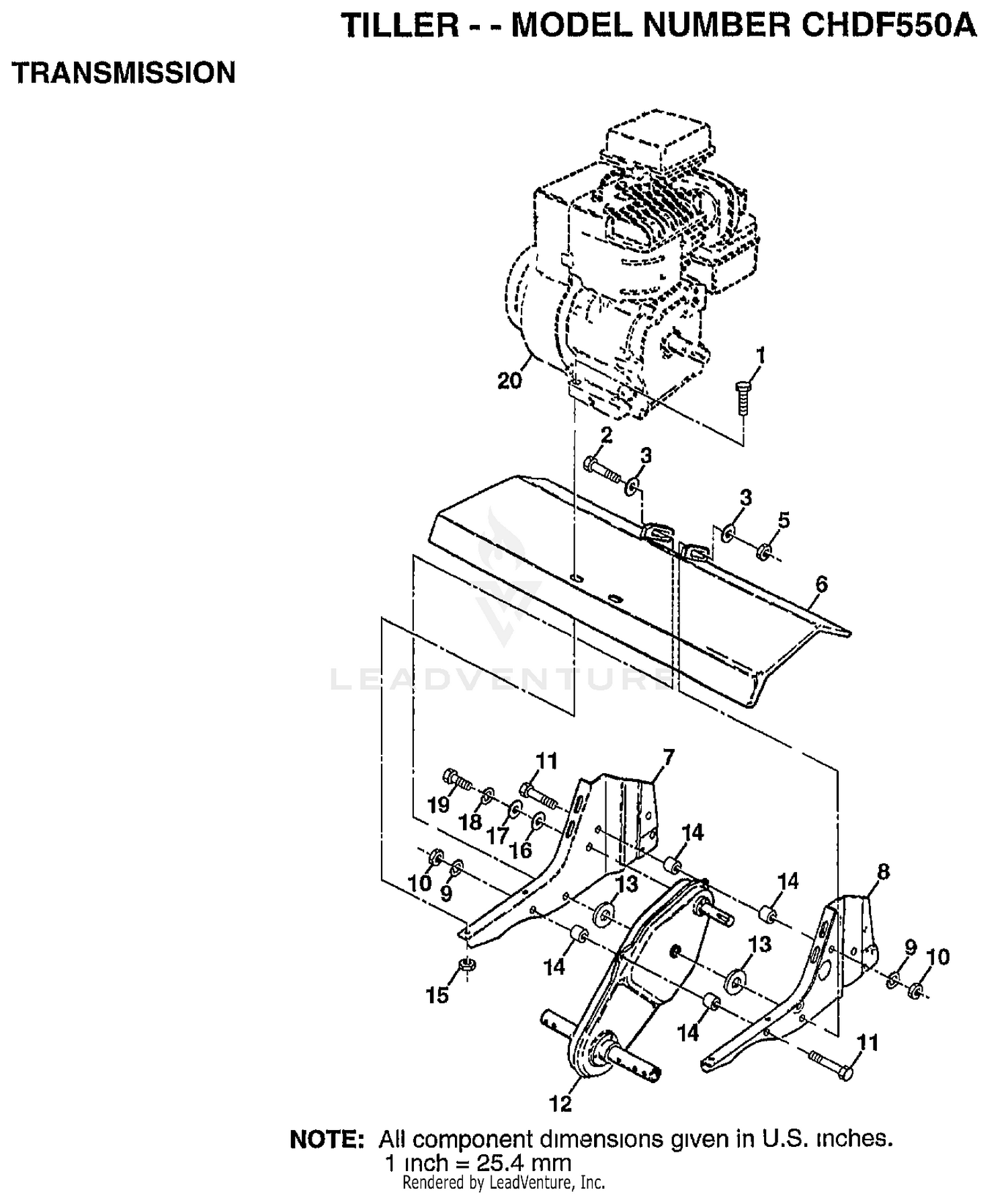

TRANSMISSION
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 74760524 | BOLT.HEX.5/16-1.5 Price: Call Us |
| 1 | 98-9321 | RING-KEY Price: $1.80 |
| 2 | 74780652 | BOLT HEX 3/8-16 Price: Call Us |
| 2 | 98-9315 | LATCH-LOCKING Price: $117.46 |
| 3 | 19131311 | WASHER Price: Call Us |
| 3 | 98-9316 | LATCH-HOOD Price: $61.25 |
| 4 | 3296-16 | NUT-LOCK, NI Price: $1.39 |
| 5 | 65-5100 | HANDLE-DOOR Price: $9.05 |
| 5 | 73800600 | NUT Price: Call Us |
| 6 | 46-8091 | SCREW-HWH Price: $3.59 |
| 6 | 9057R428 | SHIELD TINE Price: Call Us |
| 7 | 104-1412 | BUMPER-RUBBER Price: $16.98 |
| 7 | 1949J | SUB= 1949J500 Price: Call Us |
| 8 | 104-9320 | HOOD ASM Price: $1,966.33 |
| 8 | 110519X | BRACKET.ENG.LH. Price: Call Us |
| 9 | 10040500 | LOCKWASHER Price: Call Us |
| 9 | 133-8095 | DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 10 | 321-4 | SCREW-HH Price: $0.99 |
| 10 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 11 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 11 | 74760544 | SUB= 74780544 Price: Call Us |
| 12 | 104-1419 | STRIP-BULB Price: $47.45 |
| 12 | 151222 | SUB= 165808 Price: Call Us |
| 13 | 19171616 | WASHER Price: Call Us |
| 13 | 3272-4 | PIN-COTTER Price: $0.25 |
| 14 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 14 | 9173R | SPLIT SPACER RT Price: Call Us |
| 15 | 73510500 | NUT Price: Call Us |
| 15 | 75-0570 | CABLE-HOOD Price: $16.66 |
| 16 | 104-0010 | LATCH-DRAW, FLEXIBLE Price: $41.16 |
| 16 | 19091412 | WASHER Price: Call Us |
| 17 | 106-7063 | DECAL Price: $46.94 |
| 17 | 19092016 | WASHER Price: Call Us |
| 18 | 10040400 | LOCKWASHER Price: Call Us |
| 18 | 104-9328-03 | FRAME-HOOD Price: $54.02 |
| 19 | 104-1417 | RIVET-PLASTIC Price: $0.76 |
| 19 | 74610412 | BOLT Price: Call Us |
| 20 | 66-6140 | DECAL Price: $25.48 |
| 21 | 104-1453 | GROMMET Price: $6.57 |
| 22 | 104-0042-03 | STRAP-HINGE Price: $26.35 |
| 23 | 104-0043-03 | SCREEN-REAR Price: $62.15 |
| 24 | 3229-3 | SCREW-CARR Price: $4.49 |
| 25 | 32128-33 | NUT-HF Price: $0.25 |
| 26 | 104-1429 | SPACER-PLAIN Price: $5.05 |
| 27 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 28 | 3256-51 | WASHER-FLAT Price: $0.19 |
| 29 | 104-1452 | SCREW-PPH Price: $1.76 |
| 30 | 104-1451 | SCREW-TAP, PPH Price: $1.29 |
| 31 | 72-3560 | DECAL Price: $12.52 |
| 32 | 321-15 | SCREW-HH Price: $0.61 |
| 33 | 3218-1 | NUT-JAM Price: $1.29 |
| 34 | 3256-16 | WASHER-FLAT Price: $0.39 |
| 35 | 104-1439 | PLATE-LATCH Price: $28.95 |
| 36 | 94-3829 | PIN-CLEVIS Price: $2.10 |
| 37 | 3290-250 | PIN-COTTER Price: $5.59 |
