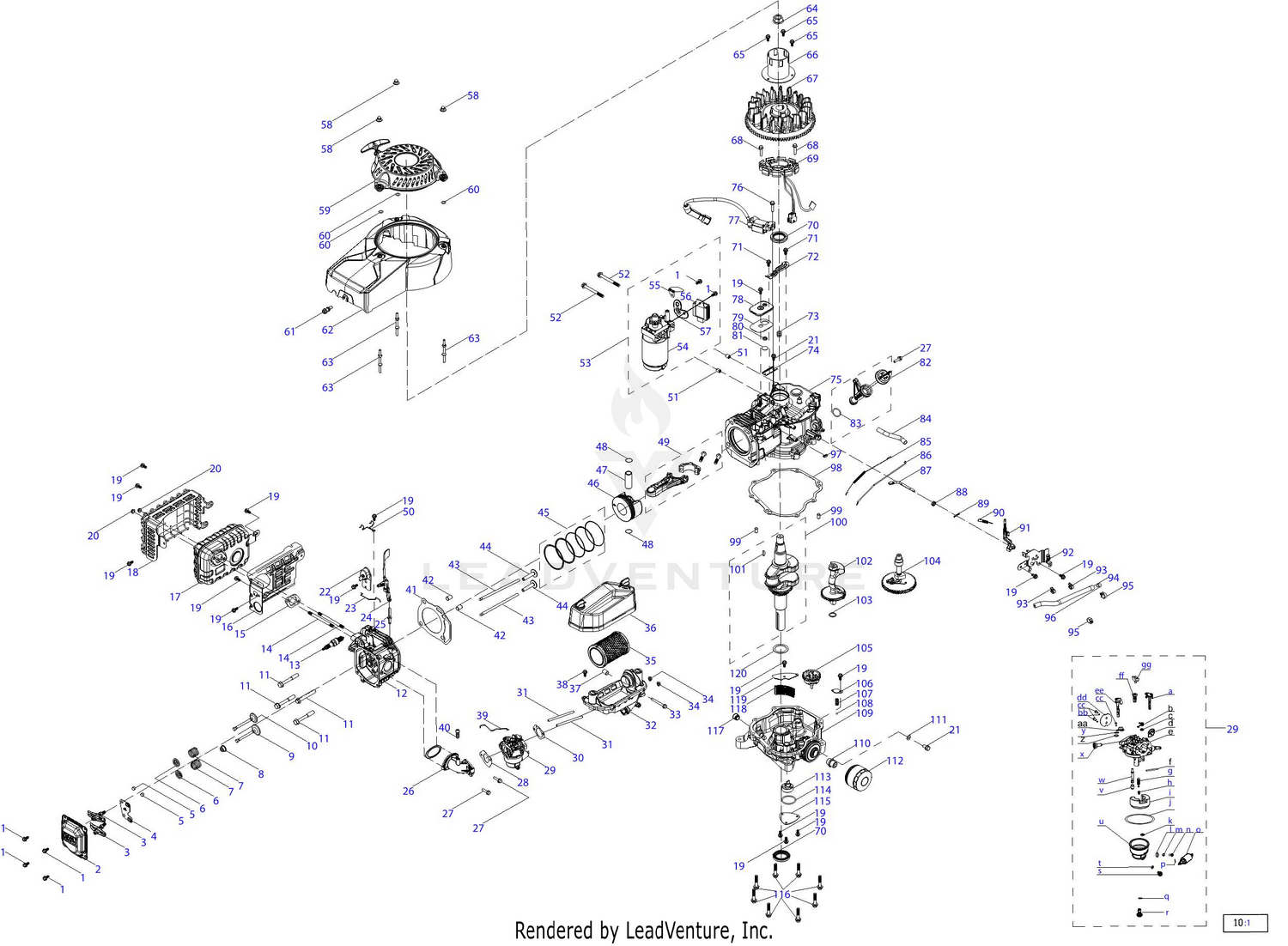

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| aa |
None |
Sheetmetal Housing |
| b |
None |
Choke Return Spring |
| bb |
None |
Lock Washer |
| c |
None |
Flat Steel Washer |
| cc |
None |
Screw M3x5 |
| d |
None |
Choke Plate |
| dd |
None |
Throttle Plate |
| e |
None |
Carburetor Body |
| ee |
None |
Throttle Shaft |
| f |
None |
Float Pin |
| ff |
None |
Idle Jet Assembly |
| g |
None |
Needle Valve |
| h |
None |
Needle Valve Spring |
| i |
None |
Float |
| j |
None |
Fuel Bowl O-Ring |
| k |
None |
Square-Ring |
| l |
None |
Idle Mixture Screw |
| m |
None |
Lock Washer |
| n |
None |
Screw M3x5 |
| o |
None |
Solenoid Valve Assembly |
| p |
None |
Solenoid Valve Washer |
| q |
None |
O-Ring |
| r |
None |
Fuel Bowl Bolt |
| s |
None |
Fuel Drain Plug |
| t |
None |
Fuel Drain Plug Gasket |
| u |
None |
Fuel Bowl |
| v |
None |
Main Jet |
| w |
None |
Emulsion Tube |
| x |
None |
Idle Speed Adjusting Screw |
| y |
None |
Fiber O-Ring |
| z |
None |
Nylon/Plastic O-Ring |
| 1 |
710-04968 |
Bolt, M6x16 Price: $5.77 |
| 2 |
951-15654 |
Valve Cover Price: $13.13 |
| 3 |
951-15655 |
Rocker Arm Assembly Price: $10.52 |
| 4 |
951-15656 |
Rocker Arm Base Price: $5.25 |
| 5 |
951-12269 |
Exhaust Valve Adjuster This part replaces 951-12081. Price: $5.48 |
| 6 |
951-12080 |
Valve Spring Seat Price: $3.68 |
| 7 |
951-12078 |
Valve Spring Price: $3.49 |
| 8 |
951-11964A |
INTAKE VALVE SEAL This part replaces 951-11964. Price: $9.96 |
| 9 |
951-14225 |
Exhaust Valve Price: $18.07 |
| 10 |
951-14224 |
Intake Vavle Price: $19.91 |
| 11 |
710-06291 |
Bolt, M10x1.25x70 Price: $4.31 |
| 12 |
951-15657 |
Cylinder Head Price: $105.37 |
| 13 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 14 |
710-06615 |
Stud, M8x102 Price: $5.35 |
| 15 |
951-15658 |
Gasket, Muffler Price: $6.66 |
| 16 |
951-15659 |
Shroud Price: $18.44 |
| 17 |
951-15660 |
Muffler Price: $78.84 |
| 18 |
951-15661 |
Muffler Guard Price: $27.75 |
| 19 |
710-04916 |
Bolt, M6x14 Price: $3.86 |
| 20 |
751-15427 |
Nut, M8 Price: $3.64 |
| 21 |
710-04915 |
Bolt, M6x12 Price: $3.82 |
| 22 |
951-15707 |
Thermal Switch Price: $28.08 |
| 23 |
951-15708 |
Thermal Lever Price: $5.08 |
| 24 |
951-15709 |
AIRVANE CHOKE Price: $8.76 |
| 25 |
951-14734 |
Stud Price: $5.48 |
| 26 |
951-15711 |
O-Ring,36x2.5 Price: $4.91 |
| 26 |
951-15712A |
INTAKE MANIFOLD This part replaces 951-15712. Price: $12.30 |
| 27 |
710-06292 |
Bolt, M6x22 Price: $4.40 |
| 28 |
951-14947 |
Gasket, Carburetor Price: $7.16 |
| 29 |
951-05555 |
Carburetor Price: $171.23 |
| 30 |
921-04745 |
Gasket, Air Filter Price: $6.13 |
| 31 |
710-06319 |
Stud, M6x92 Price: $5.48 |
| 32 |
951-15713 |
Air Filter Base Assembly Price: $22.83 |
| 33 |
710-05234 |
Bolt, M6x55 Price: $5.38 |
| 34 |
712-05015 |
Nut, M6 Price: $5.78 |
| 35 |
937-05129A |
AIR FILTER W/PREFILTER This part replaces 937-05129. Price: $20.50 |
| 36 |
951-05557 |
Air Filter Cover Assembly Price: $19.11 |
| 37 |
951-15714 |
Bush, 11x6.6x30 Price: $4.19 |
| 38 |
710-05003A |
BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11 |
| 39 |
951-15715 |
Choke Lever Price: $4.19 |
| 40 |
710-06447 |
Self-tappling Screw, ST4.8x16 Price: $4.45 |
| 41 |
951-15716 |
Gasket, Cylinder Head Price: $12.27 |
| 42 |
715-04122 |
Pin, 12x16 Price: $3.52 |
| 43 |
951-15717 |
Push Rod Price: $7.02 |
| 44 |
951-11962A |
TAPPET This part replaces 951-11962. Price: $5.88 |
| 45 |
951-05548 |
Piston Ring Set Price: $26.31 |
| 46 |
951-15718 |
Piston Price: $52.70 |
| 47 |
911-06415 |
Piston Pin Price: $8.96 |
| 48 |
951-11953A |
PISTON PIN SNAP RING This part replaces 951-11953. Price: $3.42 |
| 49 |
951-15719 |
Connecting Rod Assembly Price: $42.14 |
| 50 |
951-15720 |
Wire Rod Price: $4.19 |
| 51 |
915-05026 |
Pin,10x12 Price: $4.40 |
| 52 |
710-06286 |
Bolt, M8x80 Price: $4.40 |
| 53 |
None |
Electric Starter Assembly |
| 54 |
951-05549A |
ELECTRIC STARTER This part replaces 951-05549. Price: $333.70 |
| 55 |
None |
Flywheel Outlet Shield |
| 56 |
925-06299 |
Regulator Price: $35.01 |
| 57 |
951-15721 |
Hook Price: $4.88 |
| 58 |
712-04276A |
ACORN NUT M6-1 This part replaces 712-04276. Price: $5.38 |
| 59 |
951-05556 |
Recoil Starter Price: $96.57 |
| 60 |
736-05109 |
Washer Price: $5.34 |
| 61 |
710-05305 |
Hook Bolt Price: $3.56 |
| 62 |
951-15724 |
Blower Housing Price: $29.83 |
| 63 |
710-06628 |
Stud, M6x83 Price: $5.35 |
| 64 |
912-05102 |
Nut, M20x1.5 Price: $7.35 |
| 65 |
710-04914 |
Bolt, M6x10 Price: $3.71 |
| 66 |
951-15763 |
Starter Cup Price: $13.05 |
| 67 |
951-15725 |
Flywheel Price: $219.52 |
| 68 |
710-06448 |
Bolt, M5x28 Price: $3.32 |
| 69 |
951-15726 |
Charging Coil Price: $86.04 |
| 70 |
937-05134 |
Oil Seal, 35x52x7 Price: $7.02 |
| 71 |
710-06290 |
Bolt, M5x10 Price: $4.31 |
| 72 |
951-15727 |
Wire Board Price: $4.57 |
| 73 |
750-05314 |
Damping Pad Price: $3.53 |
| 74 |
951-14922 |
Wire Board Price: $4.31 |
| 75 |
951-15728 |
Crankcase Price: $298.41 |
| 76 |
710-04943 |
Bolt, M6x28 Price: $3.76 |
| 77 |
994-00136A |
IGNITION COIL This part replaces 994-00136. Price: $68.49 |
| 78 |
951-15729 |
Breather Cover Price: $8.76 |
| 79 |
951-15730 |
Gasket, Breather Cover Price: $7.02 |
| 80 |
732-04718 |
One-way Valve Spring Price: $3.78 |
| 81 |
951-11614 |
Breather Valve Price: $3.53 |
| 82 |
951-15731A |
DIPSTICK ASSEMBLY This part replaces 951-15731. Price: $17.52 |
| 83 |
921-04946 |
O-Ring, Dipstick Price: $3.50 |
| 84 |
951-15732 |
Breather Hose Price: $15.78 |
| 85 |
951-15733 |
Idle Spring Price: $4.02 |
| 86 |
951-15734 |
Throttle Linkage Price: $5.78 |
| 87 |
951-15735 |
Governor Gear Shaft Price: $5.08 |
| 88 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 89 |
714-04078 |
Cotter Pin Price: $3.66 |
| 90 |
951-15738 |
Governor Spring Price: $8.76 |
| 91 |
951-15739 |
Governor Lever Price: $6.34 |
| 92 |
951-15740 |
Governor Gear Bracket Assembly Price: $12.96 |
| 93 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 94 |
993-00171 |
Fuel Hose, 6.3x12.5x270 Price: $8.12 |
| 95 |
723-04071A |
FUEL LINE SUPPORT CLAMP This part replaces 723-04071. Price: $2.77 |
| 96 |
951-14091 |
Plug Price: $4.09 |
| 97 |
951-15741 |
Clip Base Price: $3.50 |
| 98 |
951-15742 |
Gasket, Crankcase Price: $15.78 |
| 99 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 100 |
951-15743 |
Crankshaft Price: $228.73 |
| 101 |
751P10307A |
WOODRUFF KEY This part replaces 714-04094. Price: $2.01 |
| 102 |
951-15744 |
Balance Shaft Price: $57.16 |
| 103 |
936-05112 |
Washer, 17.2x1x26 Price: $4.40 |
| 104 |
951-15745 |
Camshaft Price: $50.92 |
| 105 |
951-15746 |
Governor Gear Price: $17.52 |
| 106 |
951-14895 |
Breather Cover Price: $4.69 |
| 107 |
932-05290 |
Spring Price: $4.40 |
| 108 |
941-05137 |
Steel Ball, 8.731 Price: $4.09 |
| 109 |
951-15747 |
Crankcase Cover Price: $158.05 |
| 110 |
951-12253 |
Connection Pipe Price: $6.87 |
| 111 |
951-15748 |
Washer,6.2x1.5x13 Price: $2.98 |
| 112 |
951-12690 |
Oil Filter Price: $15.89 |
| 113 |
951-05247 |
Oil Pump Price: $51.44 |
| 114 |
921-04742 |
Gasket, Oil Pump Price: $6.13 |
| 115 |
951-14896 |
Oil Pump Cover Price: $4.69 |
| 116 |
710-05306 |
Bolt, M8x40 Price: $3.56 |
| 117 |
951-11644 |
ENGINE PLUG 3/8 NPT Price: $8.96 |
| 118 |
937-05069 |
BREATHER FILTER SCREEN Price: $4.20 |
| 119 |
951-15749 |
Breather Cover Price: $4.34 |
| 120 |
951-15750 |
Washer, 35.4x1x52 Price: $3.50 |
| 952Z7T84MUA |
COMPLETE |
ENGINE 382cc This part replaces 952Z7T84MU. Price: $1,522.06 952Z7T84MUA |
