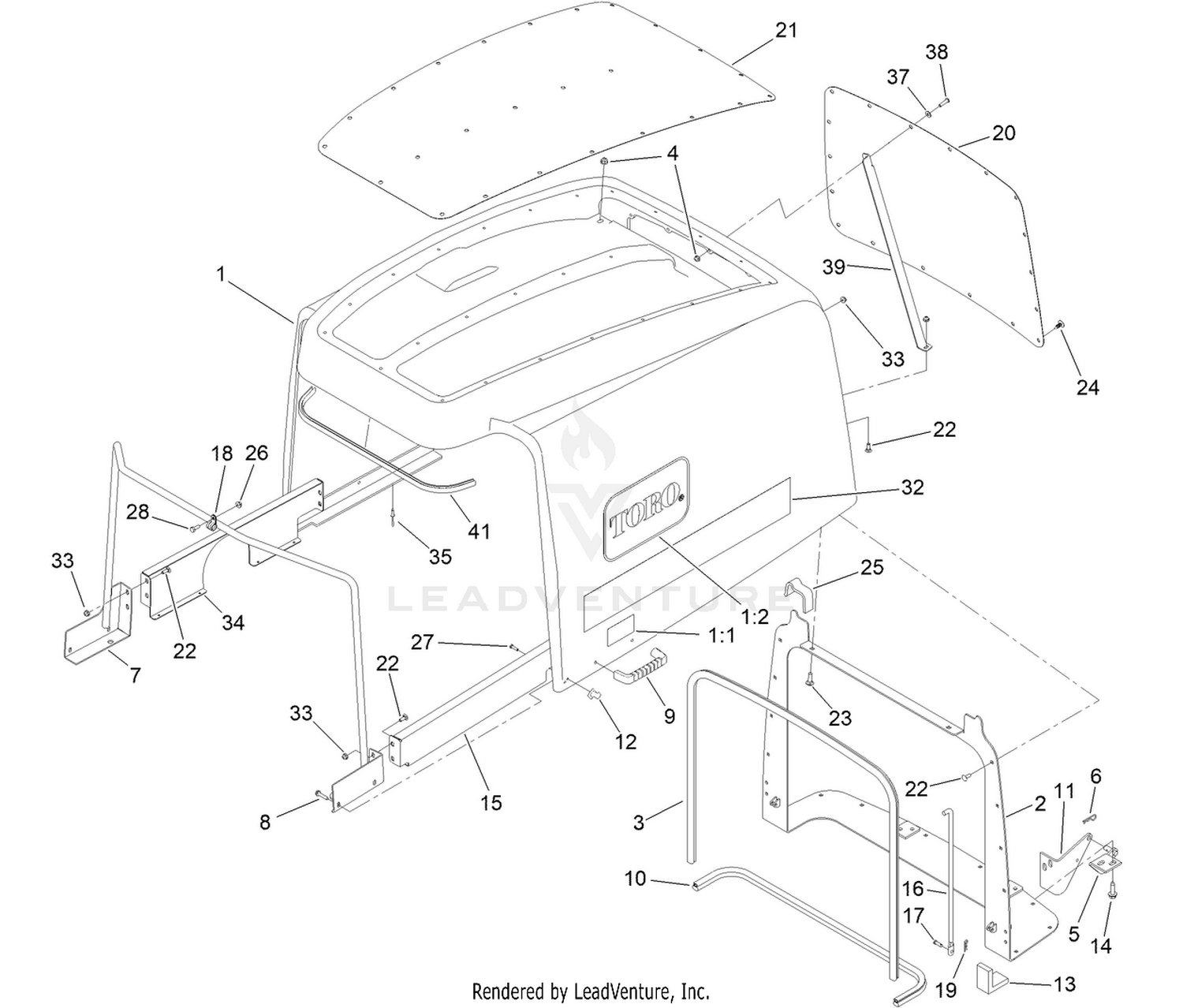

Hood Assembly — Parts Catalog

Ref	Part Number	Description
1	120-9090	HOOD ASM Price: $4,242.71
2	120-9099-0P	HOOD PIVOT ASM Price: $341.70
3	114-3823	SEAL-BULB Price: $64.68
4	104-8300	NUT-HF, NI Price: $0.39
5	121-1470	PIVOT-SCREEN Price: $28.37
6	3290-467	PIN-HAIR Price: $0.27
7	120-4196-0P	HOOD SUPPORT ASM Price: $146.51
8	137-3101	SCREW-PLASTIC, HWH Price: $0.59
9	65-5100	HANDLE-DOOR Price: $9.05
10	104-3590	SEAL-BULB Price: $37.82
11	104-3588-03	PIVOT-SCREEN Price: $32.46
12	103-4081	LATCH-KEEPER Price: $13.99
13	104-3580	SEAL-CORNER, SCREEN Price: $32.63
14	32144-109	SCREW-THD Price: $1.29
15	120-8949-0P	SUPPORT-HOOD, LH Price: $51.81
16	104-8313	ROD-HOOD Price: $58.83
17	283-67	PIN-CLEVIS Price: $2.04
18	2412-134	CLAMP-R Price: $5.79
19	1-806003	PIN-COTTER This part replaces 3290-307. Price: $1.39
20	120-9096-03	SCREEN-HOOD, REAR Price: $87.01
21	120-9097-03	SCREEN-HOOD, TOP Price: $185.70
22	3229-1	BOLT-CARR Price: $3.39
23	3230-2	BOLT-CARR Price: $0.47
24	117-2382	PLUG-PLASTIC Price: $0.69
25	120-9087	SEAL-FOAM Price: $1.77
26	32128-33	NUT-HF Price: $0.25
27	32104-4	SCREW Price: $0.47
28	321-4	SCREW-HH Price: $0.99
32	119-0055	DECAL-HOOD Price: $62.11
33	104-7201	NUT-HF Price: $0.69
34	120-8948-0P	SUPPORT-HOOD, RH Price: $53.08
35	3269-4	RIVET-POP Price: $1.19
37	3256-1	WASHER-FLAT Price: $0.39
38	3274-65	SCREW-HSBH Price: $1.15
39	127-3707-0P	SUPPORT-HOOD Price: $22.24
