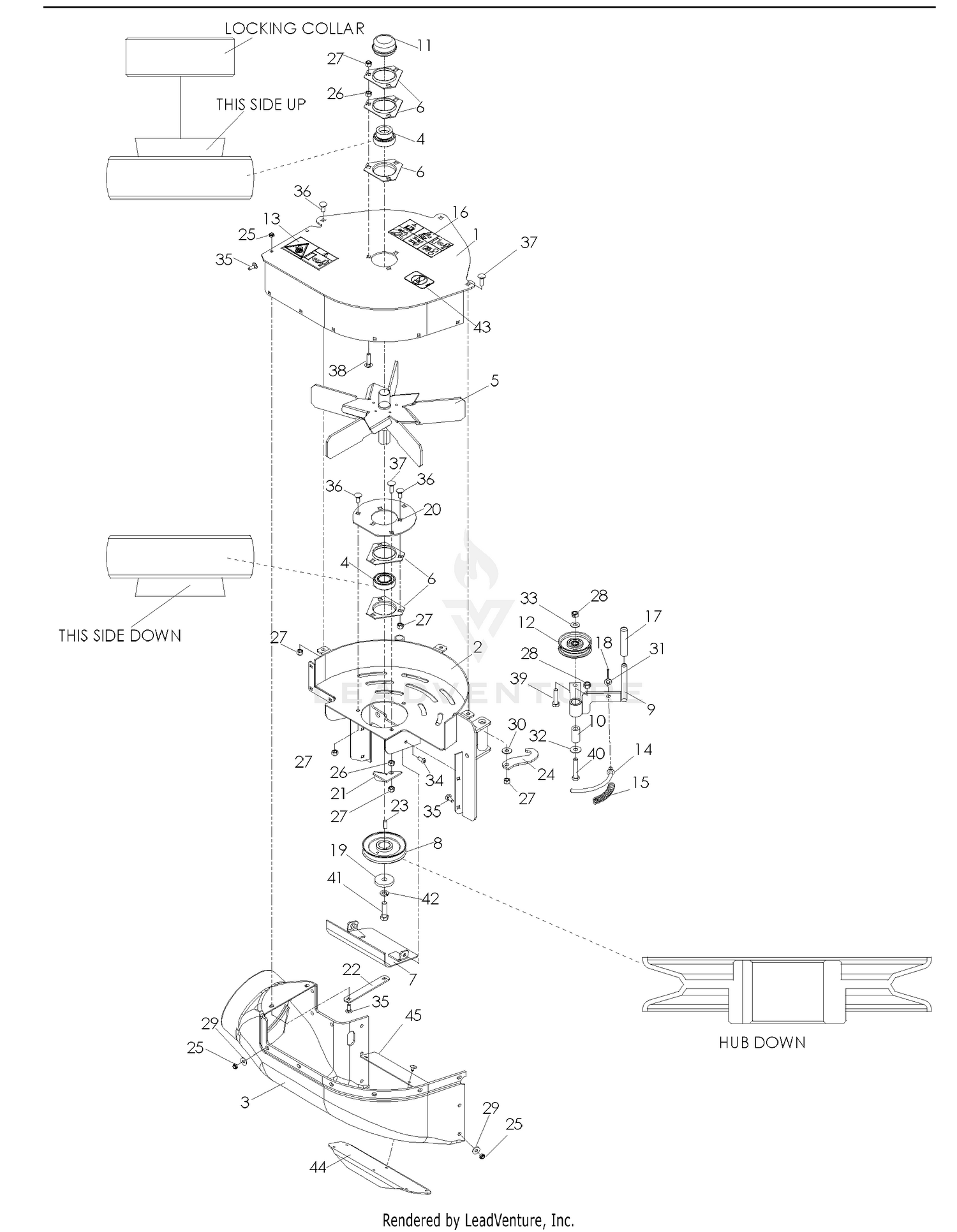

Blower Assembly

Blower Assembly

Parts (76)

RefPart NumberDescription
1 539111331 FAN COVER W/DECALS Price: $179.99
1 83-1050 SPACER Price: $3.26
2 121-9076 MOUNT-ENGINE This part replaces 83-1030. Price: $37.76
2 539108941 BLOWER HOUSING WELDMENT Price: $399.99
3 539109900 LOWER HOUSING Price: $149.99
3 HY3225 DISCONTINUED This part replaces 322-5. Price: Call Us
4 539106786 BEARING KIT-2 PCS Price: $44.99
4 98-4539-03 BRACKET-ENGINE MOUNT, LH Price: $179.96
5 539110111 FAN WELDMENT Price: $179.99
5 98-4543-03 BRACKET-ENGINE MOUNT, RH Price: $180.69
6 539102691 BRG FLANGE Price: $3.99
6 98-9749 PLATE-THROTTLE Price: $29.11
7 3253-21 WASHER-LOCK Price: $0.28
7 539108301 COVER PLATE WELDMENT Price: $60.99
8 3-6657 CLIP-SKID Price: $22.64
8 539106713 SHEAVE 4" Price: $54.99
9 539106715 IDLER ARM Price: $34.99
9 99-3441 HARNESS-WIRE, FUSIBLE LINK Price: $146.90
10 322-4 SCREW-HH Price: $0.35
10 539101836 BUSHING, SLEEVE Price: $2.99
11 595281301 Caps This part replaces 539102535. Price: $4.99
11 98-4513-03 BRACKET-ENGINE, REAR Price: $78.69
12 539106721 PULLEY Price: $25.99
12 93-0095-03 BRACKET-ENGINE, FRONT Price: $111.93
13 3213-2 SCREW-HH Price: $1.90
13 539106741 EURO DECAL, IMPELLER Price: $5.99
14 539106801 SPRING ROD WLDMNT Price: $99.99
15 539106720 SPRING Price: $22.99
15 98-9322 SCREW-HSH Price: $4.89
16 3255-9 WASHER-LOCK Price: $0.28
16 539105785 DECAL, EURO WARNING Price: $8.99
17 539101050 GRIP Price: $2.99
17 98-4598 CABLE-BATTERY, NEGATIVE Price: $69.78
18 110-0035 KIT-ENGINE, KUBOTA DSL This part replaces 99-8980. Price: $8,164.44
18 539990037 COTTER PIN 3/32 X 3/4 Price: $2.99
19 3296-29 NUT-LOCK, NI Price: $2.09
19 596770301 Washers This part replaces 539106504. Price: $4.99
20 3256-78 WASHER-FLAT Price: $1.21
20 539106809 BEARING PLATE - BLACK Price: $12.99
21 43-5930 WASHER-LOCK, SPRING Price: $0.75
21 539106811 BELT GUIDE Price: $6.99
22 48-7890 NUT-HEX Price: $0.25
22 539106812 BACKING (BLACK) Price: $6.99
23 539102067 KEY 1/4 SQ X 3/4 Price: $2.99
23 98-4594 CLAMP-RETAINER Price: $15.98
24 32128-36 NUT-HF Price: $1.56
24 539111303 IDLER ARM KEEPER Price: $5.99
25 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99
25 98-4515-03 BRACKET-REAR ENGINE, LH Price: $62.07
26 596582601 Nuts This part replaces 539990196. Price: $2.99
26 98-4514-03 BRACKET-REAR ENGINE, RH Price: $55.86
27 323-12 SCREW-HH Price: $1.14
27 596583702 Nuts This part replaces 539990717. Price: $2.99
28 3253-7 WASHER-LOCK Price: $0.27
28 595305901 Nuts This part replaces 539990546. Price: $2.99
29 597338501 Washers This part replaces 539990598. Price: $12.99
29 87-5100 WASHER-SNUBBING Price: $3.46
30 3256-40 WASHER-FLAT Price: $2.10
30 596134901 GSPH This part replaces 539990692. Price: $2.99
31 43-0090 SCREW-HH Price: $8.05
31 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99
32 48-9590 WASHER-LOCK This part replaces 42-9600. Price: $0.25
32 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
33 323-10 SCREW-HH Price: $0.89
33 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99
34 596789701 Screws This part replaces 539111229. Price: $1.99
35 596238401 BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99
36 595901601 GSPW Bolts This part replaces 539990316. Price: $2.99
37 595901501 Bolts This part replaces 539990208. Price: $3.99
38 596671401 Bolts This part replaces 539100472. Price: $3.99
39 539990655 HCS 3/8C X 1 1/2 Price: $3.99
40 539990588 HCS 3/8C X 2 Price: $3.99
41 539100141 HCS 7/16F X 1 1/2 Price: $7.99
42 596238901 Washers This part replaces 539990247. Price: $2.99
43 581724301 DECAL.DECK.6MIL.EURO.NOSTEP This part replaces 539105743. Price: $3.99
44 539111340 BLOWER SUPPORT Price: $22.99
