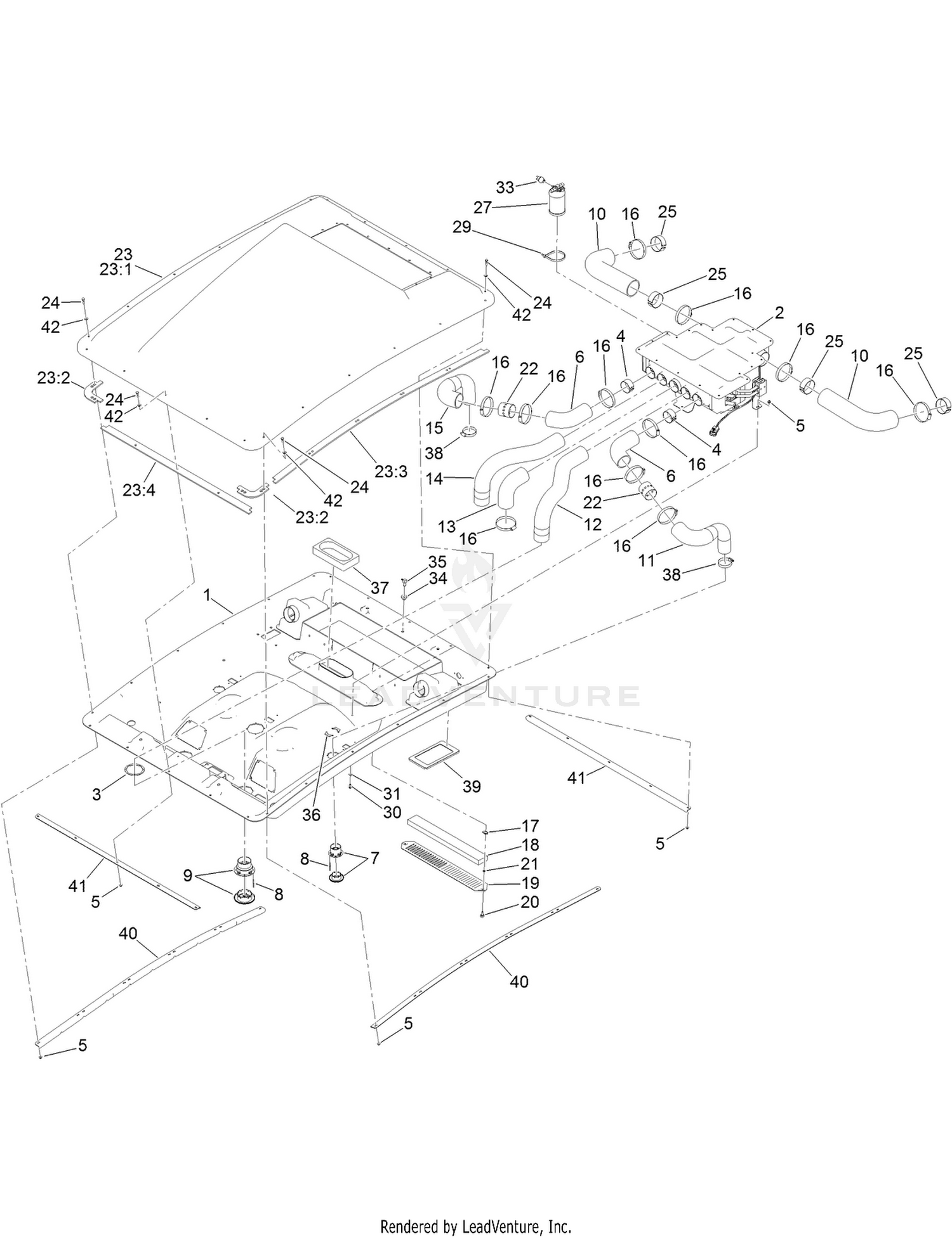

| Ref | Part Number | Description |
|---|
| 1 |
121-8470 |
HEADLINER Price: $1,234.25 |
| 2 |
121-8495 |
BOX-MIXING, HEATER A/C Price: $3,723.40 |
| 3 |
130-0558 |
BACKPLATE-RIVET Price: $10.21 |
| 4 |
130-5938 |
TUBE-SUPPORT Price: $14.24 |
| 5 |
104-7201 |
NUT-HF Price: $0.69 |
| 6 |
130-5860 |
HOSE-VENT Price: $34.14 |
| 7 |
130-0455 |
LOUVER-ROUND, SNAP-IN Price: $31.16 |
| 8 |
125-7503 |
RIVET-POP Price: $0.68 |
| 9 |
130-0465 |
LOUVER-ROUND, SNAP-IN (4 INCH) Price: $54.73 |
| 10 |
121-8473 |
HOSE-INTAKE, FRESH AIR Price: $56.10 |
| 11 |
130-5861 |
HOSE-VENT, OUTER (LH) Price: $51.61 |
| 12 |
121-8477 |
HOSE-VENT, DEFROST (LH) Price: $62.74 |
| 13 |
130-0437 |
HOSE-VENT, CENTER Price: $36.68 |
| 14 |
121-8478 |
HOSE-VENT, DEFROST (RH) Price: $62.74 |
| 15 |
130-5862 |
HOSE-VENT, OUTER (RH) Price: $63.34 |
| 16 |
2412-110 |
CLAMP-BAND/SCREW Price: $3.60 |
| 17 |
107069 |
CLIP Price: $1.79 |
| 18 |
125-9532 |
FILTER-CAB, INSIDE Price: $13.02 |
| 19 |
125-9604-03 |
PLATE-COVER, RECIRCULATION Price: $32.77 |
| 20 |
125-7438 |
KNOB-SCREW, THUMB Price: $2.73 |
| 21 |
32115-15 |
PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 22 |
130-5927 |
ADAPTER-BLEED Price: $12.10 |
| 23 |
132-3601 |
ROOF ASM Price: $735.66 |
| 24 |
136-8674 |
BOLT-PIVOT, ECCENTRIC Price: $1.79 |
| 25 |
130-5939 |
TUBE-SUPPORT Price: $15.68 |
| 27 |
130-5999 |
DRIER-RECEIVER Price: $126.38 |
| 29 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 30 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 31 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 33 |
119-4501 |
SWITCH-FUNCTION, DUAL Price: $66.48 |
| 34 |
46-6560 |
BUSHING Price: $2.94 |
| 35 |
104-5228 |
FITTING-ELBOW, 90 DEG Price: $17.50 |
| 36 |
130-0445 |
BACKPLATE-RIVET Price: $3.74 |
| 37 |
130-0444 |
FOAM-INLET, AIRBOX Price: $15.21 |
| 38 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 39 |
132-3474 |
INSERT-SEAL, FILTER Price: $68.15 |
| 40 |
132-1461-03 |
STRAP-CAB, SIDE Price: $71.49 |
| 41 |
132-1462-03 |
STRAP-CAB Price: $47.00 |
