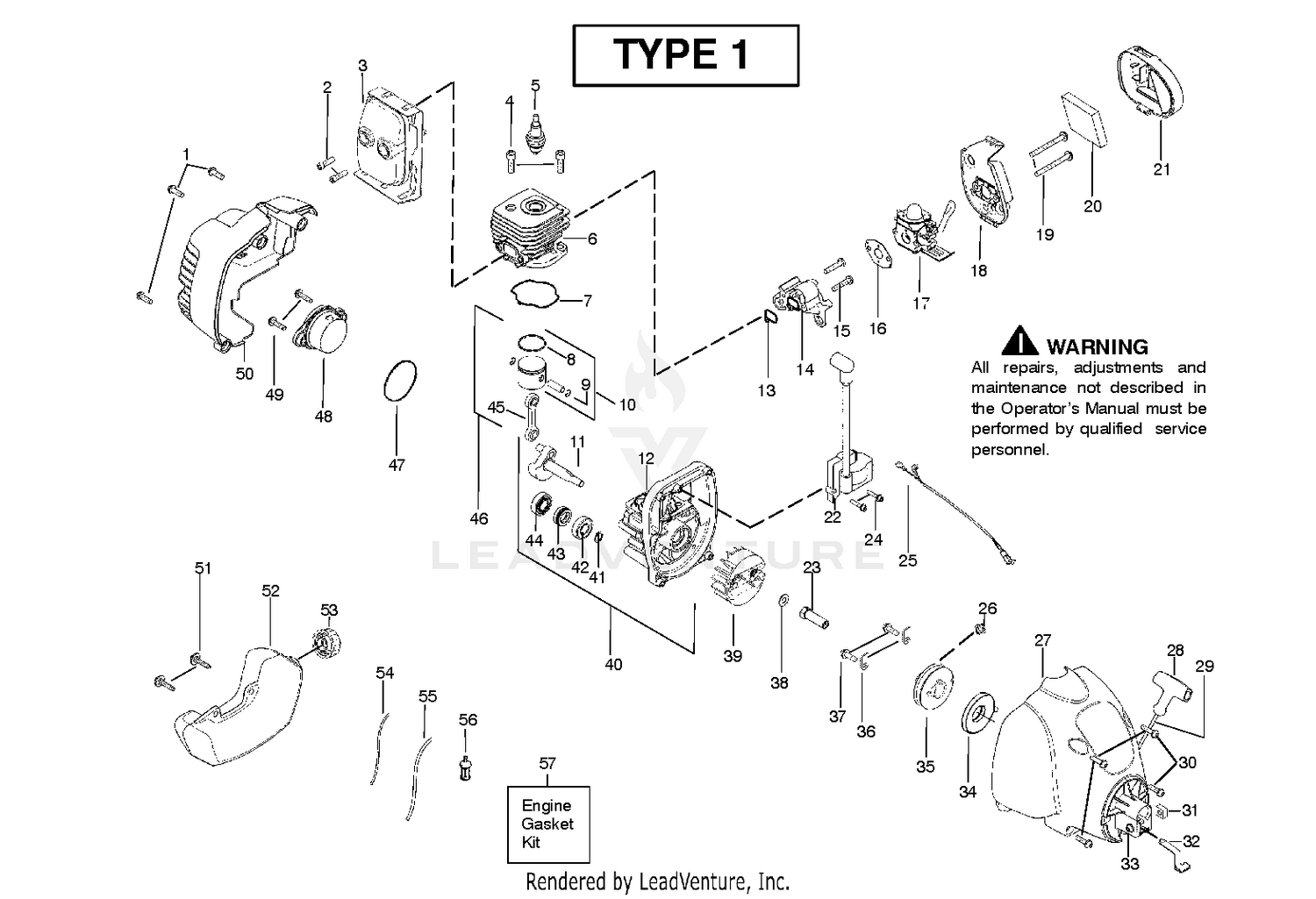

ENGINE
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3217-6 | NUT-HEX Price: $1.19 |
| 1 | 530015814 | SCREW Price: $1.99 |
| 2 | 3253-24 | WASHER-LOCK/SP Price: $0.37 |
| 2 | 530058982 | BOLT MUFFLER Price: $1.99 |
| 3 | 322-3 | SCREW-HH Price: $0.79 |
| 3 | 530059825 | ASSEMBLY Price: $11.99 |
| 4 | 27-9870 | PIN-SWITCH, SEAT Price: $31.55 |
| 4 | 530015953 | SCREW Price: $1.99 |
| 5 | 37-9780 | DISCONTINUED Price: Call Us |
| 5 | 952030249 | PLUG-SPARK (RCJ-6Y) Price: $3.99 |
| 6 | 32121-6 | PIN-ROLL, SLOTTED Price: $0.28 |
| 6 | 530012541 | CYLINDER MACHINED 25CC LO Price: $11.99 |
| 7 | 530071750 | KIT GASKET 25CC Price: $8.99 |
| 8 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 | 530015162 | WRIST PIN RET. Price: $1.99 |
| 10 | 530071833 | PISTON KIT Price: $22.99 |
| 11 | 530057829 | ASSY CRANKSHAFT Price: $12.99 |
| 12 | 530012582 | ASSY CRANKCASE Price: $12.99 |
| 13 | 530071750 | KIT GASKET 25CC Price: $8.99 |
| 14 | 530057547 | ADAPTOR CARBURETOR Price: $7.99 |
| 15 | 530016441 | SCREW Price: $1.99 |
| 16 | 530071750 | KIT GASKET 25CC Price: $8.99 |
| 17 | 530071822 | KIT CARB ASSY # C1U-W24 This part replaces 530071752. Price: $29.99 |
| 17 | TBD | Price: Call Us |
| 18 | 580731001 | BASE AIRBOX BLACK This part replaces 530057585. Price: $1.99 |
| 19 | 530016429 | SCREW Price: $1.99 |
| 20 | 530057781 | FOAM AIR FILTER Price: $1.99 |
| 21 | 530057584 | COVER AIR BOX Price: $4.99 |
| 22 | 578287001 | IGNITION MODULE This part replaces 545024901. Price: $11.99 |
| 23 | 530038604 | DRIVE-COUPLING Price: $1.99 |
| 24 | 530016357 | SCREW Price: $1.99 |
| 25 | 530049018 | CABLE ASSY Price: $7.99 |
| 26 | 530016392 | SCREW SEMS TOOTHED WASHER Price: $1.99 |
| 27 | 545010608 | COVER Price: $17.99 |
| 28 | 530027569 | HANDLE-STARTER Price: $1.99 |
| 29 | 530071767 | KIT ROPE Price: $3.99 |
| 30 | 530016386 | SCREW Price: $5.99 |
| 31 | 530016124 | NUT SQUARE Price: $1.99 |
| 32 | 530057588 | CLIP Price: $1.99 |
| 33 | 530016430 | SCREW Price: $2.99 |
| 34 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 35 | 530071786 | STARTER PULLEY KIT Price: $3.99 |
| 36 | 530027523 | RETAINER Price: $2.99 |
| 37 | 530015775 | SCREW 8-16 X 9/16 (PLAS Price: $1.99 |
| 38 | 530015828 | WASHER FLAT Price: $1.99 |
| 39 | 545221701 | FLYWHEEL ASSY This part replaces 545005101. Price: $8.99 |
| 40 | 530071768 | ASSEMBLY Price: $19.99 |
| 41 | 530015941 | RETAINING RING Price: $1.99 |
| 42 | 530055728 | OUTER BEARING Price: $6.99 |
| 43 | 530019264 | SEAL Price: $2.99 |
| 44 | 530032125 | BEARING Price: $11.99 |
| 45 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 46 | 530071785 | PISTON KIT Price: $29.99 |
| 47 | 530071750 | KIT GASKET 25CC Price: $8.99 |
| 48 | 530057954 | ASSY REAR PLUG Price: $3.99 |
| 49 | 530016386 | SCREW Price: $5.99 |
| 50 | 545011004 | CYLINDER COVER Price: $2.99 |
| 51 | 530016445 | SCREW FUEL TANK RETAINER Price: $1.99 |
| 52 | 545103702 | Assy-Fuel Tank This part replaces 530058712. Price: $17.99 |
| 53 | 530014347 | CAP ASSY W/ RETAINER Price: $4.99 |
| 54 | 530069247 | KIT-LINE Price: $3.99 |
| 55 | 530069216 | LINE KIT Price: $3.99 |
| 56 | 530095646 | FUEL PICK-UP ASSY Price: $2.99 |
| 57 | 530071750 | KIT GASKET 25CC Price: $8.99 |
