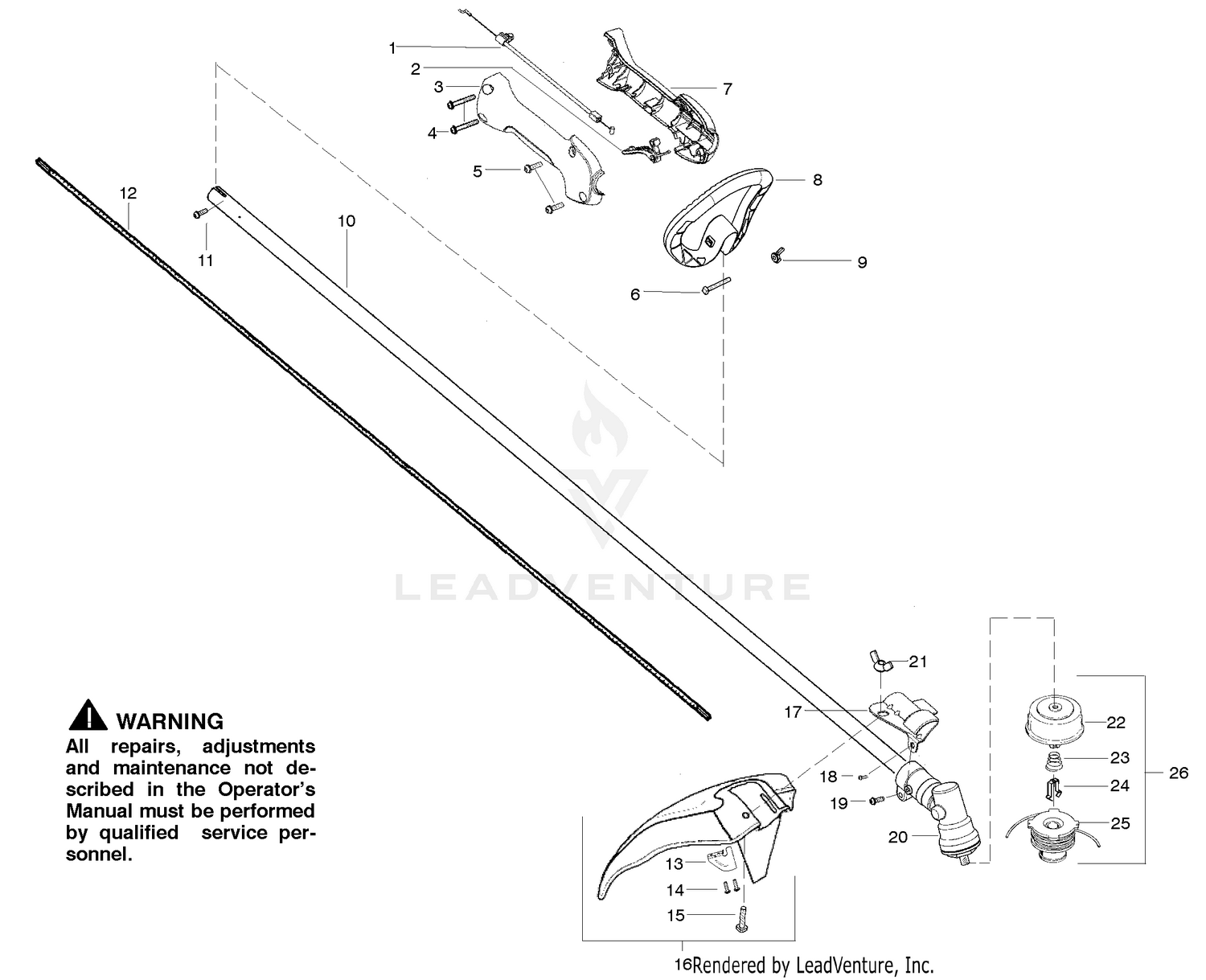

Handle and Controls
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-7773 | SCREW-HSH Price: $8.36 |
| 1 | 530057566 | Assy-Throttle Cable Price: $8.99 |
| 2 | 3234-7 | SCREW-HHF Price: $1.99 |
| 2 | 530058000 | Trigger Price: $2.99 |
| 3 | 107-2996 | FRONT GRASS SHIELD ASM Price: $69.51 |
| 3 | 530058751 | Throttle Hsg. (Right) Price: $6.99 |
| 4 | 125-1978 | SHIELD-GRASS, REAR This part replaces 107-7779-01. Price: $66.83 |
| 4 | 530016406 | Screw Price: $1.99 |
| 5 | 3256-74 | WASHER-FLAT Price: $0.27 |
| 5 | 530015814 | Screw Price: $1.99 |
| 6 | 322-14 | SCREW-HH Price: $1.01 |
| 6 | 530015786 | Bolt-Handle Price: $1.99 |
| 7 | 110-1706 | DEFLECTOR Price: $4.76 |
| 7 | 530058750 | Throttle Hsg. (Left) Price: $6.99 |
| 8 | 530058754 | Handle-Assist Price: $1.56 |
| 9 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 10 | 530071780 | Assy-Drive Shaft Hsg. Price: $27.99 |
| 11 | 530015805 | Screw Price: $1.99 |
| 12 | 530096169 | Shaft- Flex Price: $14.99 |
| 13 | 530052285 | Line Limiter Price: $1.99 |
| 14 | 530015814 | Screw Price: $1.99 |
| 15 | 530015820 | Bolt-Shield Price: $1.99 |
| 17 | 545150701 | Bracket-Shield Price: $2.99 |
| 18 | 530016224 | Screw Price: $1.99 |
| 19 | 530016014 | Screw Price: $1.99 |
| 20 | 530096099 | Assy-Gearbox Price: $32.99 |
| 21 | 530091373 | Nut This part replaces 530016152. Price: $1.99 |
| 22 | 530095772 | Assy-Hub. Price: $5.42 |
| 23 | 530053241 | Spring Price: $1.99 |
| 24 | 530401957 | Retainer Price: $1.99 |
| 25 | 952711551 | Accy-Spool w/Line Price: $8.95 |
| 26 | 952711550 | Accy-Head TNG VI Assy. Price: $18.95 |
