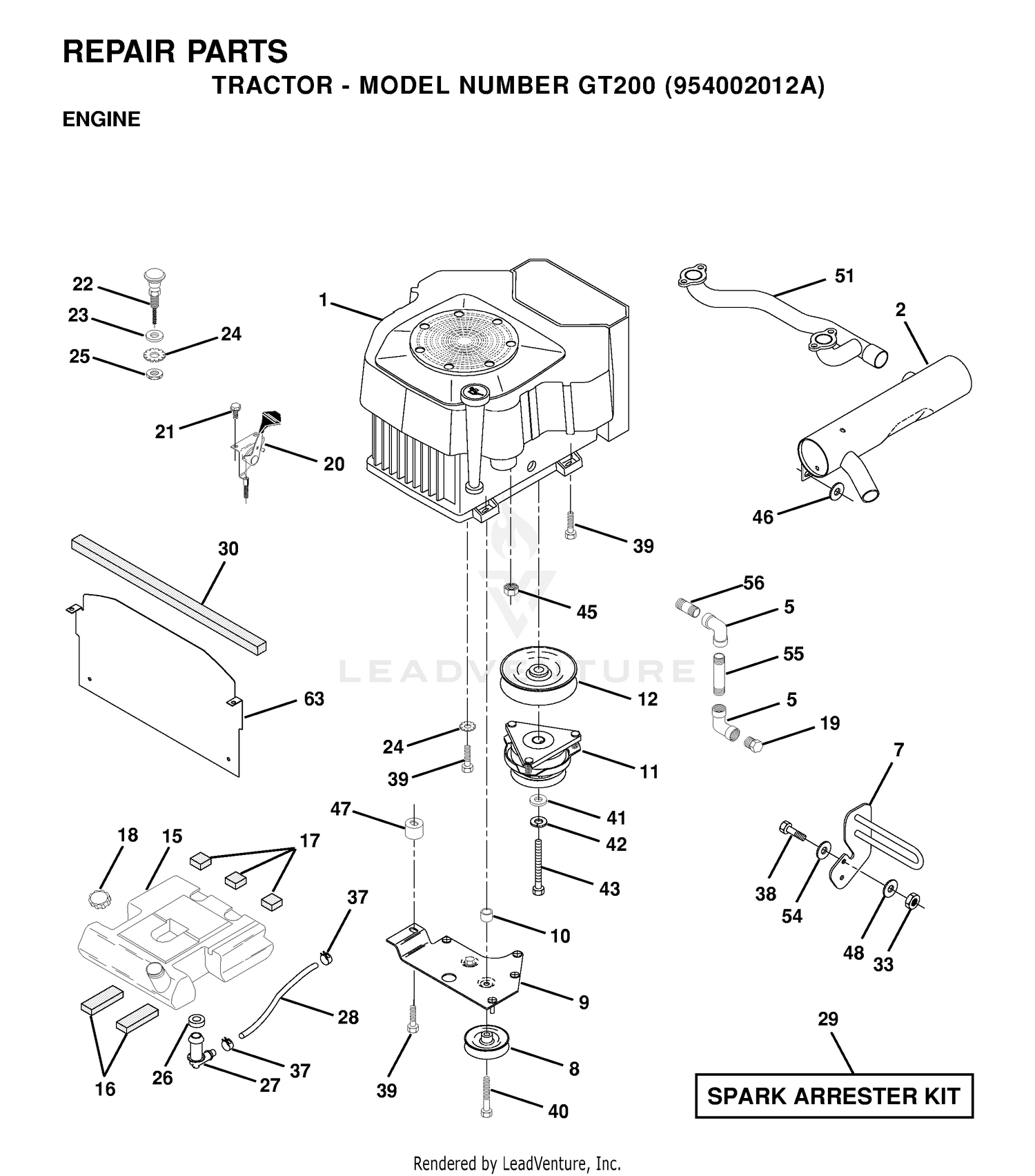

| Ref | Part Number | Description |
|---|
| 1 |
127-3189 |
GASKET KIT Price: $835.82 |
| 2 |
127-3126 |
GASKET-HEAD, CYLINDER Price: $178.72 |
| 2 |
532161062 |
MUFFLER This part replaces 532144636. Price: $94.56 |
| 3 |
127-3106 |
GASKET-COVER Price: $49.95 |
| 4 |
127-2986 |
SEAL-STEM, VALVE Price: $6.38 |
| 5 |
127-3027 |
SEAL-STEM, VALVE Price: $6.79 |
| 5 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 6 |
127-3021 |
GASKET-INJECTOR Price: $4.54 |
| 7 |
127-3107 |
GASKET-MANIFOLD, INTAKE Price: $21.63 |
| 7 |
532143599 |
MUFFLER GUARD Price: $20.55 |
| 8 |
127-3032 |
O RING-SENSOR, PRESSURE Price: $18.19 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
127-3033 |
O-RING Price: $13.39 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE This part replaces 532145109. Price: $12.99 |
| 10 |
127-3034 |
GASKET-COLLECTOR Price: $9.66 |
| 10 |
532105432 |
BUSHING Price: $4.99 |
| 11 |
127-3037 |
GASKET-THROTTLE Price: $2.87 |
| 11 |
532174509 |
CLUTCH KIT This part replaces 532140923. Price: $449.99 |
| 12 |
127-3108 |
GASKET-MANIFOLD, EXHAUST Price: $14.96 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 13 |
121-3058 |
GASKET-EXHAUST This part replaces 127-3019. Price: $19.54 |
| 14 |
127-2987 |
GASKET-SILENCER Price: $13.97 |
| 15 |
127-3043 |
GASKET-COOLER, E G R Price: $3.64 |
| 15 |
532151346 |
FUEL TANK 3.5G This part replaces 532141069. Price: $84.99 |
| 16 |
127-3046 |
GASKET-E G R Price: $4.88 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
127-3016 |
GASKET Price: $3.83 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 18 |
127-3050 |
GASKET-INTAKE VALVE, E G R Price: $5.09 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 19 |
127-3051 |
GASKET-OUT VALVE, E G R Price: $4.47 |
| 19 |
813290300 |
PLUG T Price: $3.99 |
| 20 |
127-3162 |
GASKET-D P F Price: $19.60 |
| 20 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $20.99 |
| 21 |
127-3056 |
GASKET-SENSOR Price: $2.23 |
| 21 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 22 |
125-7070 |
GASKET Price: $4.75 |
| 22 |
532132781 |
CHOKE CONTROL Price: $22.99 |
| 23 |
125-7071 |
GASKET Price: $7.59 |
| 23 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 24 |
127-3069 |
GASKET-IDLE, SHAFT B Price: $4.14 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 25 |
127-3004 |
GASKET Price: $2.73 |
| 25 |
873610600 |
NUT Price: $2.99 |
| 26 |
125-6909 |
O-RING Price: $2.55 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
127-2973 |
O-RING Price: $3.16 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
125-7022 |
GASKET Price: $7.07 |
| 29 |
125-7024 |
GASKET Price: $3.16 |
| 29 |
532132920 |
SPARK ARRESTOR Price: $43.09 |
| 30 |
125-7047 |
GASKET Price: $5.13 |
| 30 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
| 31 |
125-7048 |
O-RING Price: $2.87 |
| 32 |
125-6979 |
GASKET Price: $2.55 |
| 33 |
125-7110 |
GASKET Price: $3.76 |
| 33 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 34 |
125-7026 |
GASKET Price: $2.90 |
| 35 |
125-6978 |
GASKET Price: $2.00 |
| 36 |
127-3074 |
O-RING Price: $29.78 |
| 37 |
125-7174 |
WASHER-SEAL Price: $5.45 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
125-7175 |
WASHER-SEAL Price: $6.16 |
| 38 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 39 |
125-7176 |
WASHER-SEAL Price: $7.31 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
127-3166 |
WASHER-SEAL Price: $6.77 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
125-7177 |
WASHER-SEAL Price: $6.86 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
125-7192 |
GASKET Price: $1.14 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
125-7193 |
GASKET Price: $1.28 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170768. Price: $2.99 |
| 44 |
127-3174 |
GASKET Price: $1.28 |
| 45 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 45 |
93-0418 |
O-RING Price: $7.29 |
| 46 |
125-7197 |
O-RING Price: $2.55 |
| 46 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 47 |
125-7198 |
O-RING Price: $7.26 |
| 47 |
532142040 |
SPACER.ENGINE.CV22.ROUND.PM Price: $3.99 |
| 48 |
127-3176 |
O-RING Price: $2.87 |
| 48 |
819132007 |
Washer 13/32 x 1-1/4 x 7 Ga. Price: $3.99 |
| 49 |
127-3000 |
HONE Price: $654.34 |
| 51 |
532161230 |
MANIFOLD PIPE VGT This part replaces 532140787. Price: $84.15 |
| 54 |
819131414 |
WASHER Price: $3.99 |
| 55 |
813280336 |
Nipple, Pipe 4-1/2" This part replaces 813090336. Price: $2.42 |
| 56 |
813090308 |
NIPPLE, PIPE 3/8 NPTX1.00 Price: $4.99 |
| 63 |
532145549 |
SHIELD, HEAT VGT YP/HUSQ Price: $10.99 |
