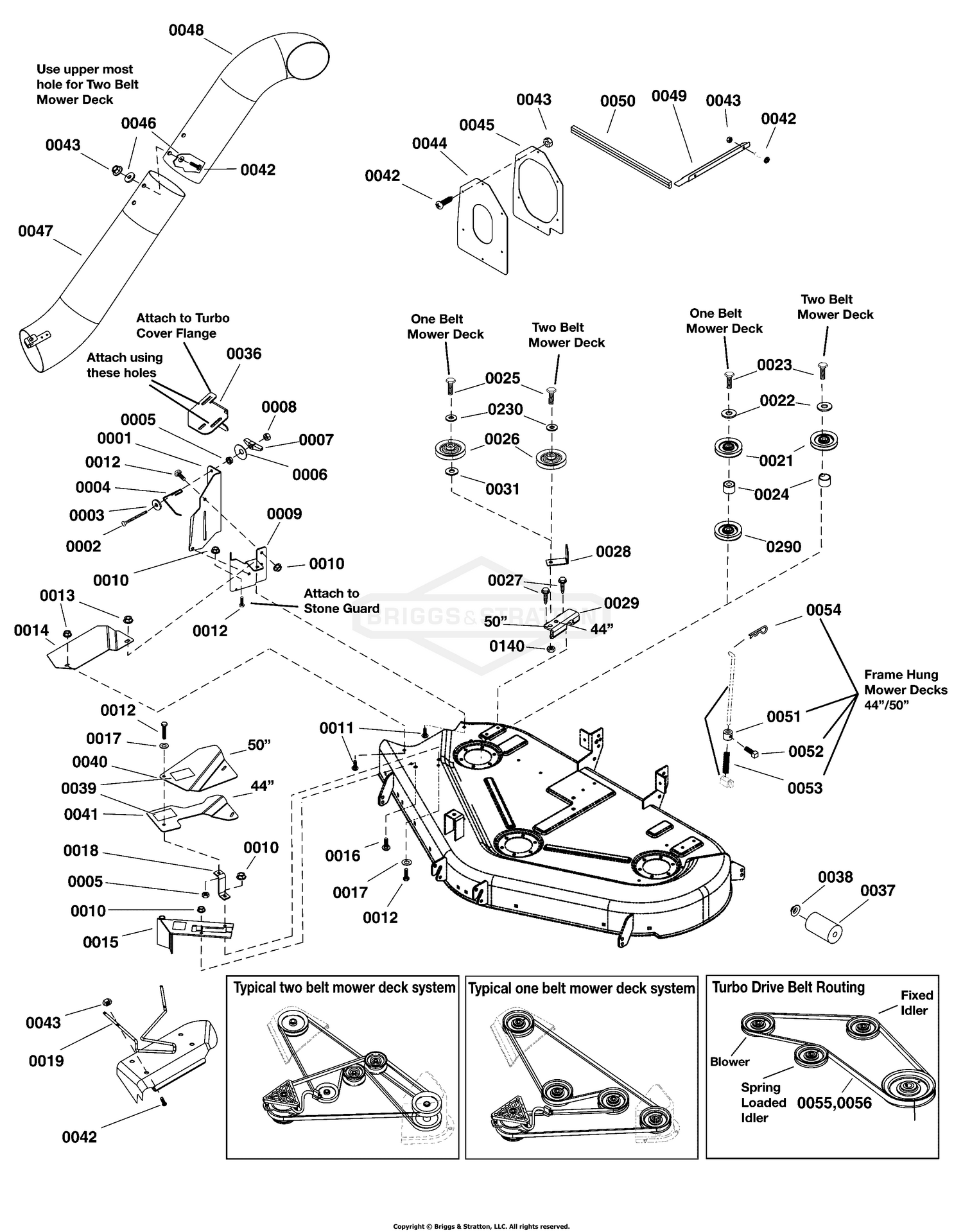

| Ref | Part Number | Description |
|---|
| 0001 |
1732619ASM |
BAFFLE, Turbo Price: $25.50 |
| 0002 |
1960318SM |
CAPSCREW, Hex Head, 5/16-18 x 2-1/2 G5 Flat Black Price: $4.16 |
| 0003 |
703298 |
WASHER, 5/16 Price: $3.94 |
| 0004 |
1705064SM |
SPRING, Latch, .125WIRE 4.3LG Black Price: $41.33 |
| 0005 |
1960636SM |
NUT, Hex, 5/16-18 Price: $4.05 |
| 0006 |
1709256SM |
WASHER, Spring, 5/16 x 1 1/4 Price: $5.26 |
| 0007 |
703065 |
WINGKNOB, 5/16-18 Price: $6.46 |
| 0008 |
703902 |
NUT, HEX, 5/16-18 Price: $3.50 |
| 0009 |
1732592ASM |
BRACKET, Baffle Price: $41.95 |
| 0010 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0011 |
703101 |
BOLT,1/4-20X.75 This part replaces 703576. Price: $3.63 |
| 0012 |
703408 |
CAPSCREW, 5/16-18 Price: $4.05 |
| 0013 |
703061 |
NUT, HEX KEPS, 1/4-20 Price: $3.19 |
| 0014 |
1732591ASM |
COVER, Mower Price: $37.42 |
| 0015 |
1722546ASM |
PIVOT & BRACKETS ASSEMBLY, 38, 44 & 50" Price: $194.66 |
| 0016 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0017 |
1919326SM |
WASHER, 5/16 Price: $3.61 |
| 0018 |
1718304ASM |
SUPPORT, Belt Cover 10GA 1.0WD 3.0LG Price: $13.03 |
| 0019 |
1718295ASM |
ROD, .375DIA 22.0LG This part replaces 1718295SM. Price: $104.34 |
| 0021 |
1713090SM |
PULLEY, 3 3/4 Price: $23.24 |
| 0022 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0023 |
1927531SM |
CAPSCREW-HEX HD 7/16- Price: $4.89 |
| 0024 |
706363 |
SPACER, HUB Price: $15.30 |
| 0025 |
703589 |
CAPSCREW, 3/8-16X2 Price: $3.94 |
| 0026 |
1721134SM |
PULLEY, 3" OD Price: $26.68 |
| 0027 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0028 |
1724373ASM |
BRACKET, L 12GA 1.24WD 2.24LG 2.28LG Price: $15.98 |
| 0029 |
1756261AYP |
BRACKET, Idler Pulley Price: $115.15 |
| 0031 |
704128 |
WASHER Price: $4.49 |
| 0036 |
1733077ASM |
LATCH - 38" Turbo Price: $52.72 |
| 0037 |
1713540SM |
ROLLER, 2 1/2 OD Price: $40.25 |
| 0038 |
771009 |
PUSHNUT, 5/8 Price: $3.17 |
| 0039 |
5103184YP |
DECAL, WARNING, ENG Price: $11.43 |
| 0040 |
1724376ASM |
COVER, Belt, 50" Price: $20.34 |
| 0041 |
1724374ASM |
COVER, Belt, 44" Price: $21.32 |
| 0042 |
1960404SM |
SCREW, Truss Head, Phillips, #10-24 x 3/4, Price: $3.39 |
| 0043 |
703412 |
NUT, NYLOCK, 10-24 Price: $3.72 |
| 0044 |
1733741YP |
SEAL This part replaces 1733741SM. Price: $26.86 |
| 0045 |
1732735ASM |
FLANGE, Seal Price: $37.42 |
| 0046 |
1910531SM |
WASHER, Rivet, 3/16 Price: $3.47 |
| 0047 |
1719719SM |
ASSEMBLY, Tube & Clip, Lower Price: $149.79 |
| 0048 |
1732800SM |
ELBOW, Vacuum Price: $69.18 |
| 0049 |
1733580ASM |
PLATE, Deflector Price: $32.09 |
| 0050 |
1721175SM |
EDGING, Seal This part replaces 1733579SM. Price: $36.28 |
| 0051 |
1719777SM |
COLLAR, Set Price: $13.14 |
| 0052 |
1928721SM |
SETSCREW, Square Head, 5/16-18 x 1/2, G8 Price: $4.19 |
| 0053 |
1729277SM |
SPRING, Composite, 3-5/8 Price: $6.12 |
| 0054 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0140 |
703347 |
NUT, 3/8-16 Price: $4.26 |
| 0230 |
703878 |
WASHER, FLAT Price: $3.40 |
