| Ref | Part Number | Description |
|---|
| 1 |

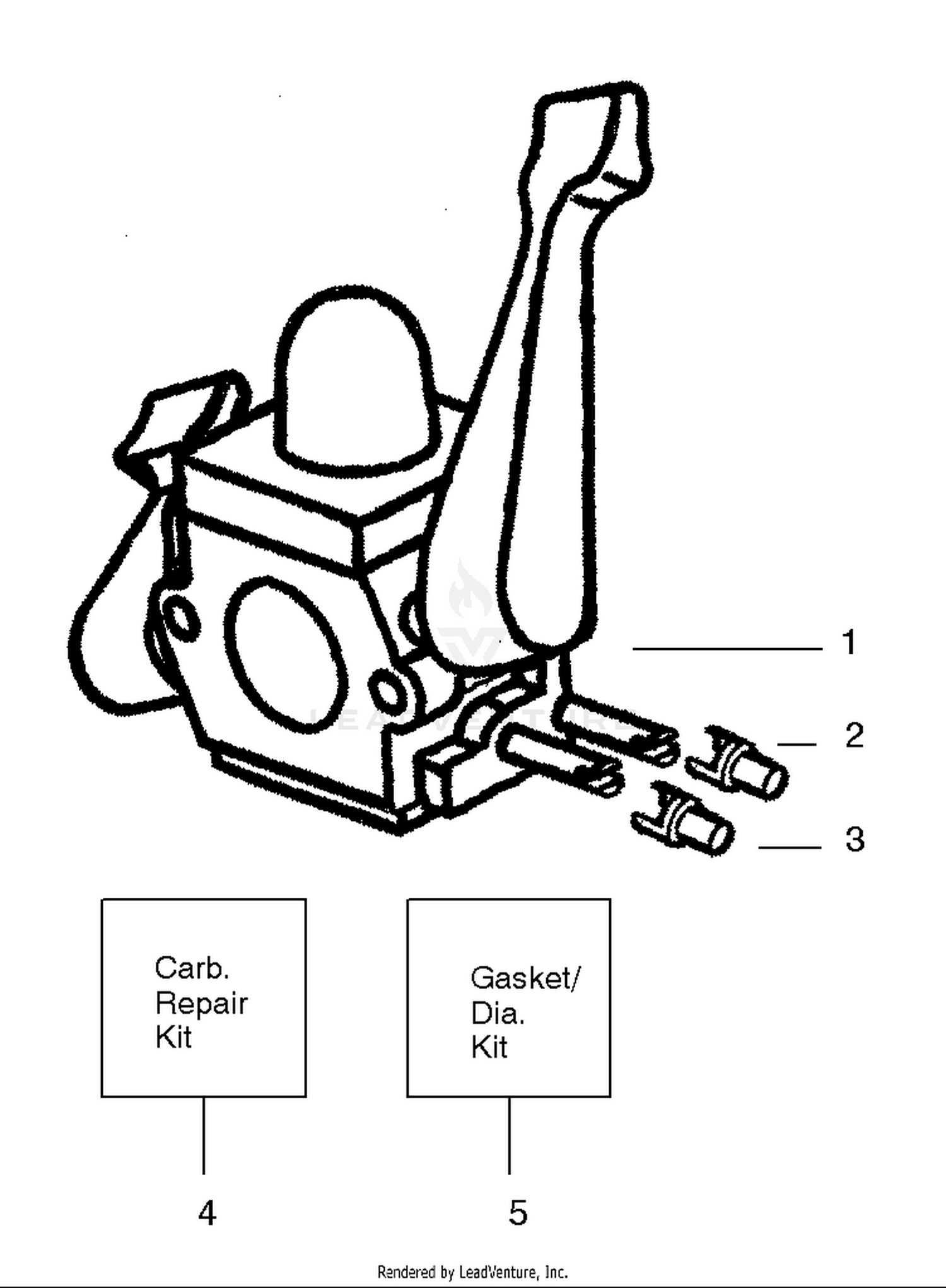

530071465 |
Assy-Carb. Zama (C1Q-W11) Price: $19.40 |
| 1 |
92-9727 |
HOC CAP ASM Price: $78.05 |
| 1A |
31296 |
CAMSHAFT Price: Call Us |
| 2 |
127-3740 |
CASTOR ARM ASM Price: $348.88 |
| 2 |
530038479 |
Cap-Limiter (high) brown Price: $1.99 |
| 2 |
631066 |
RET SPRING Price: Call Us |
| 3 |
530038478 |
Cap-Limiter (low) tan Price: $1.99 |
| 3 |
631036 |
SHUTTER Price: $1.20 |
| 3 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 4 |
530071475 |
Kit-Carb. Repair Price: $29.99 |
| 4 |
650506 |
SCREW Price: $0.87 |
| 4 |
69-1510 |
SPACER Price: $4.48 |
| 5 |
140-6306-01 |
CASTER FORK ASM This part replaces 104-0762-01. Price: $241.08 |
| 5 |
651025 |
SCREW This part replaces 650417. Price: $1.18 |
| 6 |
327-24 |
SCREW-HH Price: $7.99 |
| 6 |
630766 |
SPRING Price: $1.25 |
| 7 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 7C |
590535 |
STARTER ROPE This part replaces 30971. Price: $6.50 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
323-20 |
SCREW-HH Price: $1.28 |
| 9 |
630736 |
SHUTTER Price: $2.19 |
| 10 |
631562 |
ADJ SCREW Price: $3.74 |
| 10 |
93-9938 |
WHEEL ASM Price: $144.61 |
| 11 |
630738 |
SPRING Price: $1.25 |
| 11A |
630738 |
SPRING Price: $1.25 |
| 12 |
630739 |
WASHER Price: $1.25 |
| 12A |
630739 |
WASHER Price: $1.25 |
| 13 |
630740 |
O RING Price: $1.49 |
| 13A |
630740 |
O RING Price: $1.49 |
| 14 |
630737 |
ADJ SCREW Price: $3.95 |
| 15 |
630748 |
WELCH PLUG Price: $1.17 |
| 17 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 18 |
631049 |
SPRING Price: $1.20 |
| 19 |
630742 |
GASKET Price: $1.25 |
| 20 |
630932A |
INLET NEEDLE Price: $4.39 |
| 21 |
630750A |
GASKET This part replaces 630750. Price: $3.00 |
| 22 |
630978 |
DIAPHRAGM Price: $4.49 |
| 23 |
630751 |
COVER Price: $8.60 |
| 24 |
650545 |
SCREW Price: $1.20 |
| 26B |
631289 |
FUEL FITTING Price: Call Us |
| 29 |
630955 |
RETAINER--NLA Price: Call Us |
| 31 |
630735 |
SPRING Price: $1.25 |
