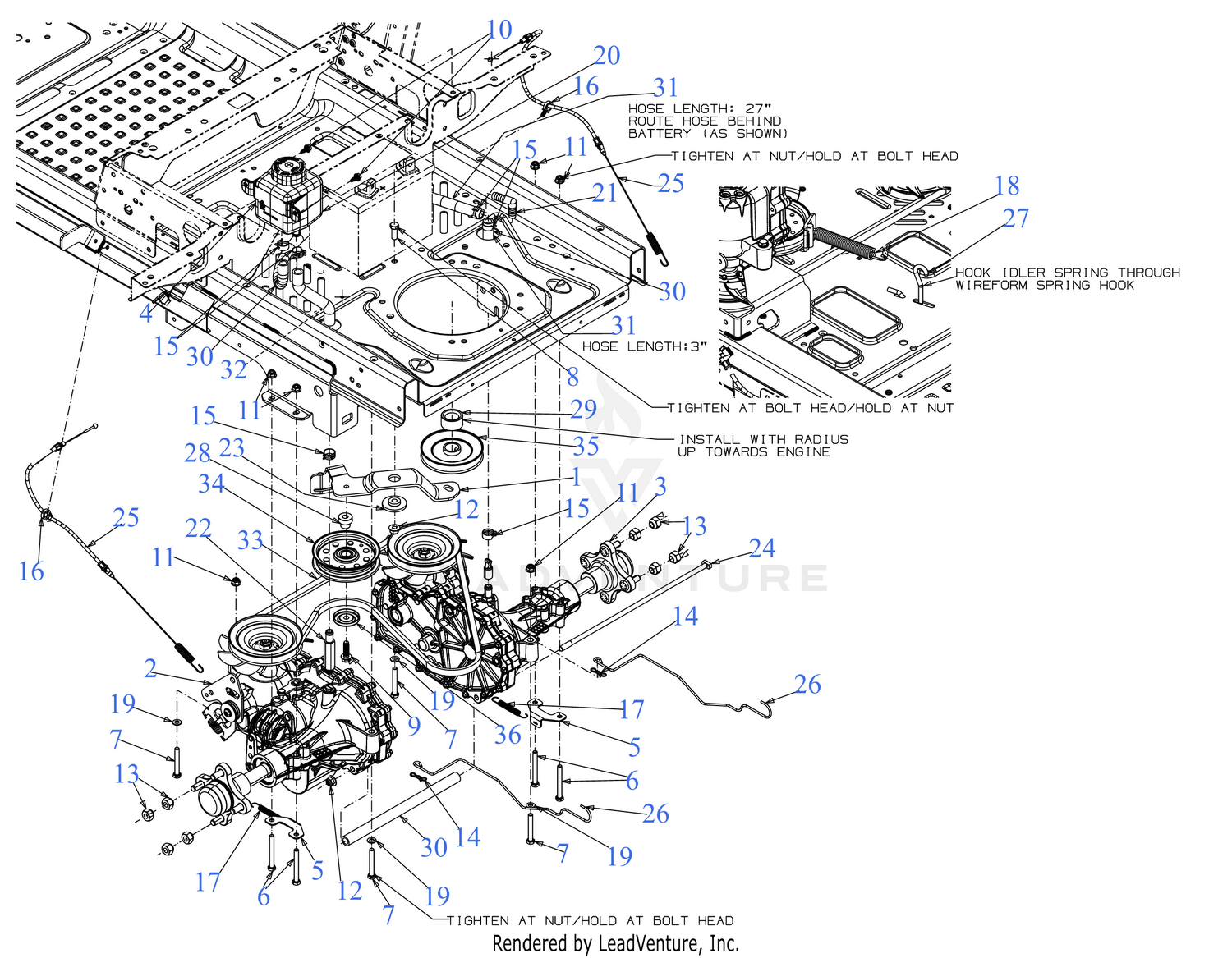

| Ref | Part Number | Description |
|---|
| 1 |
603Z05256 |
IDLER BRACKET ASSEMBLY This part replaces 903-05256. Price: $36.94 |
| 2 |
918-06020B |
TRANSMISSION (LH) Price: $1,578.18 |
| 3 |
918-06021B |
TRANSMISSION (RH) Price: $1,578.18 |
| 4 |
631-04286 |
HYDRAULIC TANK Price: $36.01 |
| 6 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 7 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 8 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 9 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 10 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-04065 |
NUT Price: $3.68 |
| 13 |
712-3050 |
LUG NUT 7/16-14 Price: $9.17 |
| 14 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 15 |
926-0324 |
FUEL HOSE CLAMP .75 Price: $6.28 |
| 16 |
726-3055 |
CABLE RETAINER CLIP Price: $6.06 |
| 17 |
732-04488 |
EXTENSION SPRING .38 OD x 3.25 LG Price: $5.32 |
| 18 |
732-05559 |
EXTENSION SPRING .75 DIA x 5.87 Price: $12.77 |
| 19 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 20 |
N/A |
OIL 20W50 |
| 22 |
737-05023 |
EXTENSION FITTING 9/16-18 Price: $16.91 |
| 23 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 24 |
738-04251A |
SUPPORT TUBE ROD Price: $12.54 |
| 25 |
946-05068 |
PARK BRAKE CABLE Price: $30.09 |
| 26 |
747-05657B |
HYDRO BYPASS ROD Price: $13.12 |
| 27 |
747-06074 |
IDLER SPRING HOOK Price: $20.19 |
| 28 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 29 |
748-05079 |
ENGINE PULLEY SPACER Price: $6.47 |
| 30 |
750-06147A |
TRANSMISSION SPACER .75OD x 11.31 Price: $20.70 |
| 31 |
751-0588-30 |
FUEL LINE 1/2"ID x 30" Price: $37.99 |
| 32 |
751-15123B |
EXPANSION TANK HOSE Price: $17.48 |
| 33 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
| 34 |
756-05042 |
IDLER PULLEY 4.25 DIA Price: $25.54 |
| 35 |
756-05623A |
TRANSMISSION DRIVE PULLEY This part replaces 756-05623. Price: $28.63 |
