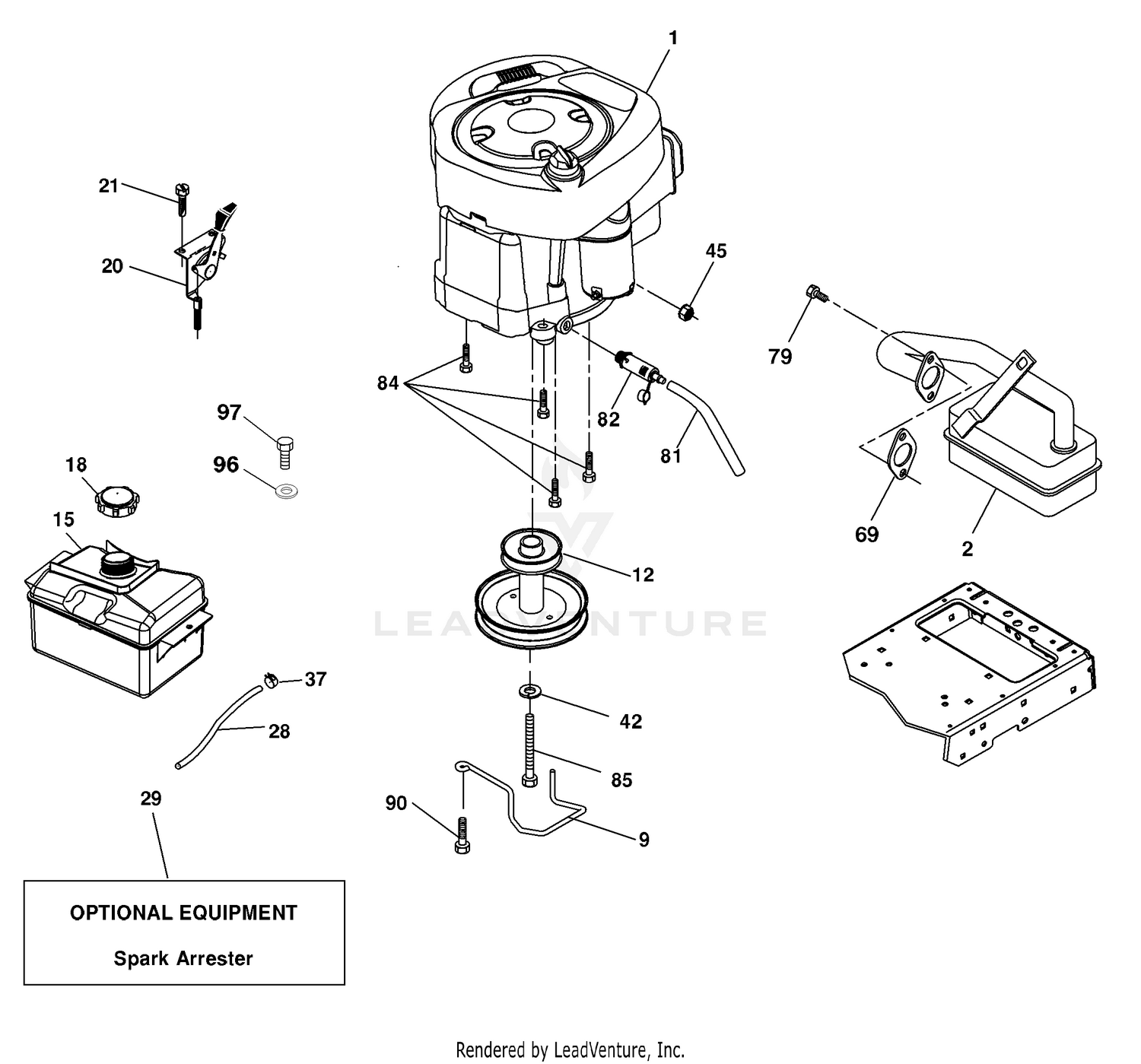

| Ref | Part Number | Description |
|---|
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 2 |
74-8080 |
WASHER This part replaces 94-3146. Price: $4.77 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 15 |
94-3147 |
DISCONTINUED Price: Call Us |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING This part replaces 94-3156. Price: $23.09 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
